1. Product Introduction

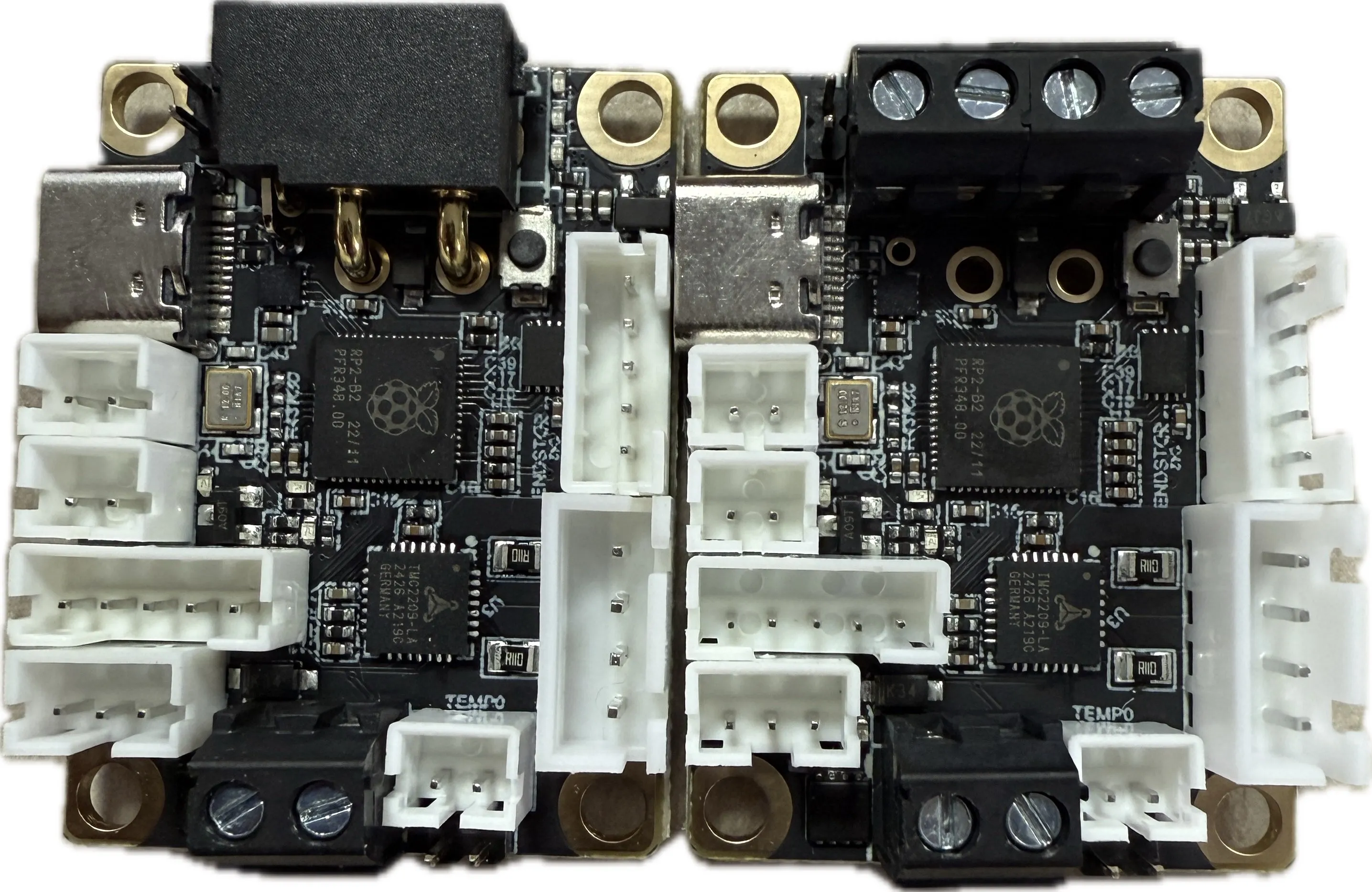

FLY TOOL-LITE-232 is a tool board designed by Guangzhou Meilun Electronic Technology Co., Ltd. for 3D printers. This tool board provides XT30/KF interfaces, allowing four wires to replace the complex wiring between the original motherboard and the print head, optimizing the layout. TOOL-LITE-232 is suitable for 36/42 stepper motors and integrates an RS232 transceiver, Type-C port, TMC2209 driver, LIS2DW acceleration sensor, two controllable fans, and other functions. This tool board is compatible with the Klipper firmware.
Loading...
4. Product Classification
| TOOL-LITE | TOOL-LITE-232 | TOOL-LITE-CAN |
|---|---|---|
| Klipper CANBus | ❌ | ✅ |
| Klipper RS232 | ✅ | ❌ |
| RRF CANBus | ❌ | ❌ |
| LIS2DW | ✅ | ✅ |
| MAX31865 | ❌ | ❌ |
1.1 Product Features
- Reserved Boot button, users can enter Boot mode via Type-C to update firmware
- Supports Klipper firmware
- Supports RS232 mode
- In RS232 mode, higher transmission rate and stronger stability are achieved.
- Temperature sensor support: NTC100K and PT1000 temperature sensors.
- Supports two controllable fans with a maximum output current of up to 1A
- Onboard LIS2DW acceleration sensor
- Reserved high-voltage probe interface, onboard 2209 driver, supporting multiple leveling sensors such as BLtouch, klicky, Voron Tap, PL08n, etc.
- Supports 12-24V voltage and 15A current input, with an enlarged heating element port rated at 10A
1.2 New Features
- New RS232 mode with higher transmission rate, stronger stability, and simpler debugging and use
- New 1-meter power/signal connection cable with twisted-pair design for stronger anti-interference performance
1.3 Product Parameters
- MCU: Raspberry Pi RP2040, Dual core ARM Cortex-M0+@133MHz
- Connection interface uses XT30 (2+2) connector supporting 15A current, peak 30A
- Firmware: Klipper
- Input voltage: DC12V-24V
- Logic voltage: DC3.3V
- Onboard sensor: LIS2DW
- Heating element interface: Heating element (HEAT0), 10A
- Expansion interface: High-voltage probe interface, EndStop
- Fan interface: Two DC controllable fans
- Motor driver: Onboard TMC2209
- Temperature sensor: One 100K NTC or PT1000 (TH0)
Product Precautions
| Output Port | Maximum current at 24V power supply | Maximum current at 12V power supply |
|---|---|---|
| Heating port | 5A | 2.5A |
| Fan port | 1A | 0.5A |
