Connect to WIFI

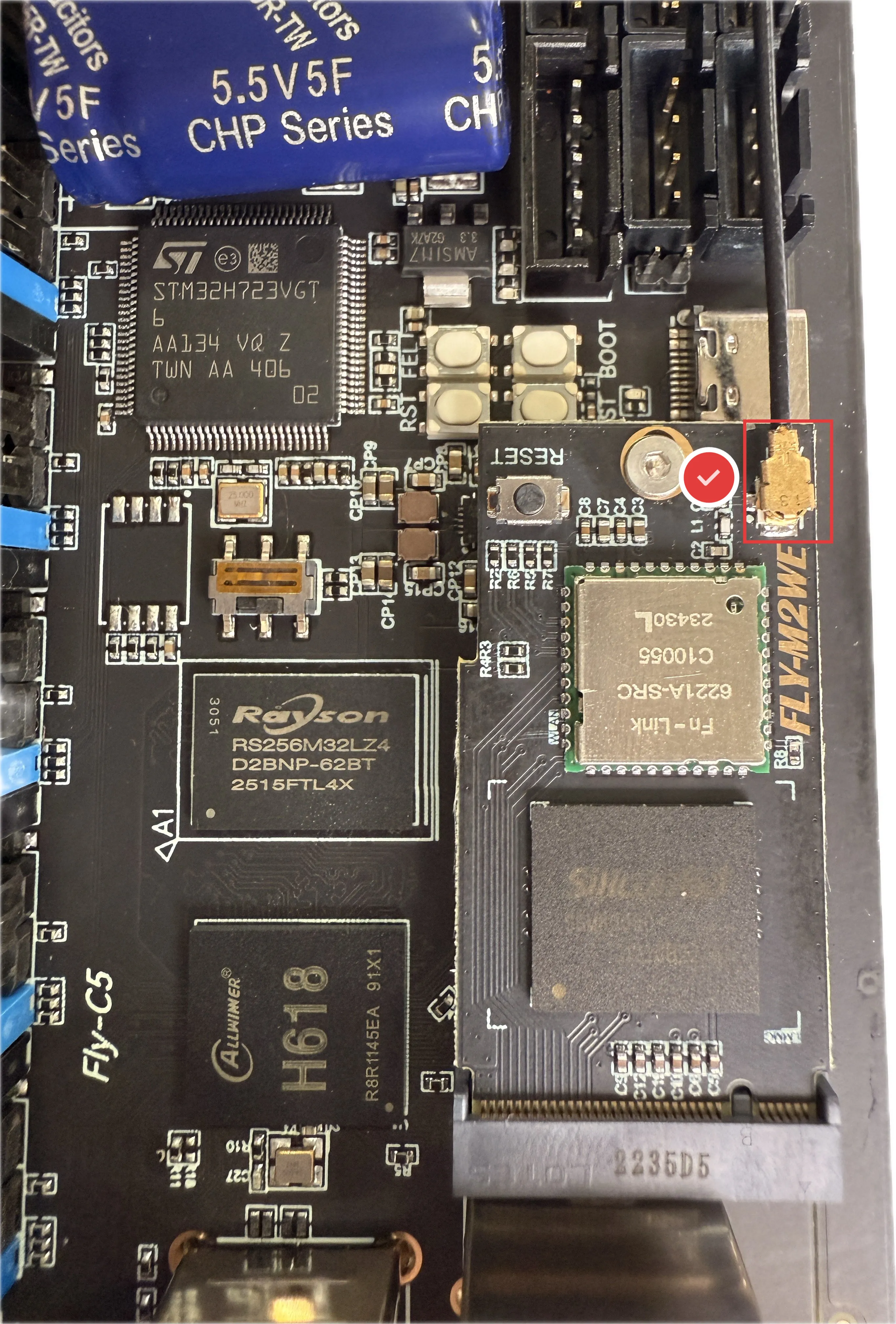

Install the antenna on C5

• The red arrow points to the WIFI antenna interface
• The WIFI antenna interface is ipex1
• Install the antenna on C5, otherwise it may fail to connect to the network due to poor signal

Connect to the host machine via serial port SSH

• Connect to the host machine via serial port: FLYOS-FAST Serial Port Connection to Host Machine SSH

FLYOS-FAST System Connection to WiFi

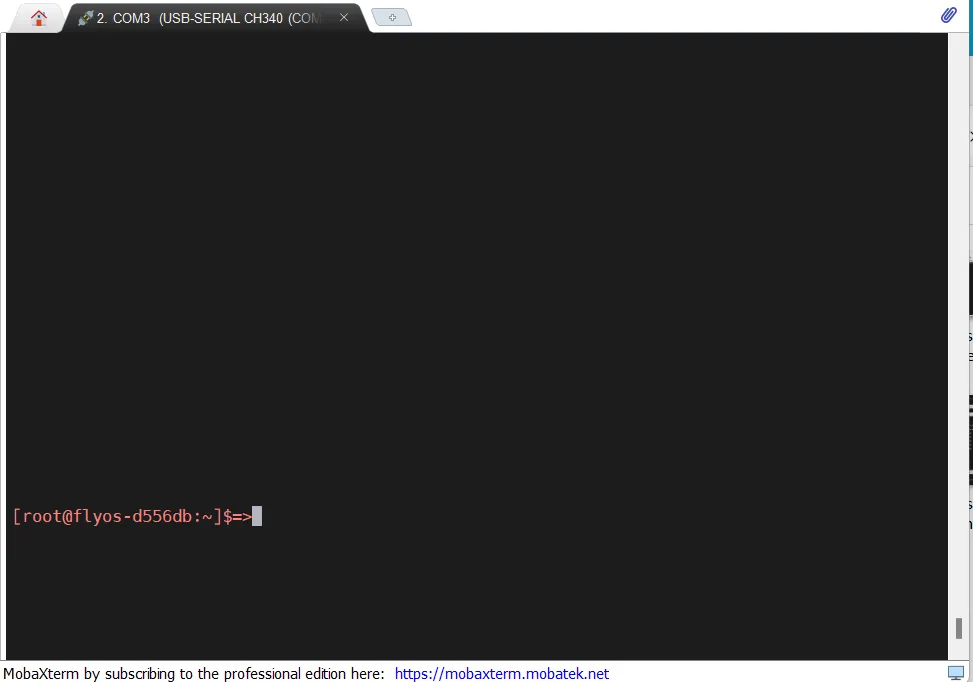

1. In SSH, input the command nmtui, press the Enter key, and an interface as shown in the figure below will pop up

2. Select the Activate a connection option, press the Enter key, and enter the next-level menu

Operation Instructions for the WiFi Configuration Page

• Please ensure that the keyboard input method is in half-width mode, i.e., English mode.
• The up key ↑ and down key ↓ on the keyboard are used to move the cursor up and down to select menu items.
• The confirm key Enter is used to check the menu or enter a sub-menu.
• The exit key ESC is used to return to the previous menu.

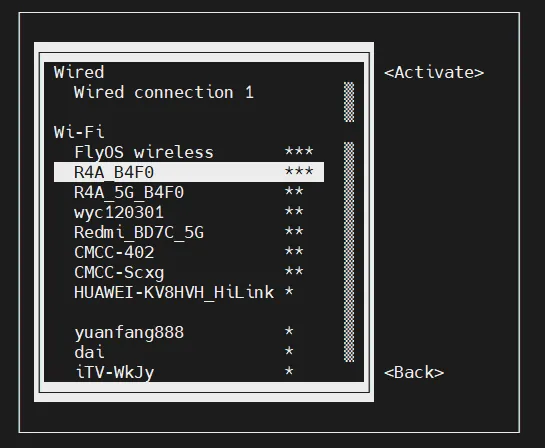

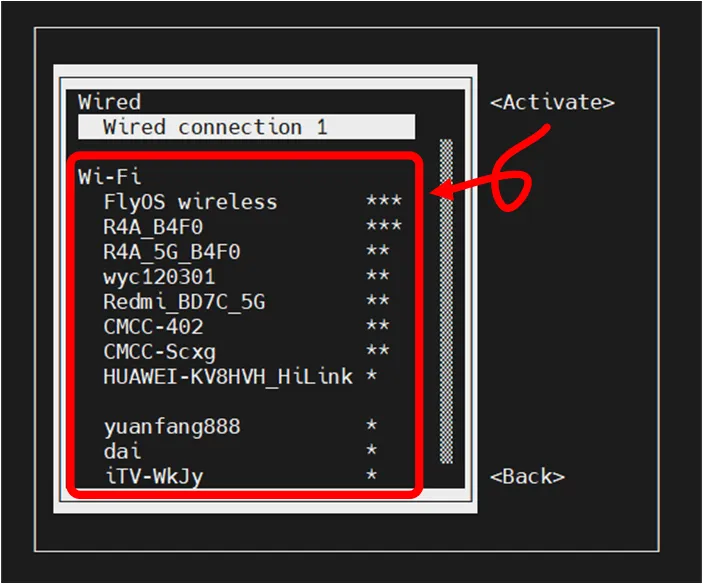

3. If your router's WiFi is working properly, you will see the WiFi list as shown in the figure below. The * after the WiFi name indicates signal strength

tip

• WiFi with Chinese names is not supported!!!
• Support for 2.4G WiFi, but whether support for 5G WiFi depends on whether the purchased WiFi module supports 5G WiFi
• M2WE supports 5G WiFi

4. Select the WiFi you need to connect to, press the Enter key, and enter the next-level menu

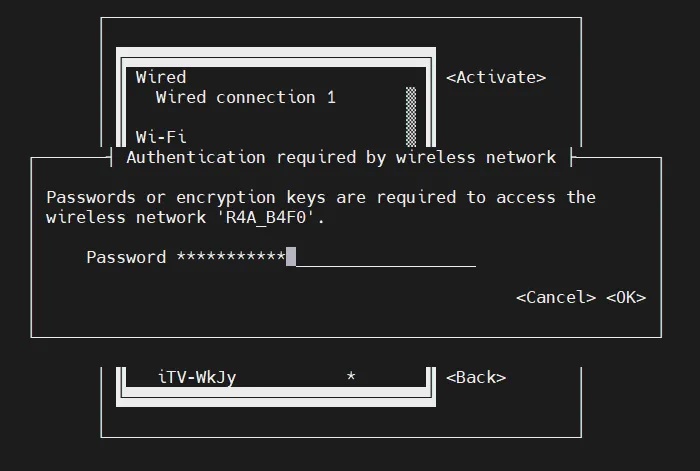

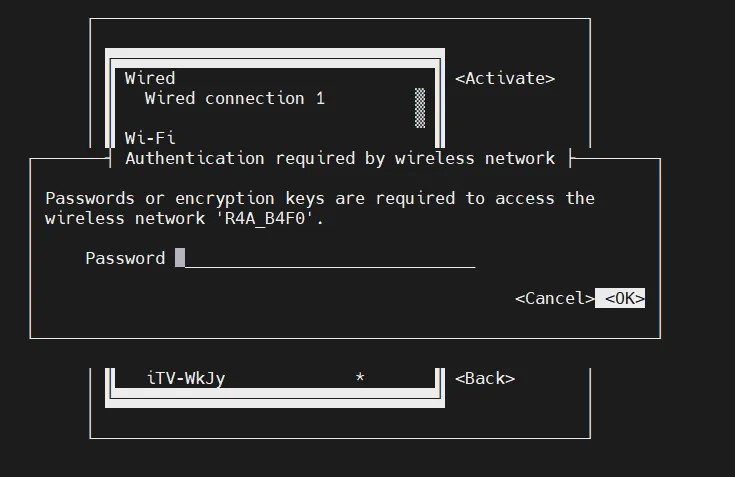

5. Then the following interface will pop up. Please correctly input your WiFi password, press the Enter key, and connect to WiFi

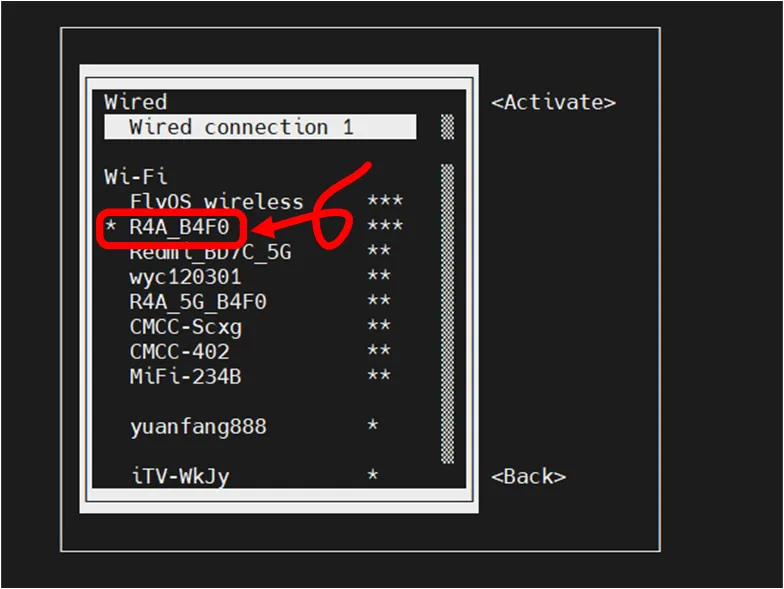

6. If the password is correct, the symbol * will appear before the corresponding WiFi, indicating that the WiFi connection is successful

7. Then press the Esc key twice to return to the command line interface

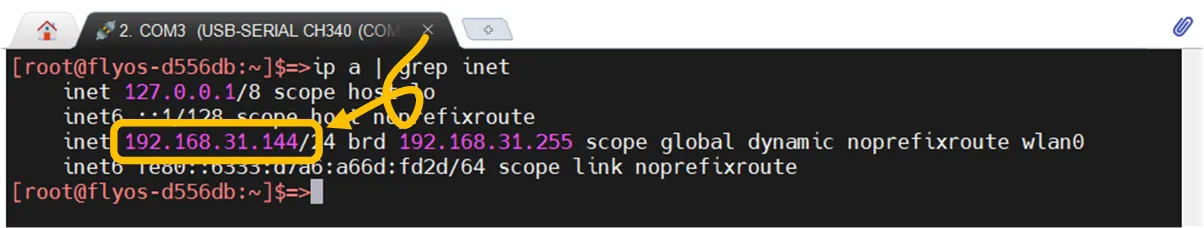

8. In SSH, input ip a | grep inet, press the Enter key, and find the IP in the same segment as your router in the returned content to access

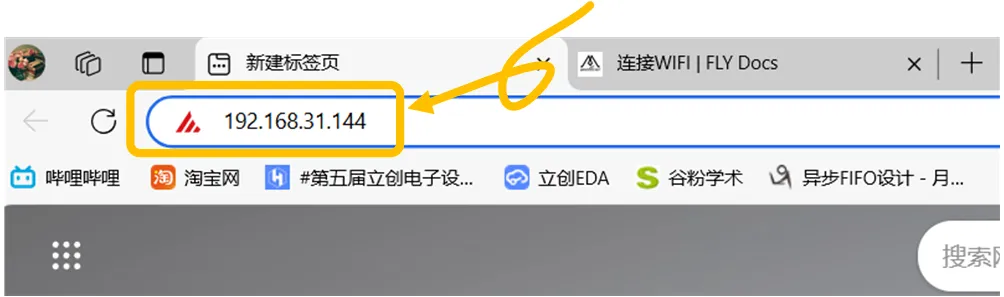

9. Open the browser, enter the IP of the host computer queried earlier in the search box, press the Enter key, and you can enter the fluidd/mainsail WEB control console

tip

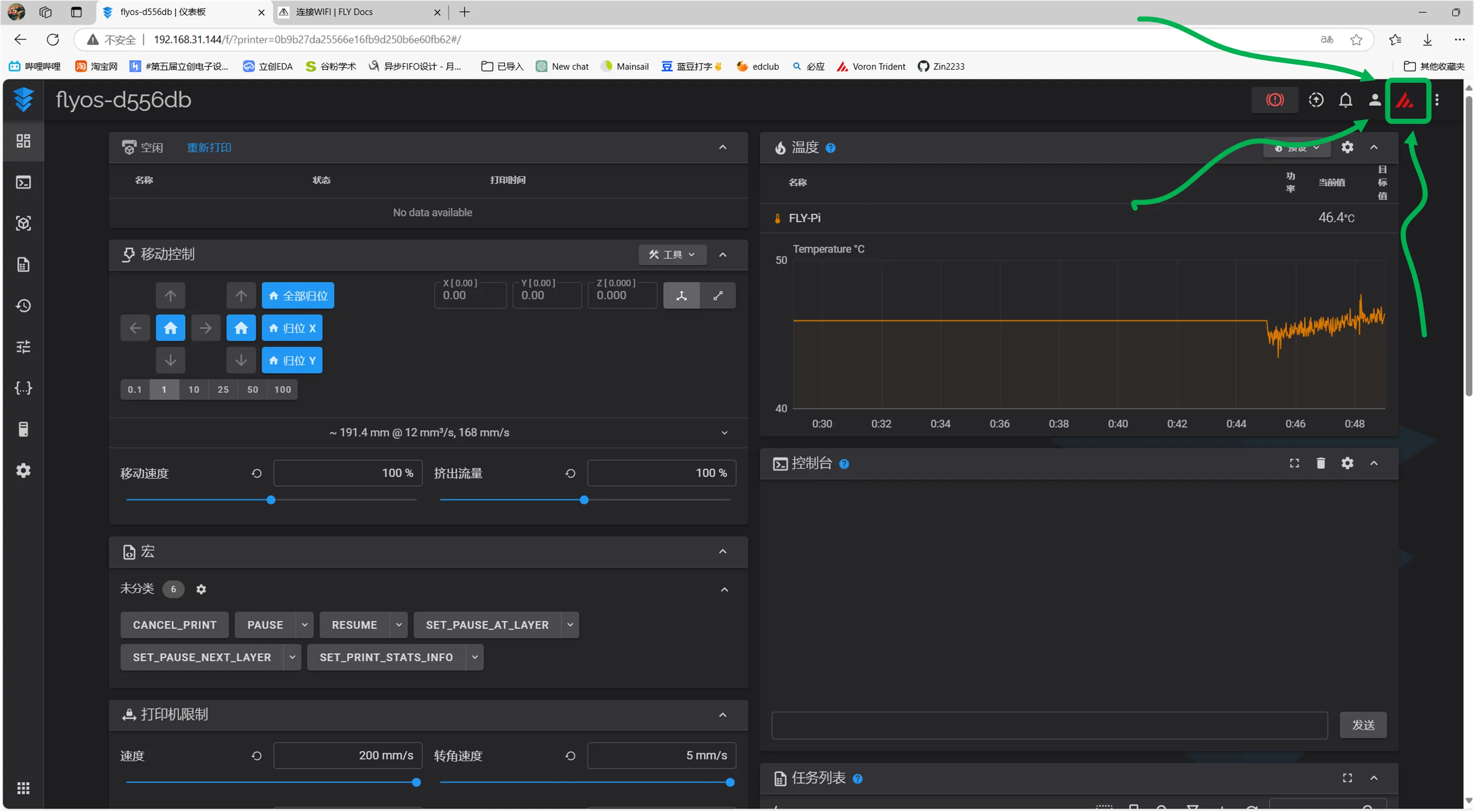

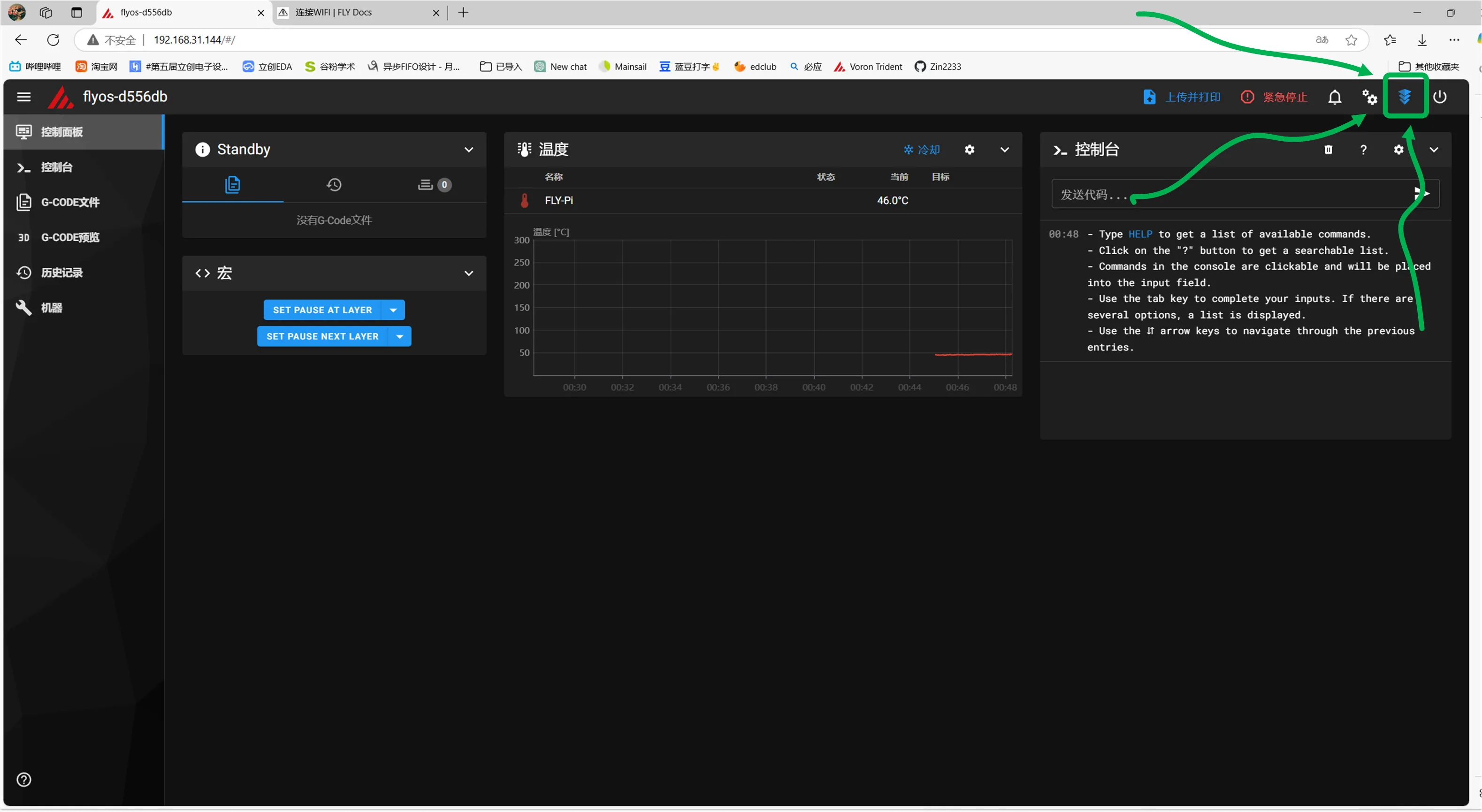

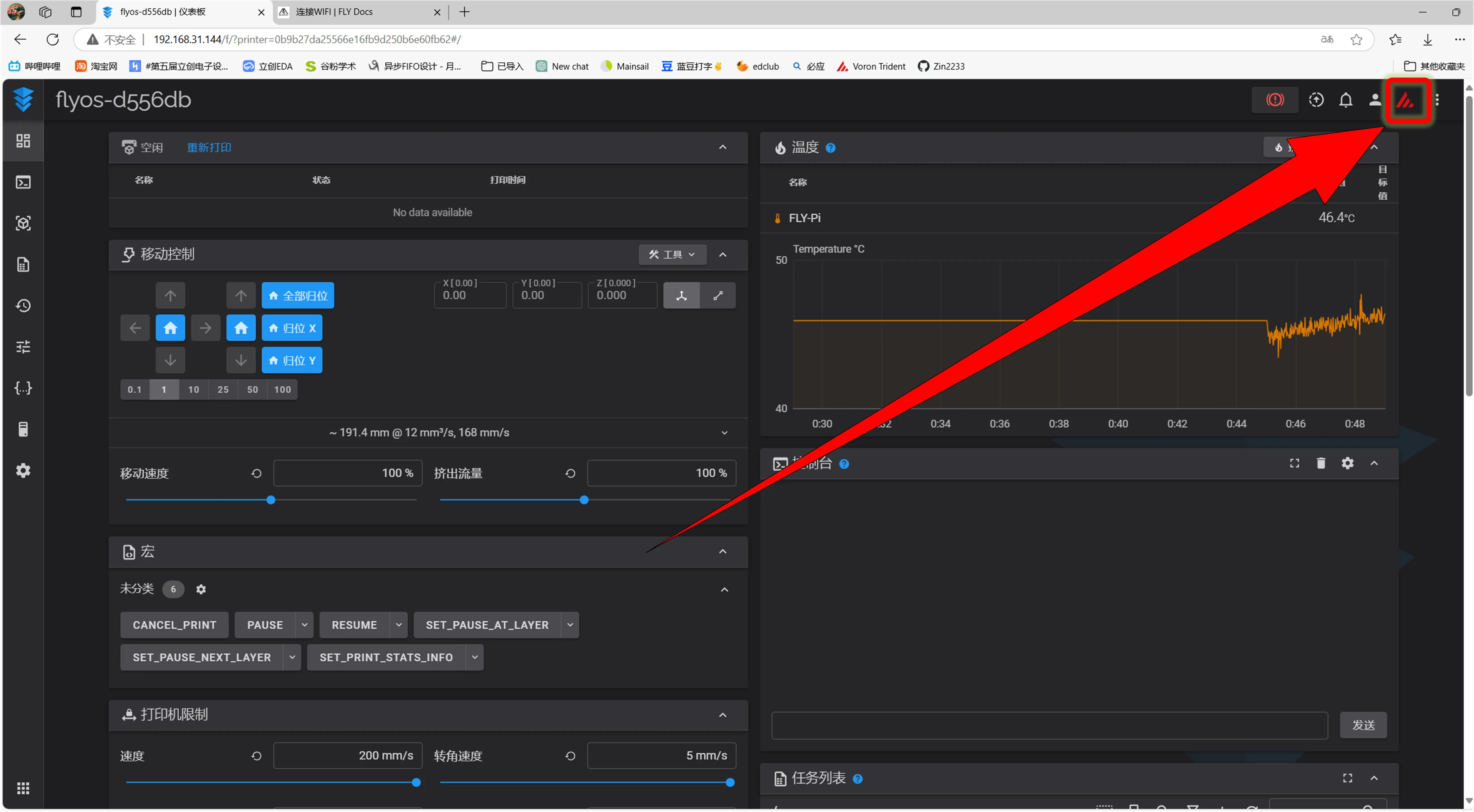

• In the FLYOS-FAST system, you can click the mainsail/fluidd icon in the upper right corner to switch between fluidd/mainsail WEB control consoles in real time!
