Firmware Compilation

Start Compilation

Brief Guide to Firmware Compilation

Notes

• Network: Ensure the host (Raspberry Pi, etc.) is connected to the internet.
• Login Method: Must log in via SSH over the network; serial port access is disabled.
• Input Method: Keep the keyboard in English half-width mode.

---

SSH Login and User Switching

Use tools like MobaXterm, PuTTY, etc., to SSH into the host.

Switch User:

• Standard System (Official Raspberry Pi system, etc.)
  Do not use root; switch to a regular user:

  su <username>

• FLY Host System (FlyOS-FAST system)
  Only supports login as root user (password: mellow)

---

Firmware Compilation Operation Guide

In the Klipper firmware configuration interface, only keyboard operations are supported; the mouse cannot be used.

Key	Function
↑ / ↓	Move cursor up/down to select menu items
Enter / Space	Confirm selection, check options, or enter submenus
ESC	Return to the previous menu
Q	Exit the configuration interface
Y	If prompted when exiting, press Y to save the configuration

Starting Firmware Compilation

Below is an introduction on how to compile the firmware:

1. Connect via SSH, enter the following command, and press Enter:

   cd ~/klipper && rm -rf ~/klipper/.config && rm -rf ~/klipper/out && make menuconfig

   Here, rm -rf ~/klipper/.config && rm -rf ~/klipper/out is used to clear previous compilation configurations and firmware; make menuconfig is used to open the Klipper firmware configuration interface.

2. Follow the order below to set each item one by one, completing each before moving on to the next.

   1启用 Enable extra low-level configuration options

   (Top)

   Klipper Firmware Configuration

   [*] Enable extra low-level configuration options

   [Space/Enter] Toggle/enter[?] Help[/] Search

   [Q] Quit (prompts for save)[Esc] Leave menu

   2Micro-controller Architecture 选择 Raspberry Pi RP2040/RP235x

   (Top)

   Klipper Firmware Configuration

   [*] Enable extra low-level configuration options

   Micro-controller Architecture (Raspberry Pi RP2040/RP235x) --->

   [Space/Enter] Toggle/enter[?] Help[/] Search

   [Q] Quit (prompts for save)[Esc] Leave menu

   3Processor model 选择 rp2040

   (Top)

   Klipper Firmware Configuration

   [*] Enable extra low-level configuration options

   Micro-controller Architecture (Raspberry Pi RP2040/RP235x) --->

   Processor model (rp2040) --->

   [Space/Enter] Toggle/enter[?] Help[/] Search

   [Q] Quit (prompts for save)[Esc] Leave menu

   4Bootloader offset 选择 No bootloader

   (Top)

   Klipper Firmware Configuration

   [*] Enable extra low-level configuration options

   Micro-controller Architecture (Raspberry Pi RP2040/RP235x) --->

   Processor model (rp2040) --->

   Bootloader offset (No bootloader) --->

   [Space/Enter] Toggle/enter[?] Help[/] Search

   [Q] Quit (prompts for save)[Esc] Leave menu

   5Communication Interface 选择 USBSERIAL

   (Top)

   Klipper Firmware Configuration

   [*] Enable extra low-level configuration options

   Micro-controller Architecture (Raspberry Pi RP2040/RP235x) --->

   Processor model (rp2040) --->

   Bootloader offset (No bootloader) --->

   Flash chip (W25Q080 with CLKDIV 2) --->

   Communication Interface (USBSERIAL) --->

   [Space/Enter] Toggle/enter[?] Help[/] Search

   [Q] Quit (prompts for save)[Esc] Leave menu

   6启用 Optimize stepper code for 'step on both edges'

   (Top)

   Klipper Firmware Configuration

   [*] Enable extra low-level configuration options

   Micro-controller Architecture (Raspberry Pi RP2040/RP235x) --->

   Processor model (rp2040) --->

   Bootloader offset (No bootloader) --->

   Flash chip (W25Q080 with CLKDIV 2) --->

   Communication Interface (USBSERIAL) --->

   USB ids --->

   [*] Optimize stepper code for 'step on both edges'

   [Space/Enter] Toggle/enter[?] Help[/] Search

   [Q] Quit (prompts for save)[Esc] Leave menu

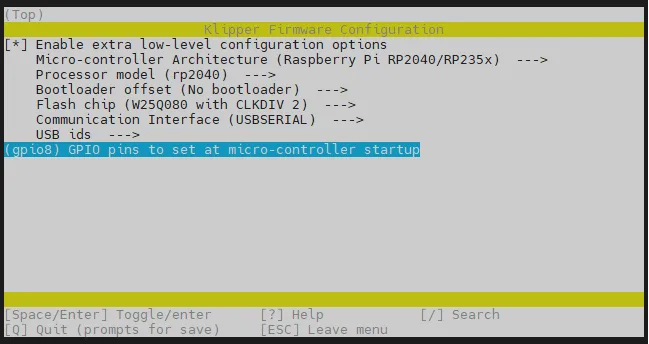

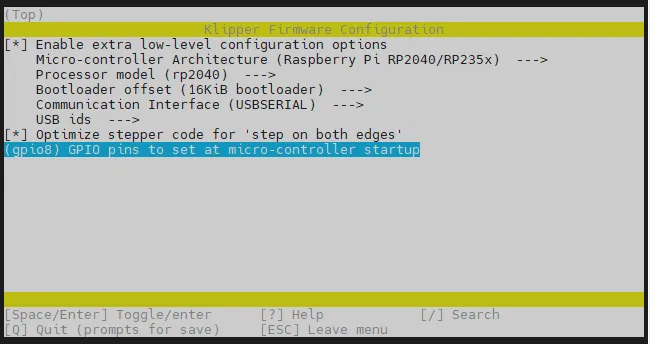

   7GPIO pins to set at micro-controller startup 设置为以下内容

   Loading...

   (Top)

   Klipper Firmware Configuration

   [*] Enable extra low-level configuration options

   Micro-controller Architecture (Raspberry Pi RP2040/RP235x) --->

   Processor model (rp2040) --->

   Bootloader offset (No bootloader) --->

   Flash chip (W25Q080 with CLKDIV 2) --->

   Communication Interface (USBSERIAL) --->

   USB ids --->

   [*] Optimize stepper code for 'step on both edges'

   (gpio8) GPIO pins to set at micro-controller startup

   [Space/Enter] Toggle/enter[?] Help[/] Search

   [Q] Quit (prompts for save)[Esc] Leave menu

   8按 Q 键退出配置界面

   (Top)

   Klipper Firmware Configuration

   [*] Enable extra low-level configuration options

   Micro-controller Architecture (Raspberry Pi RP2040/RP235x) --->

   Processor model (rp2040) --->

   Bootloader offset (No bootloader) --->

   Flash chip (W25Q080 with CLKDIV 2) --->

   Communication Interface (USBSERIAL) --->

   USB ids --->

   [*] Optimize stepper code for 'step on both edges'

   (gpio8) GPIO pins to set at micro-controller startup

   [Space/Enter] Toggle/enter[?] Help[/] Search

   [Q] Quit (prompts for save)[Esc] Leave menu

   GPIO 状态说明：GPIO state at micro-controller startup 是 FLYOS-Klipper 的扩展功能，本页面仅作说明。普通固件编译请保持 Not set，无需进入或修改；如需了解全部 GPIO 启动状态，请查看 GPIO 启动状态使用说明。

   9出现 Save configuration 时按 Y 保存配置

   Quit

   Save configuration?

   (Y)es(N)o(C)ancel

3. After completing the last two steps above, press Q to exit the configuration interface, then press Y to save the configuration.

4. Return to the command line and enter the following command, then press Enter to start compiling:

   make -j4

   root@flyos-11e5f8 ~/klipper # make -j4

   Compiling out/src/rp2040/bootrom.o

   Compiling out/src/rp2040/usbserial.o

   Compiling out/src/generic/usb_cdc.o

   Compiling out/src/rp2040/chipid.o

   Compiling out/src/rp2040/hard_pwm.o

   Compiling out/src/rp2040/spi.o

   Compiling out/src/rp2040/i2c.o

   Preprocessing out/src/rp2040/rpxxxx_link.ld

   Building out/compile_time_request.o

   Version: XXXX

   Linking out/klipper.elf

   Creating uf2 file out/klipper.uf2

   终端末尾出现 Linking out/klipper.elf 和 Creating uf2 file out/klipper.uf2，即表示编译成功。 实际编译时，部分 Compiling 行和 Version 会随 Klipper 与系统版本变化。

Enter Flashing Mode

Tip

The circled part is the BOOT button.

• To enter flashing mode, the motherboard must be fully powered off. Press the BOOT button while connecting one end of the data cable to the motherboard and the other end to the host computer.
  Loading...

Flash the Firmware

• Please note that the current tool board is in firmware flashing mode, and only firmware with the .uf2 suffix can be flashed.

• Use the following command to flash the firmware onto the tool board:

  cd && cd ~/klipper/
  make flash FLASH_DEVICE=2e8a:0003

  Tip

  If this is the first flash after writing the system on the host computer, a prompt similar to the one circled in red in the image below may appear—some red hints are normal and do not indicate an error.

  Loading...

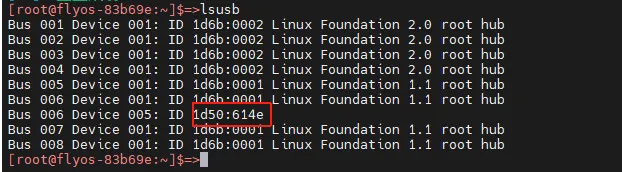

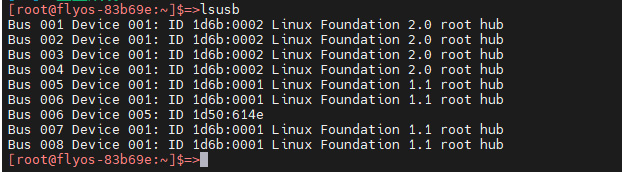

Confirm Whether the Firmware Is Booting

• If the firmware boots successfully, the LED will light up.

Loading...
