SHT36 V3 Onboard DIP Switches and Firmware Instructions
Firmware Instructions
tip
- Pre-flashed with Katapult (CAN) firmware at 1M baud rate.
- For other configurations (e.g., 500K CAN baud rate), you can flash it yourself.
- Katapult Firmware Flashing
Firmware Flashing Steps and DIP Switch Settings
1. CAN Firmware (Klipper)
-
DIP Switch Settings:
-
Preparation for Flashing: Before flashing, ensure the CAN cable is connected between the tool board and the mainboard, and 12V-24V power is supplied.
2. RS232 Firmware (Klipper)
- DIP Switch Settings:
- Flashing Steps: First, flash the compiled firmware via the tool board's USB port, then connect the CAN cable.

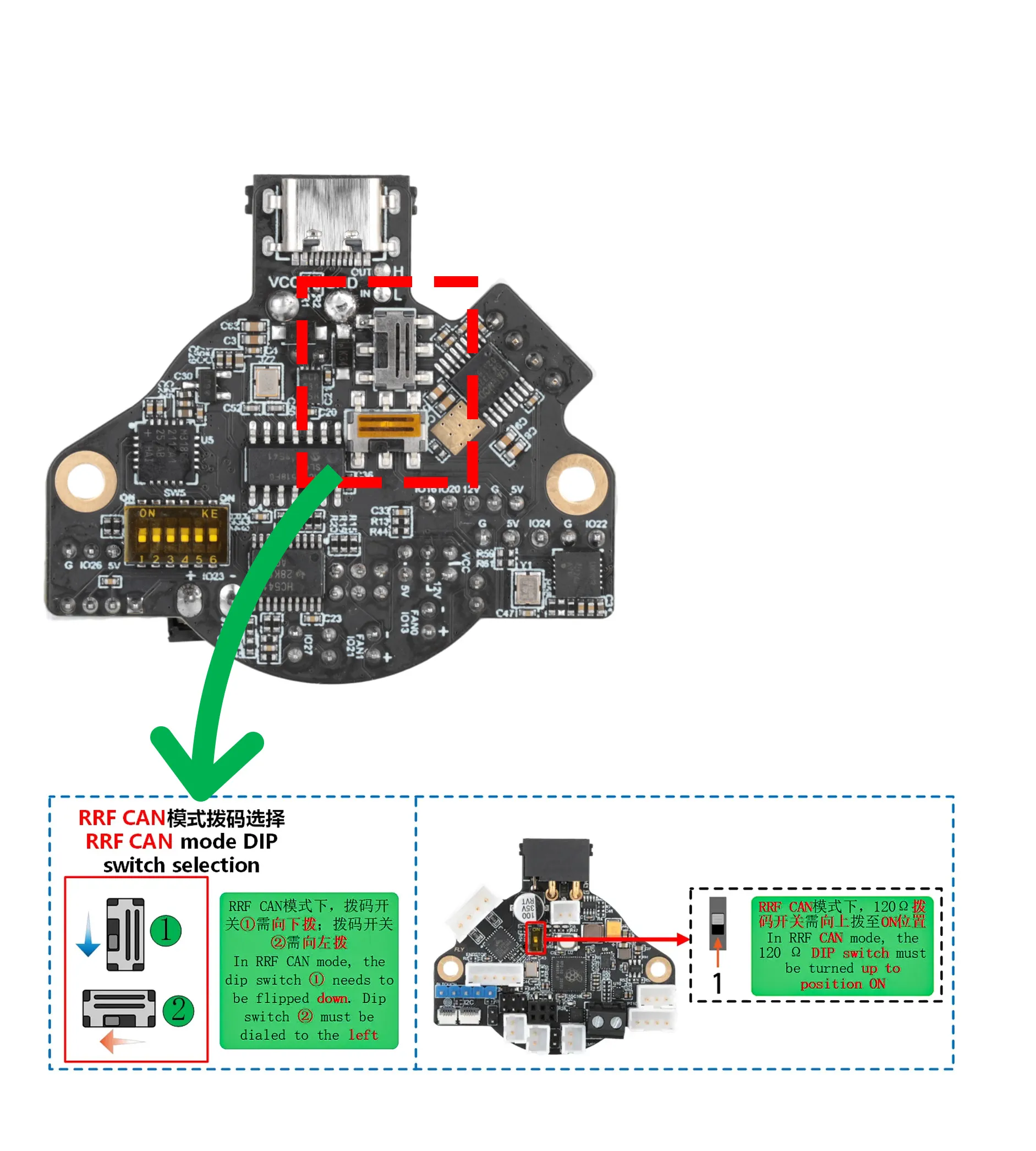

3. RRF-CAN Firmware
- DIP Switch Settings:
- Flashing Steps: Flash the RRF firmware via the tool board's USB port, then connect the CAN cable.
