Screen Wiring and Configuration

Screen Wiring

TFT Resistive Screen Wiring

TFT Resistive Screen Wiring

tip

• The package of the TFT screen will come with two FPC cables, one is 14P (the narrow one) and the other is 16P (the wide one)
• The resistive screen must use the 14P (the narrow one) !!!

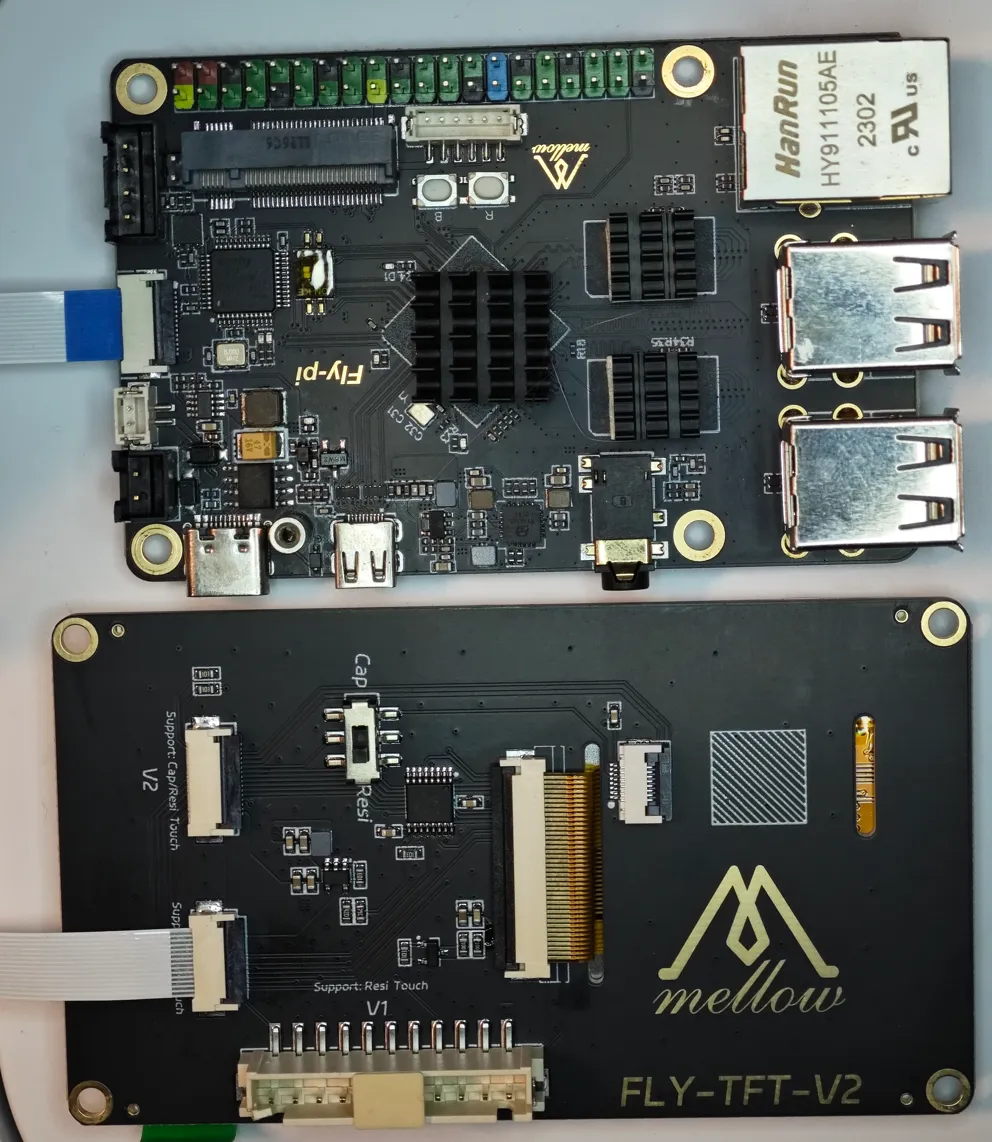

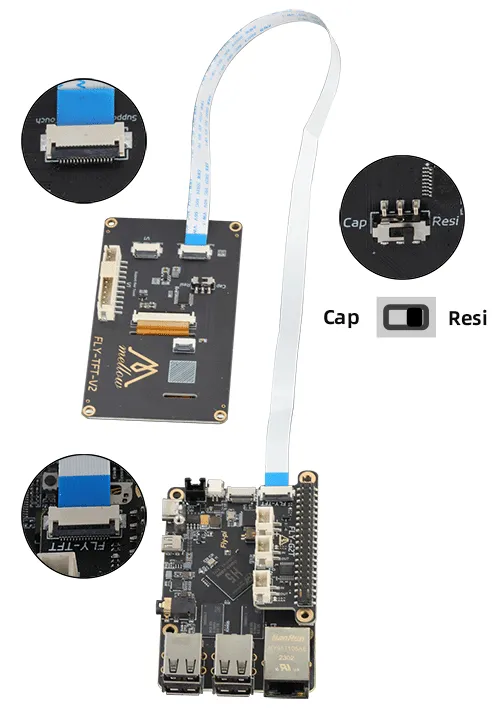

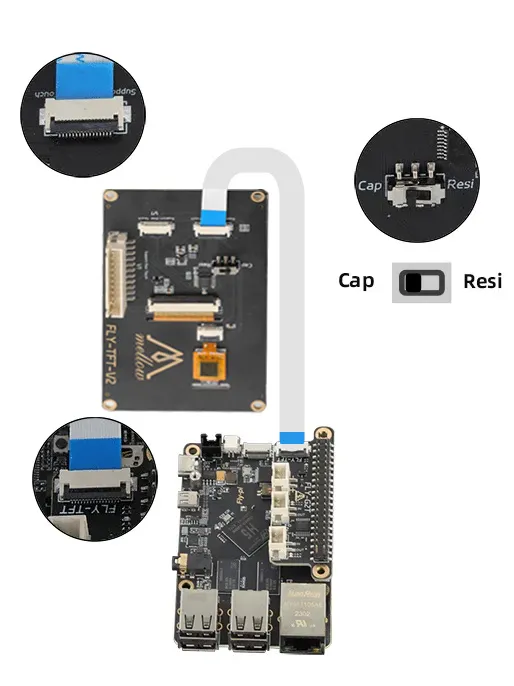

1. FLY-Pi V2 TFT Resistive Screen Wiring

HDMI Wiring

HDMI Wiring

1. FLY-HDMI-LCD5 Screen Wiring

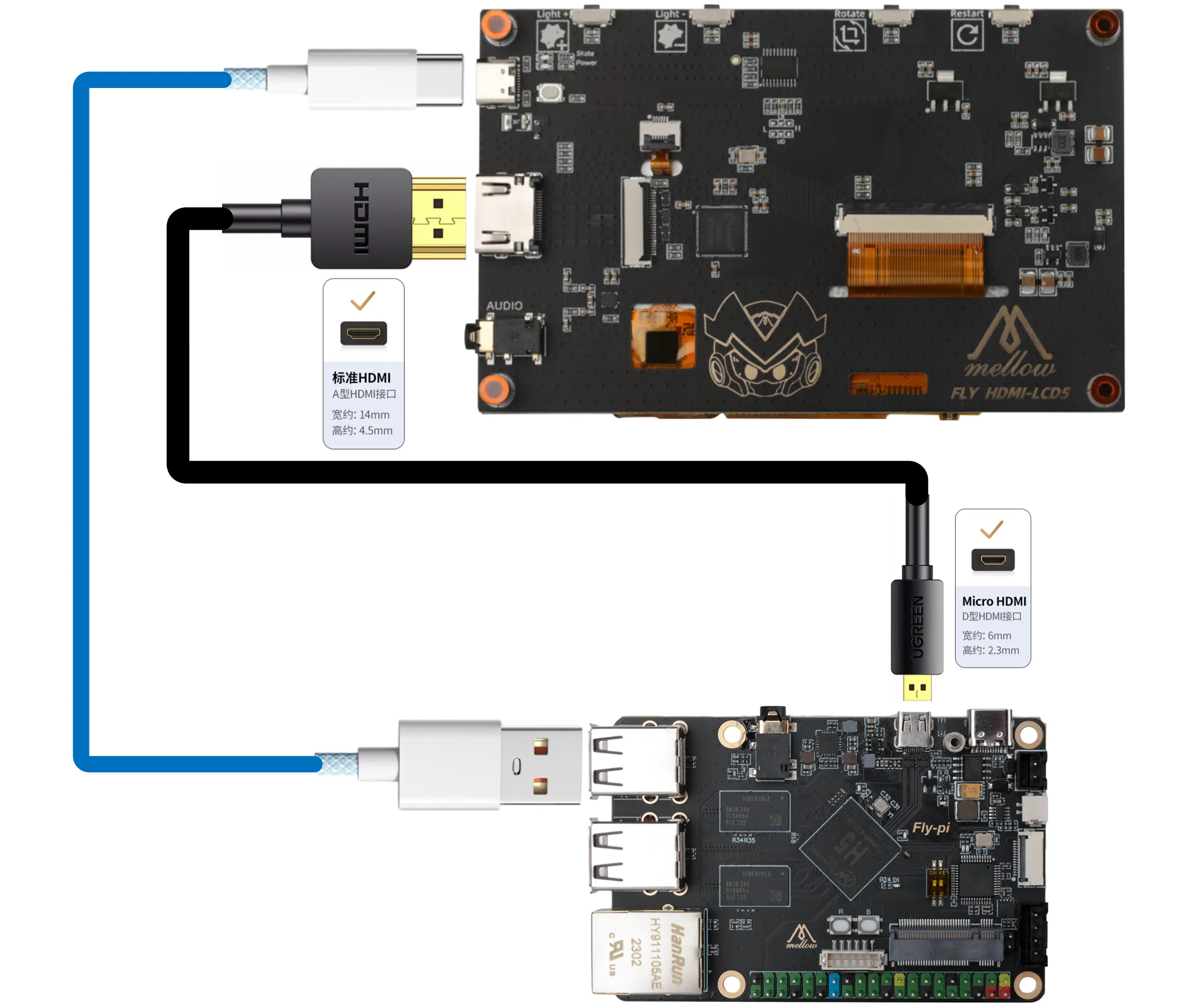

Wiring Method One

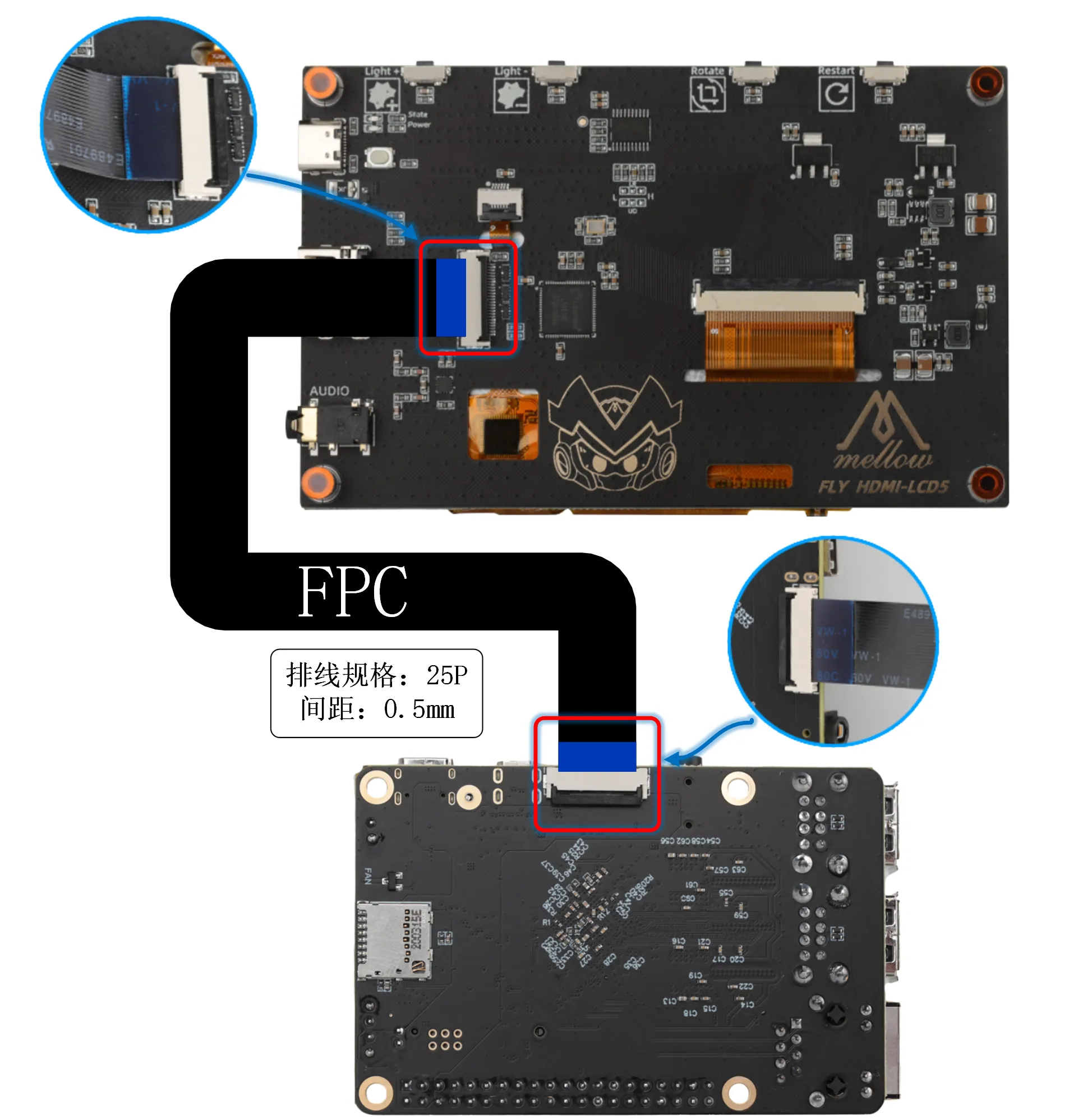

Wiring Method Two

---

Screen Configuration

FLYOS-FAST System - TFT Screen Configuration

FLYOS-FAST System - TFT Screen Configuration

1. Open the device IP address in the browser, for example: http://192.168.6.110/

   In fluidd, follow the picture below to uncheck -> filter hidden files and folders.

   In mainsail, follow the picture below to check -> show hidden files.

2. At this point, you can see the .flyos-config folder, enter this folder and there will be a sys-config.conf file.

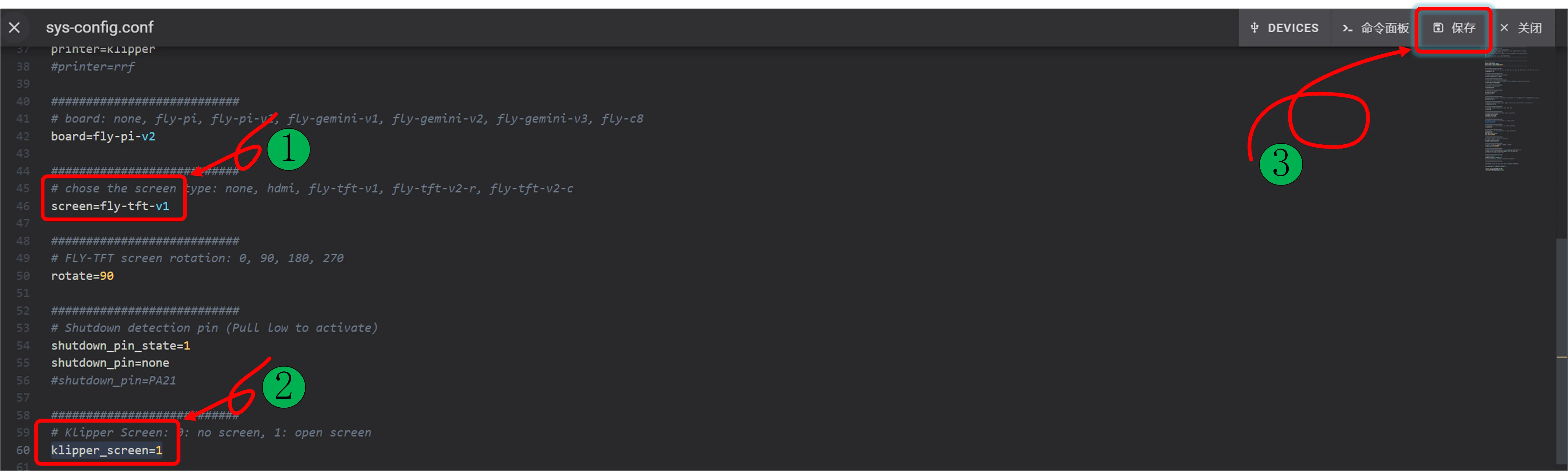

3. Open the sys-config.conf file, modify the required configuration items and then save -> close it.

warning

• The resistive screen configuration is fly-tft-v1, please note that there must not be any spaces after the = sign, please confirm that the DIP switch on the back of the screen is set to Resi
• The capacitive screen configuration is fly-tft-v2-c, please note that there must not be any spaces after the = sign, please confirm that the DIP switch on the back of the screen is set to Cap
• Note: The format of the configuration items in the sys-config.conf file is key=value, do not modify the format privately!!! Otherwise, the configuration will not take effect!!!

4. After modification and saving, restart the system for it to take effect.

FLYOS-Armbian System - TFT Screen Configuration

FLYOS-Armbian System - TFT Screen Configuration

info

• Connect the host machine to WiFi and obtain the host machine's IP address, then enter IP+:9999 in the browser to access FLY TOOLS for screen-related configurations
• For example, if your host machine's IP address is 192.168.6.110, you need to enter 192.168.6.110:9999 in the browser

1. Open FLY TOOLS, follow the steps shown in the figure below, enable Klipper Screen, select the screen model, click the pink button in the lower right corner save configuration, and restart the host machine to take effect!

warning

• Resistive screen selection: fly-tft-v1, please confirm that the DIP switch on the back of the screen is set to Resi
• Capacitive screen selection: fly-tft-v2-c, please confirm that the DIP switch on the back of the screen is set to Cap

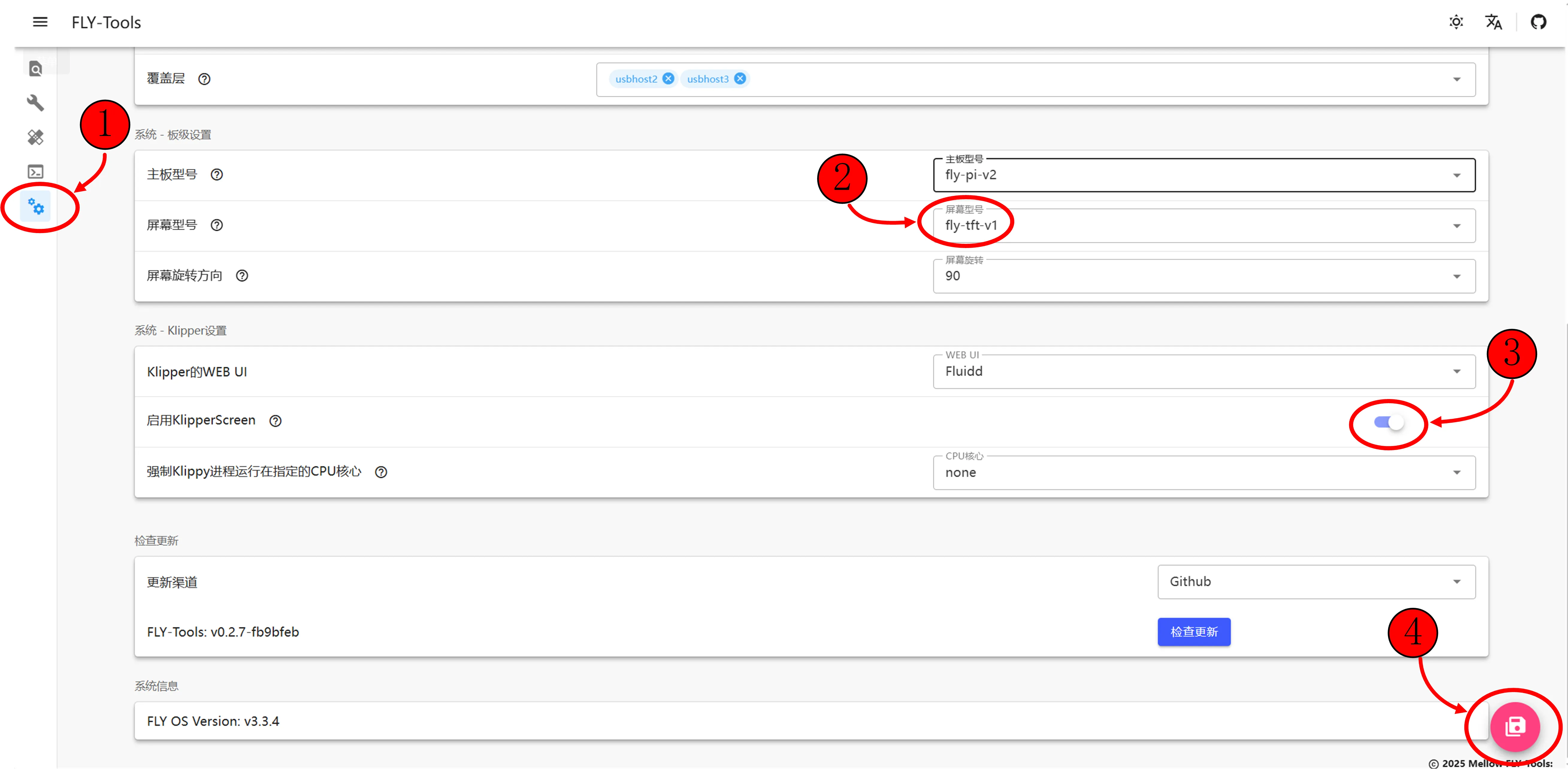

Resistive screen:

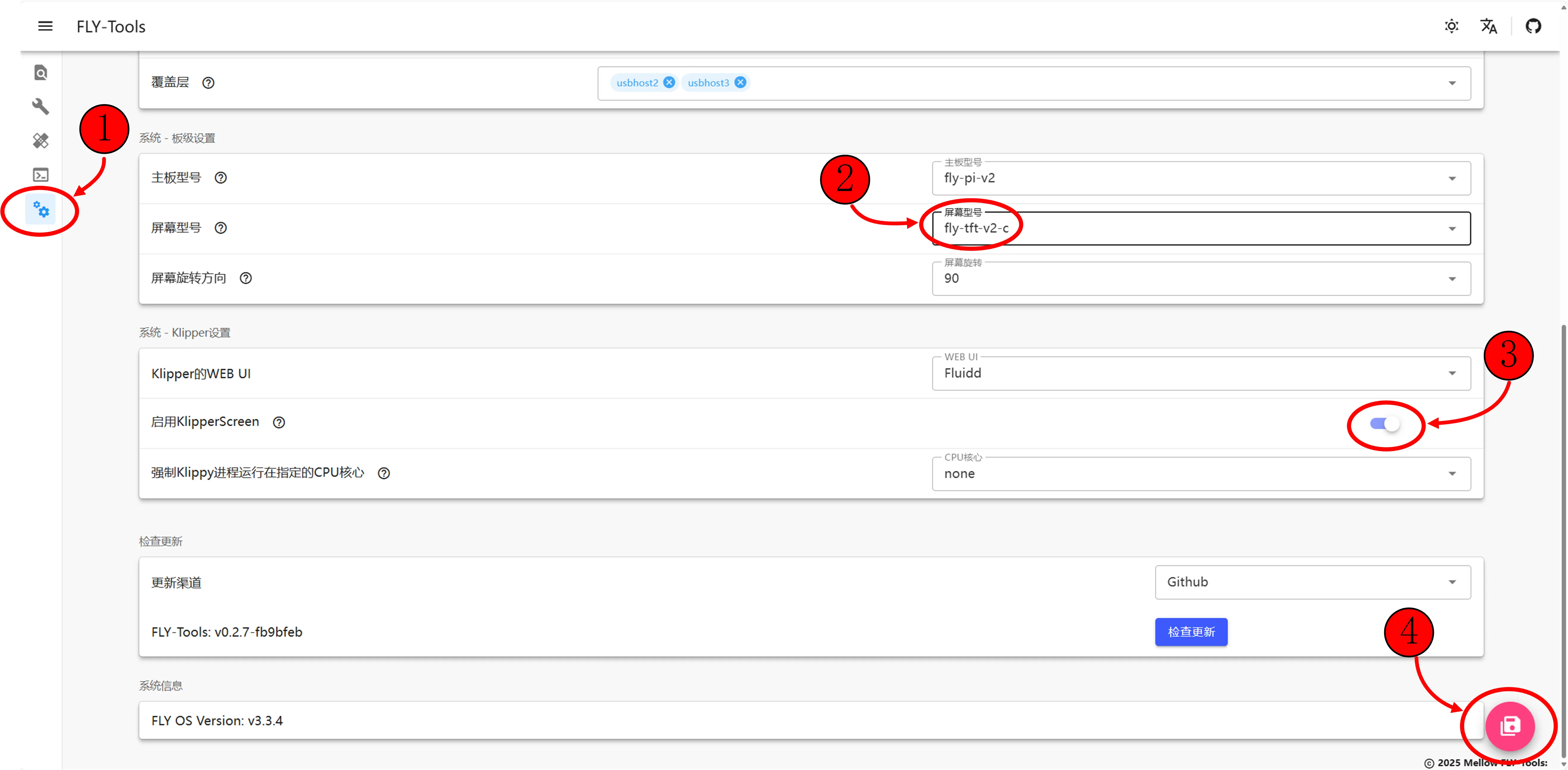

Capacitive screen:

2. After saving the configuration, restart the host machine to take effect!

---

2. You can also configure directly via SSH command line (this method is not recommended!)

   • For the resistive screen, use the following command to configure as fly-tft-v1, please confirm that the DIP switch on the back of the screen is set to Resi

   sudo sed '11s/screen=none/screen=fly-tft-v1/' -i /boot/FlyOS-Env.txt

   • For the capacitive screen, use the following command to configure as fly-tft-v2-r, please confirm that the DIP switch on the back of the screen is set to Cap

   sudo sed '11s/screen=none/screen=fly-tft-v2-r/' -i /boot/FlyOS-Env.txt

   • Use the following command to check if the modification is successful

   sed -n '9,11p' /boot/FlyOS-Env.txt | grep -v '^#'

   • To change the resistive screen to the capacitive screen, use the following command

   sudo sed -i '11{/^#/!s/screen=fly-tft-v1/screen=fly-tft-v2-r/}' /boot/FlyOS-Env.txt

   • To change the capacitive screen to the resistive screen, use the following command

   sudo sed -i '11{/^#/!s/screen=fly-tft-v2-r/screen=fly-tft-v1/}' /boot/FlyOS-Env.txt

---
