Screen Wiring and Configuration

info

• FLY-TOOLS needs to be connected to the internet and access the upper machine's IP+:9999
• For example, 192.168.6.110:9999

TFT Wiring

• You need to configure the screen in FLY TOOLS and turn on KS

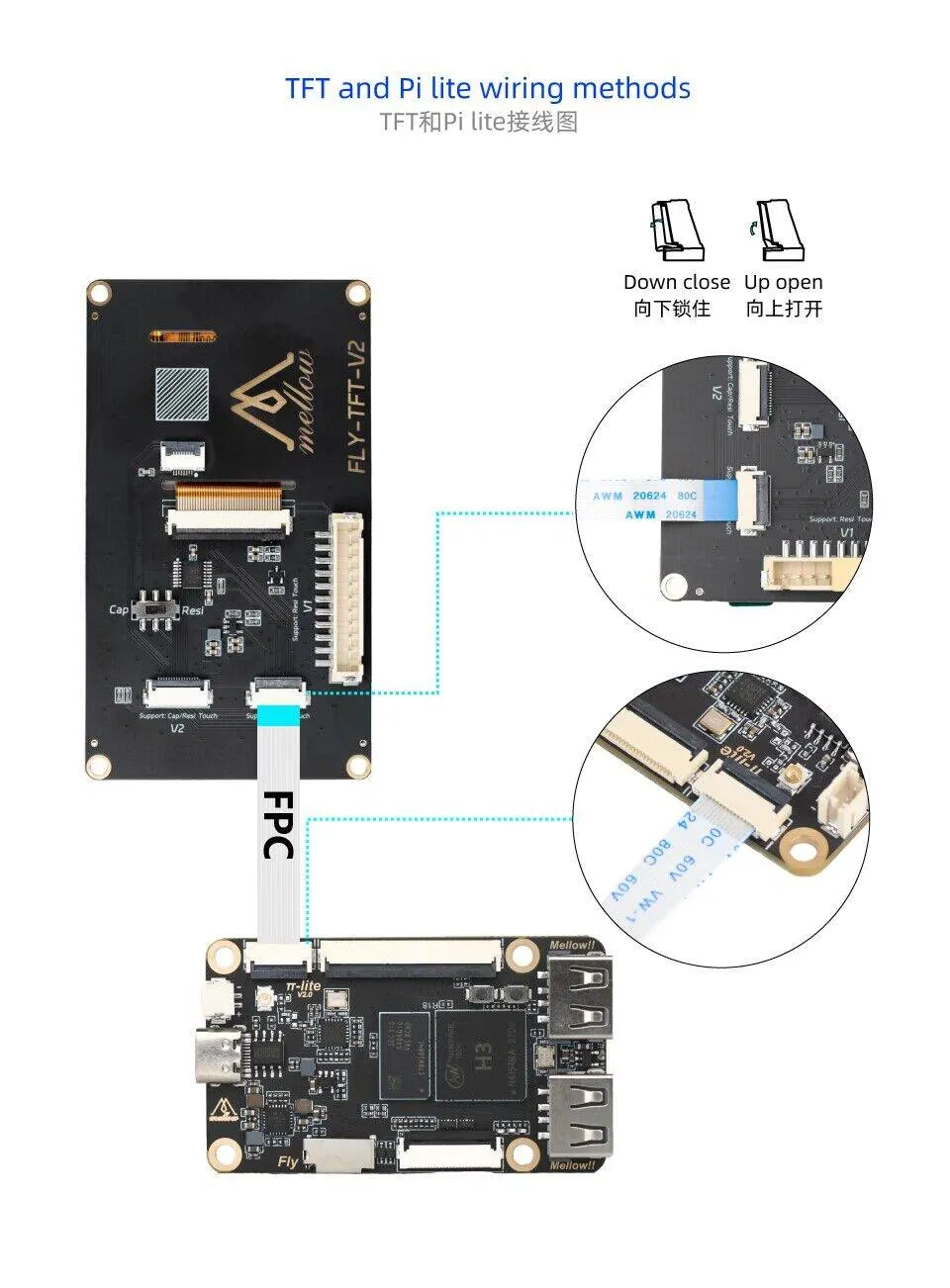

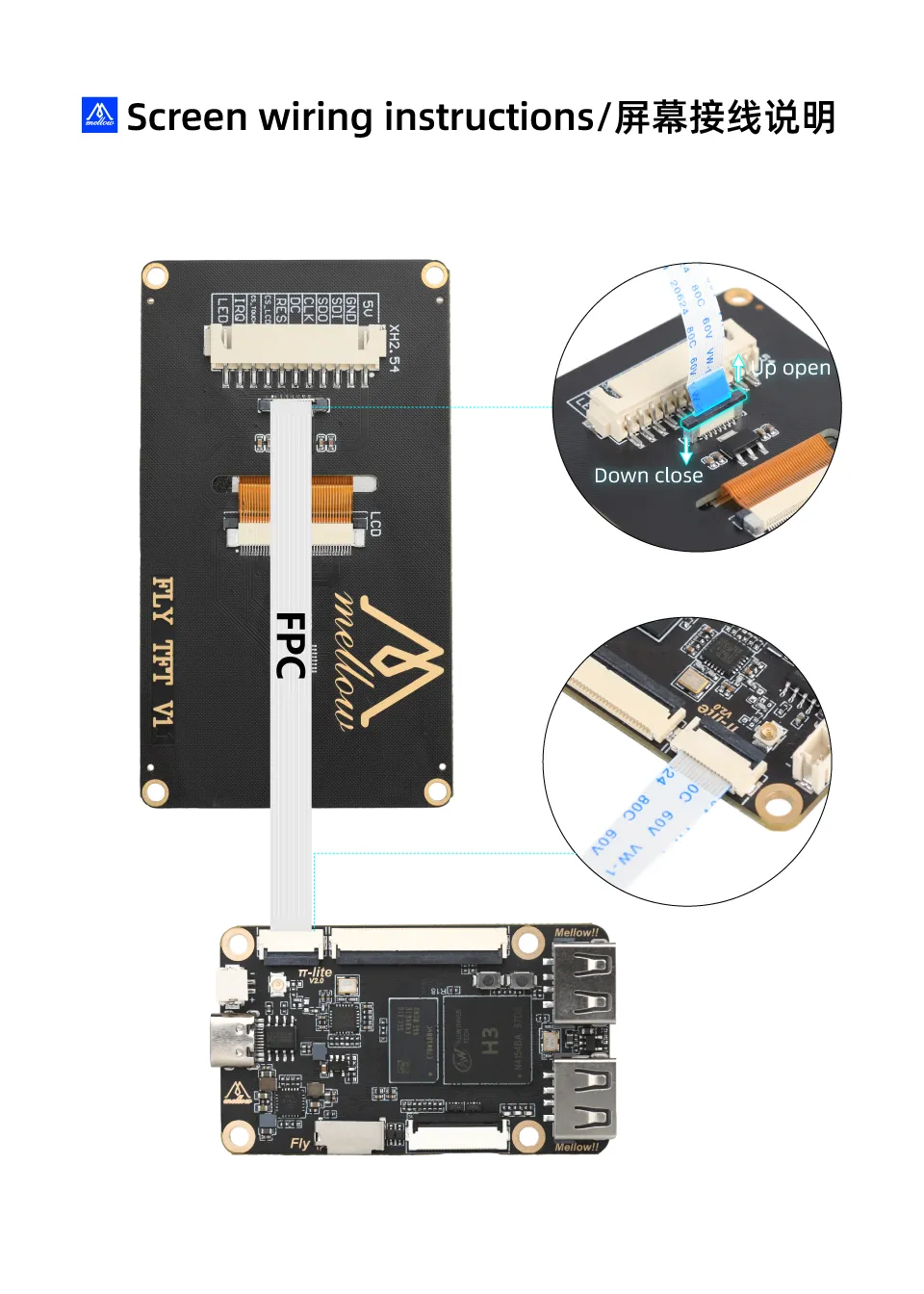

• FLY-Lite TFT screen wiring


HDMI Wiring

• You need to configure the screen in FLY TOOLS and turn on KS

• FLY-Lite HDMI screen wiring
