SSH connection to host computer

dangerous

• This document is only applicable to FLY host computer
• If you are compiling and burning the firmware, please refer to the network connection tutorial instead of the serial port connection tutorial

• You can connect to the device via serial port or WIFI
• Please prepare MobaXterm_Personal or other SSH terminal tools in advance
• Please make sure that SD card or M2WE has been burned with the corresponding host computer system
• If the host computer cannot start normally, please remove the driver, limit switch, fan, and other peripheral devices!!
• Finally, connect via network to SSH for convenient firmware compilation!!
• If you need to compile the firmware, please see the tutorial on connecting the host computer via WIFI or Ethernet

Install system card

• Make sure the system card has been burned with the corresponding system, otherwise it will not start

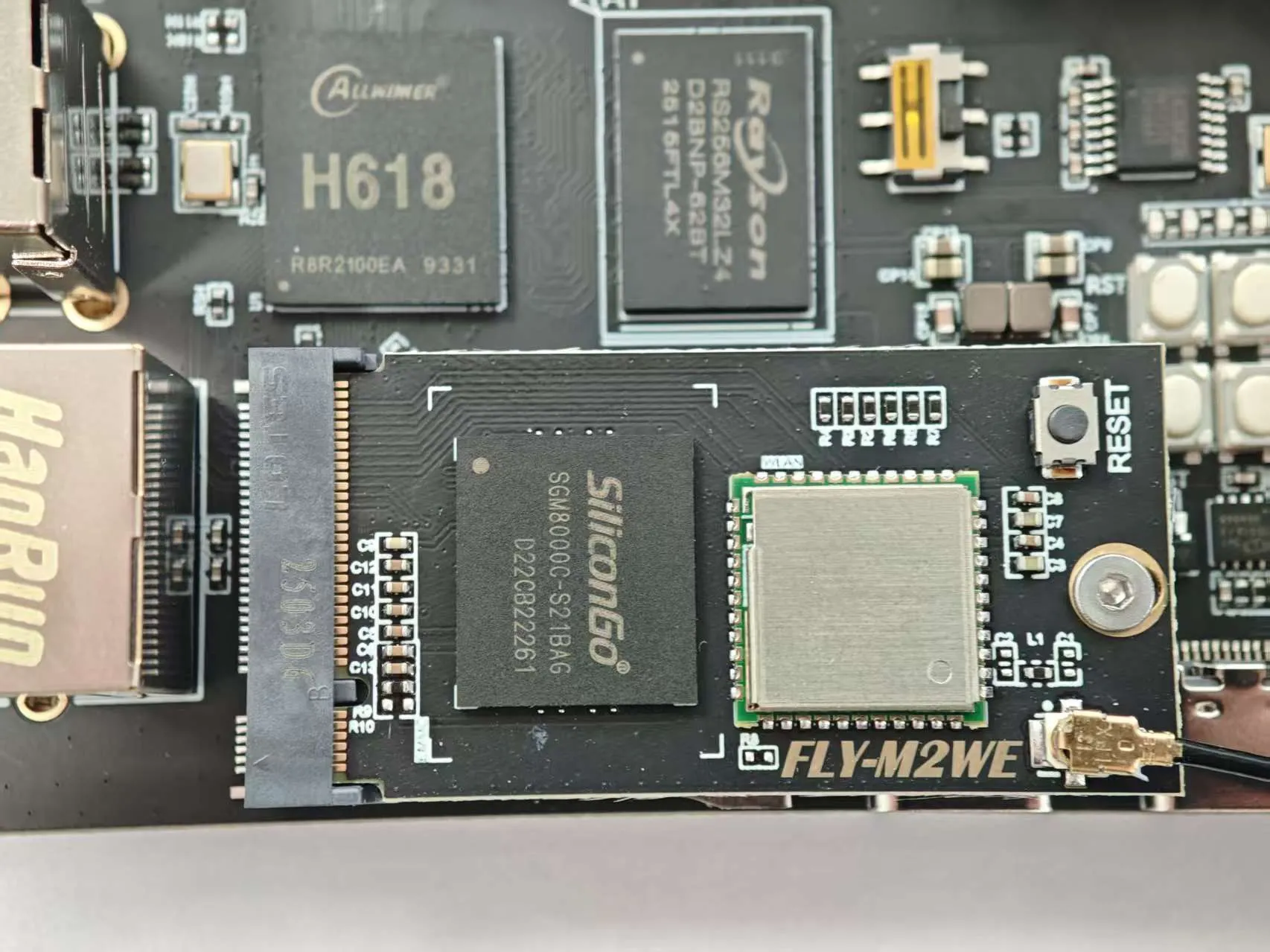

M2WE installed to C8P diagram

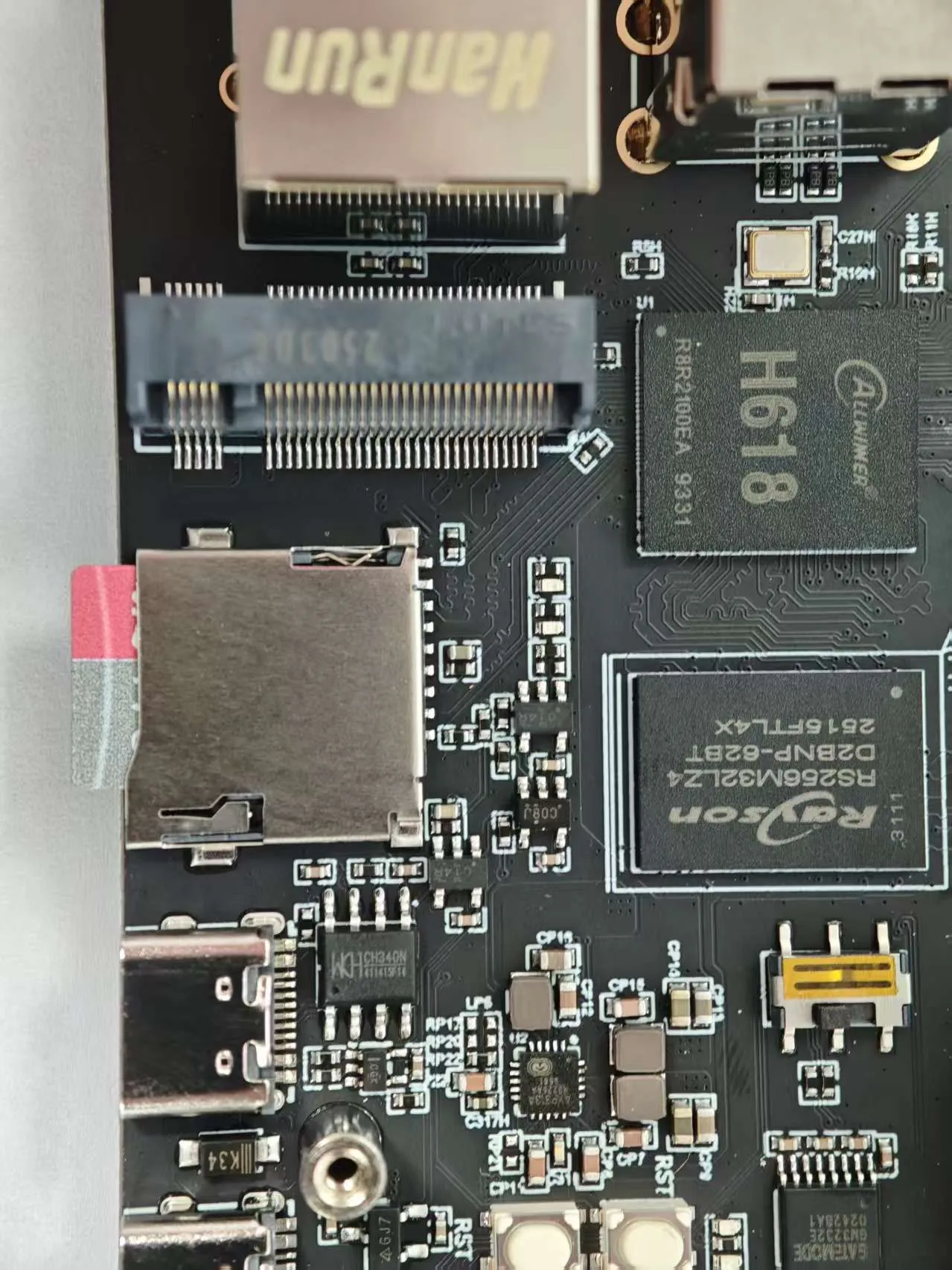

TF card installed to C8P diagram

Power supply

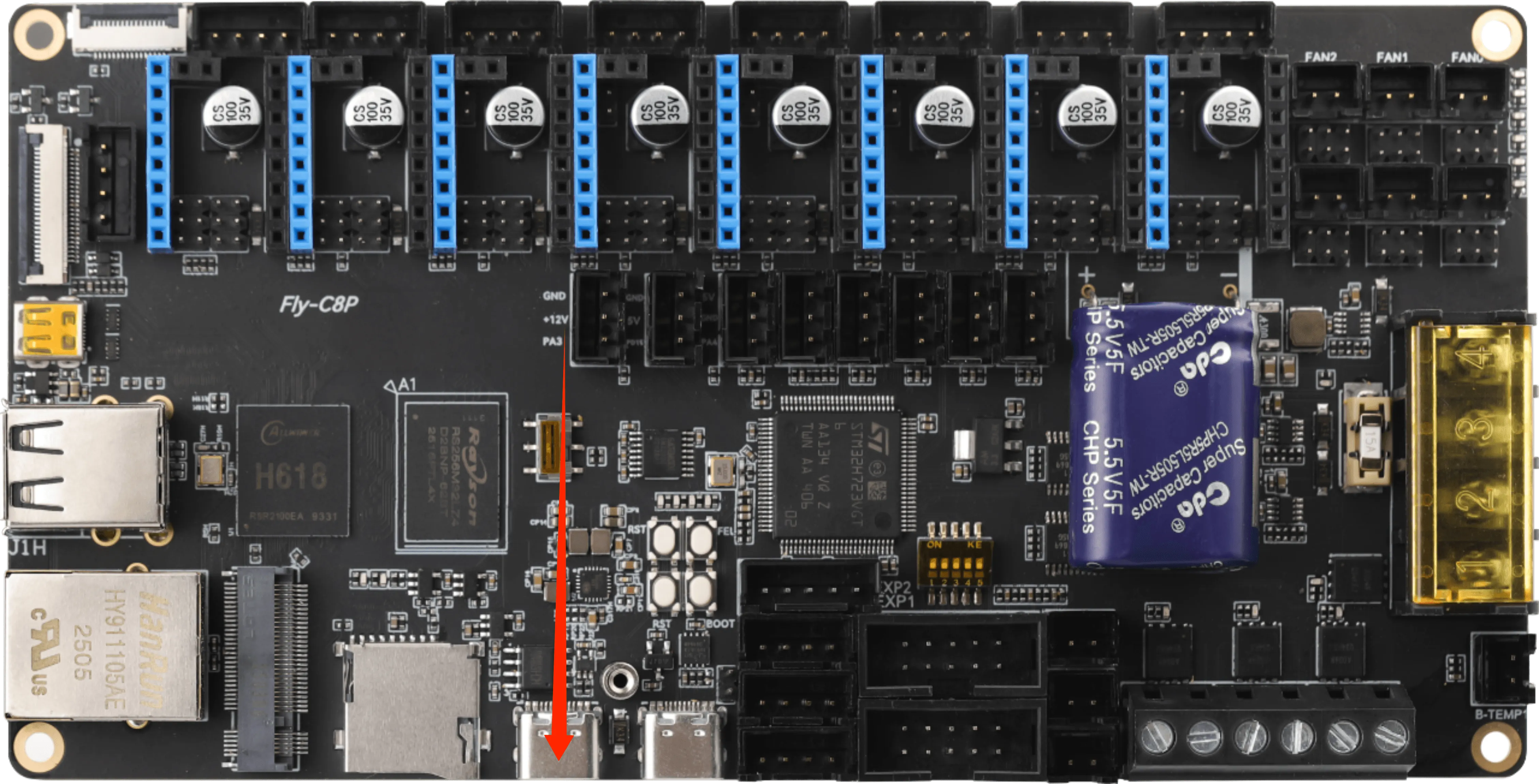

• Use USB Type-c cable to connect the FLY host computer to the computer
• Make sure that USB Type-C supports data transfer!
• After the system starts, the indicator light will flash quickly!!
• Flashing indicates that the system has started


Serial Connection

Connecting to Host via Serial SSH

• If the motherboard is properly connected to the computer, you can see the CH340 port by opening the Device Manager

• Open MobaXterm and set it up as shown below, selecting the port you saw in the Device Manager

• If everything is working properly, you should see the boot screen
• After a while, if you see a screen like the one below, it means the system has booted successfully

If after a few minutes the screen remains blank like the image below, press the Enter key a few times

• Please note that for the FAST system, you need to enter the username and password, and the password will not be visible

• FlyOS-FAST default username is root, and the default password is mellow

• After pressing Enter, you will see the content shown in the image below



tip

• Seeing the interface below indicates a successful login
• FAST system updated the appearance in version V1.3.0

• If you need to view the device IP, ensure the device is connected to the network via Ethernet or Wi-Fi Connect to Wi-Fi

Network Connection

Connecting to Host via Network IP

• Please log into the router admin panel to which the host is connected unless you already know the host's IP address
• Make sure you know the username and password of the host
• FlyOS-FAST default username is root, and the default password is mellow
• If the motherboard has already booted and is connected to the network, you can use the following method to connect via SSH
• Open MobaXterm and set it up as shown below, entering the IP address you previously checked, which can also be found in the router admin panel

Note: The username entered in step 4 here is the host's username

• The first time you connect, a window like the one below will pop up, click Accept to proceed

• When prompted to enter a password, type the host's password and press Enter

Note: The password entered here will not be visible, just press Enter after typing it

• For the FLY-FAST system, the username is: root, and the password is: mellow

tip

• Seeing the interface below indicates a successful login
• FAST system updated the appearance in version V1.3.0

• Login successful
