Screen Wiring and Configuration

C5 Screen Wiring

Important Notice

• Please turn off the power before connecting the screen to avoid damaging it
• Pay attention to the direction of the FPC cable when wiring the screen to avoid damage

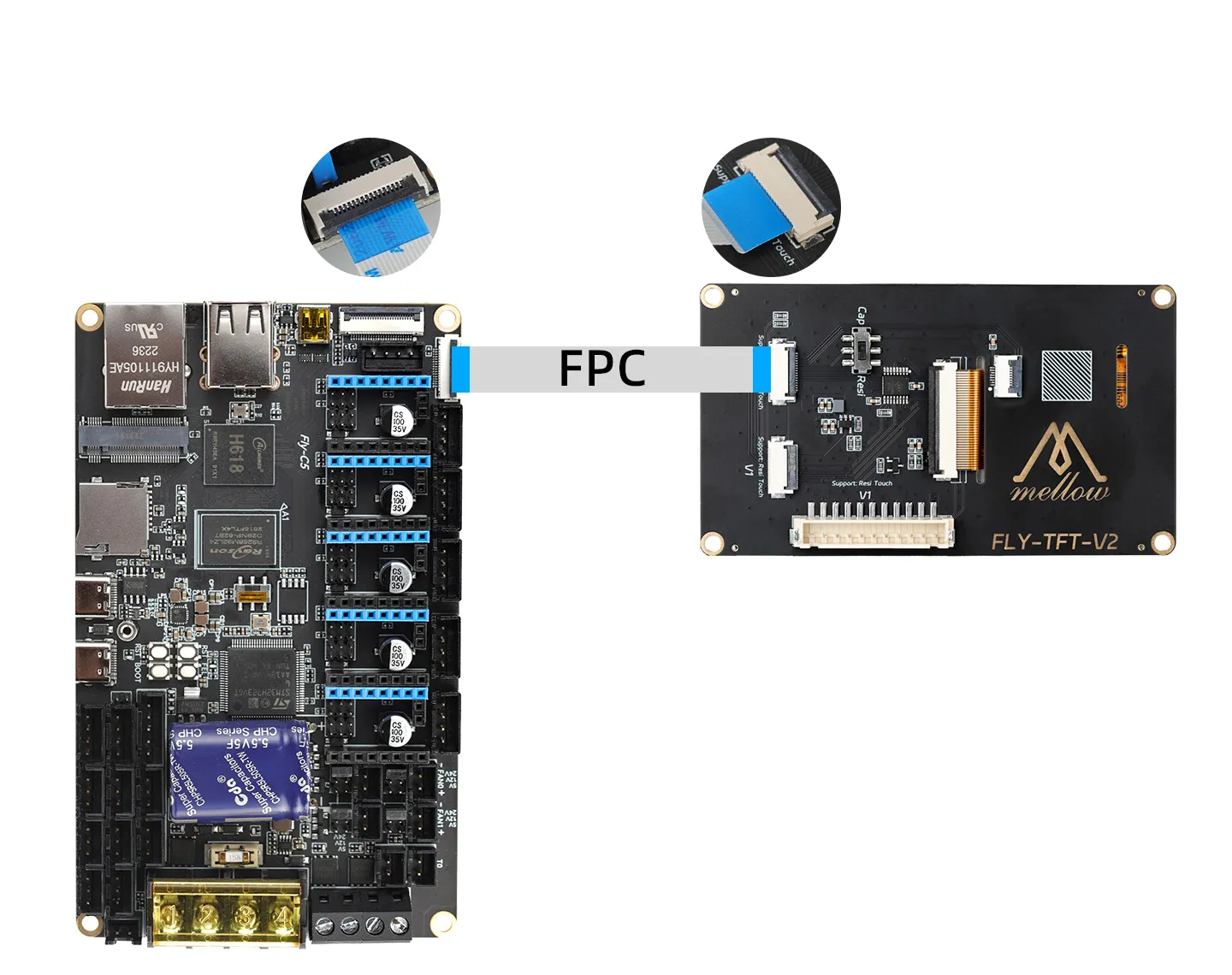

TFT Screen Wiring

TFT Screen Wiring and Configuration

tip

• For a resistive touch screen, set the DIP switch to Resi
• For a capacitive touch screen, set the DIP switch to Cap

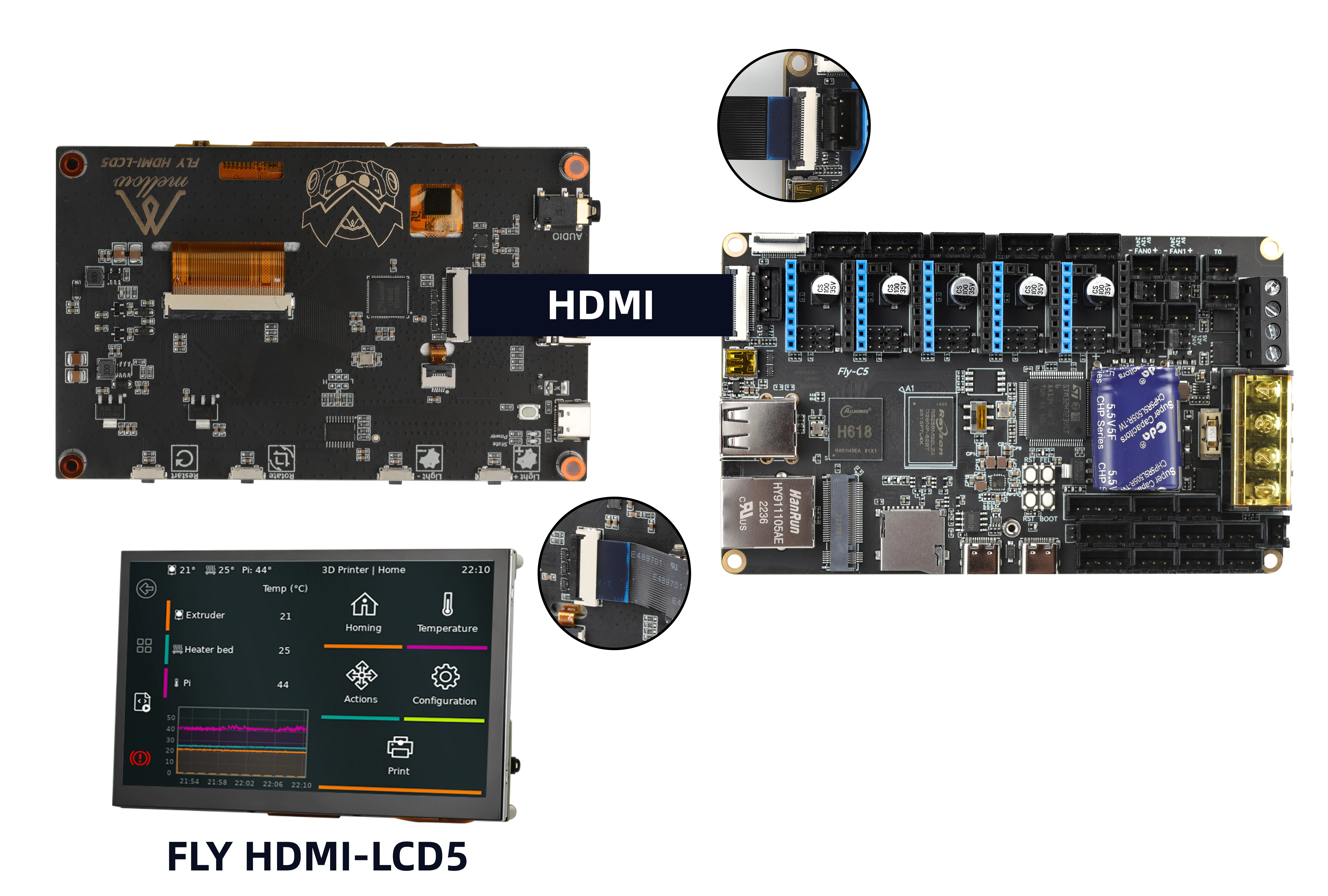

HDMI FPC One-Cable Connection

HDMI FPC One-Cable Connection

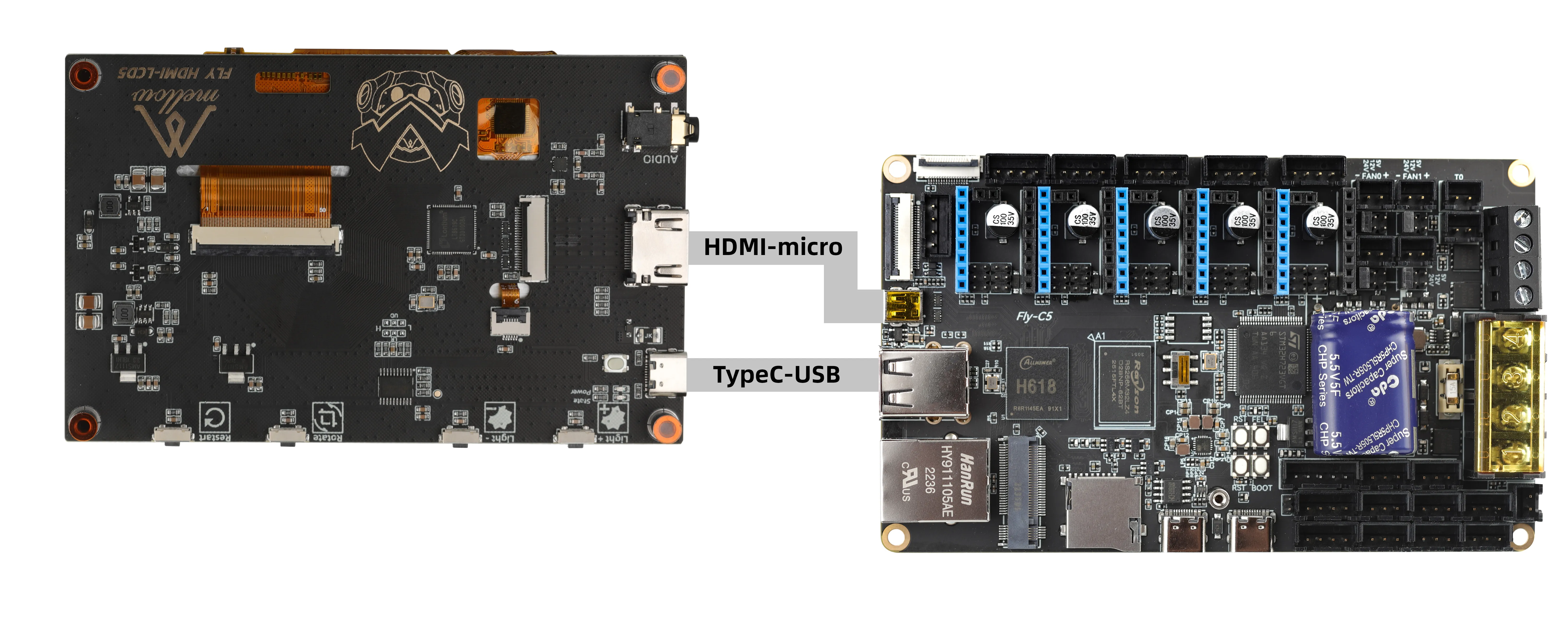

Standard HDMI Wiring

Standard HDMI Wiring

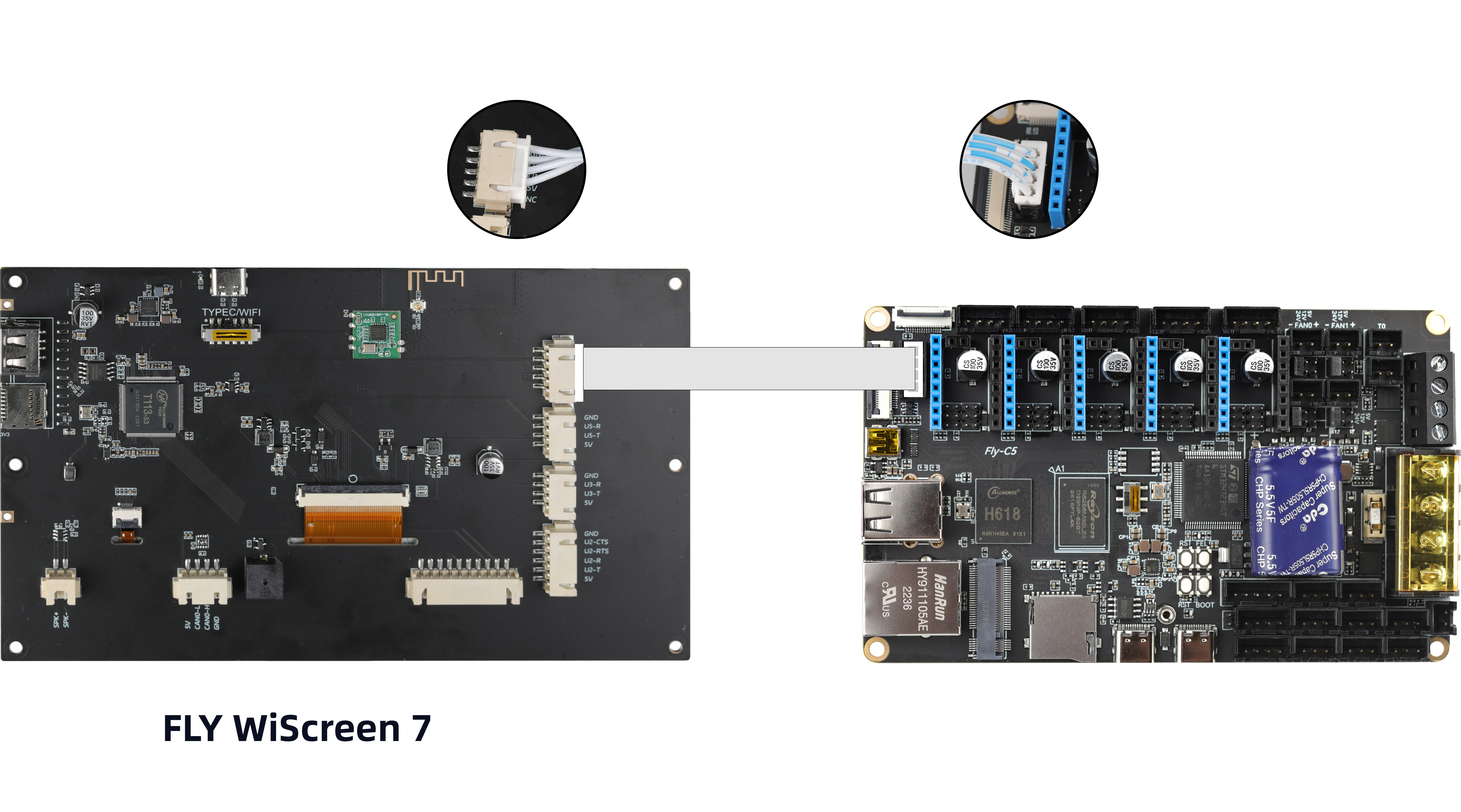

Serial Screen Wiring

Serial Screen Wiring

Important Notes

Configuration Notes

• It is recommended to use the mainsail or fluidd web interface for configuration changes
• Do not enable the browser translation feature, as it may prevent the system from booting properly
• Avoid entering Chinese characters or special characters in configuration files
• Configuration changes will take effect after restarting the system

Important Warning

• Do not edit any content below ######### PLEASE DO NOT EDIT THE FOLLOWING ######### in the configuration file

How to Modify Configuration Files

Modify Configuration File After Flashing

• Configuration items that only take effect on the first boot must be edited in the config.txt file located on the removable disk FlyOS-Conf using a professional text editor after flashing

Modify Configuration Online After System Boot

• General configuration items can be modified via the system's web configuration page and take effect after restarting the system

1. Access the device IP address through a web browser, for example: http://192.168.1.2/

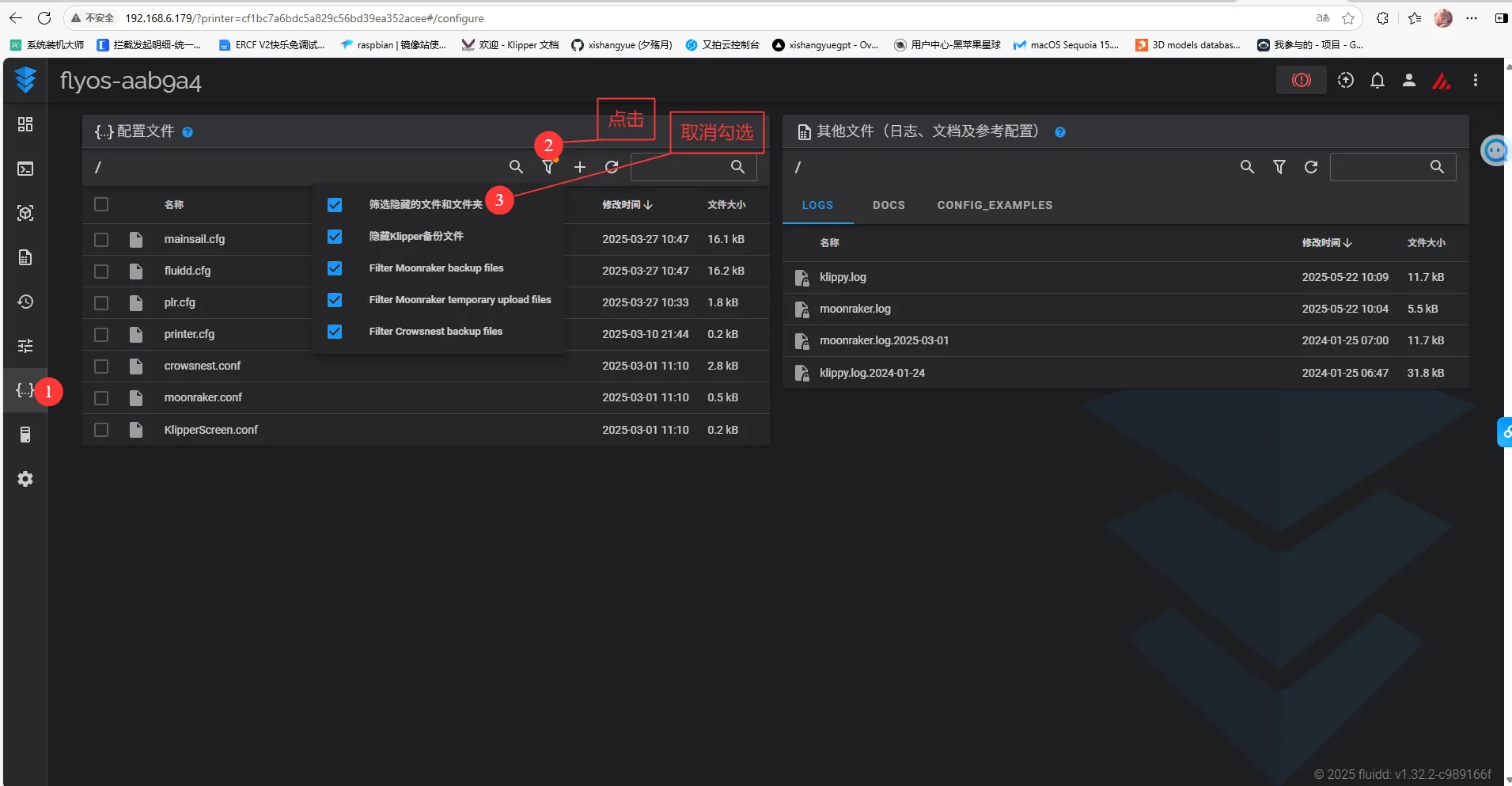

fluidd interface: Uncheck "Filter hidden files and folders"

mainsail interface: Check "Show hidden files"

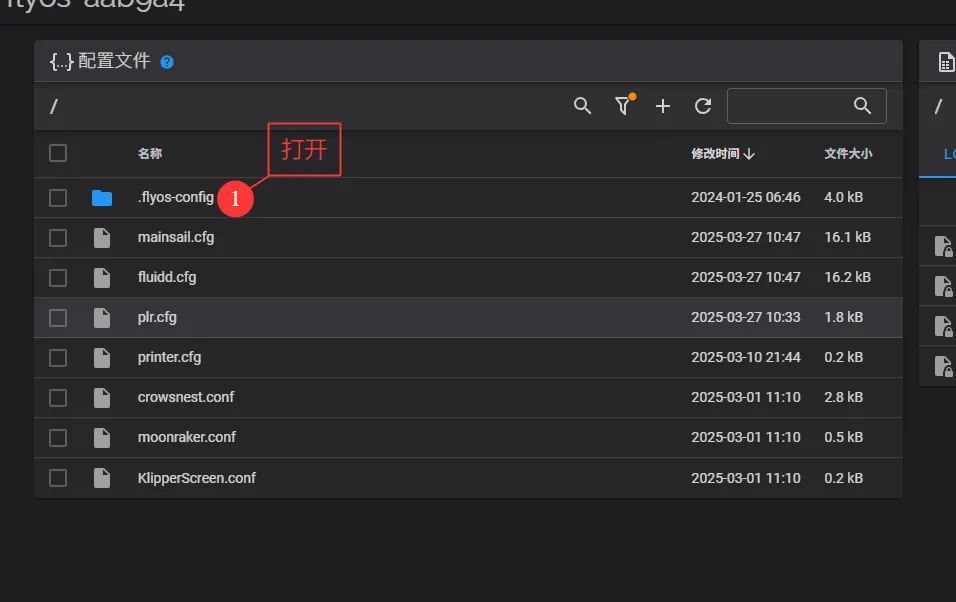

2. Navigate to the displayed .flyos-config folder and locate the sys-config.conf configuration file

3. Edit the sys-config.conf file. This file is a symbolic link to the config.txt file on the removable disk FlyOS-Conf

4. Save the changes and restart the system for the configuration to take effect

Configuration Format Instructions

• The configuration file must use the format key=value, do not use key: value or other formats
• Do not add spaces before or after the equals sign

Screen Configuration

TFT Resistive Touch Screen Configuration

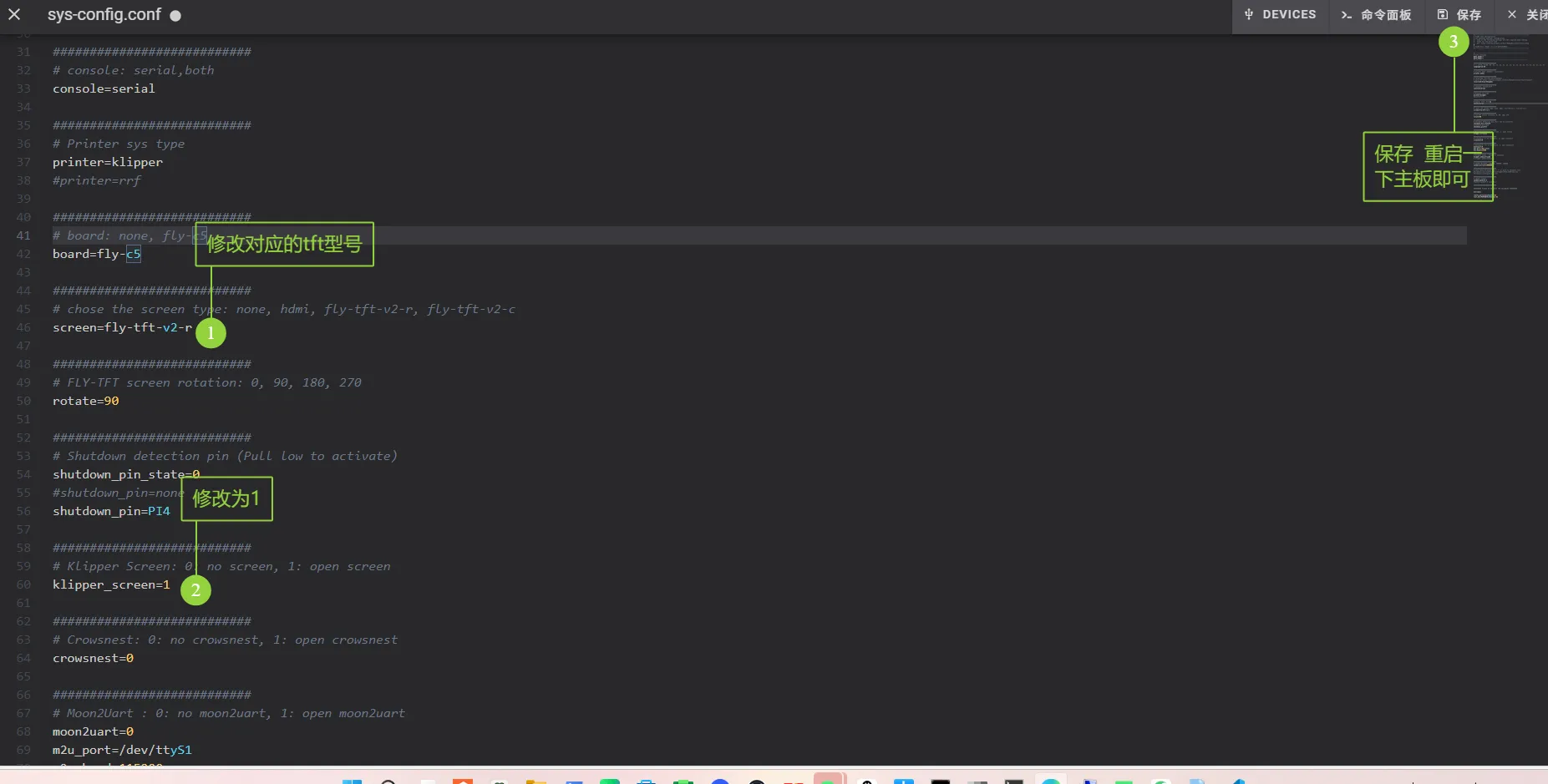

• Change the value after screen= to fly-tft-v2-r
• Change klipper_screen=0 to klipper_screen=1
• Below is an example of the correct configuration

screen=fly-tft-v2-r

• and

klipper_screen=1

TFT Capacitive Touch Screen Configuration

• Change the value after screen= to fly-tft-v2-c
• Change klipper_screen=0 to klipper_screen=1
• Below is an example of the correct configuration

screen=fly-tft-v2-c

• and

klipper_screen=1

HDMI Screen Configuration

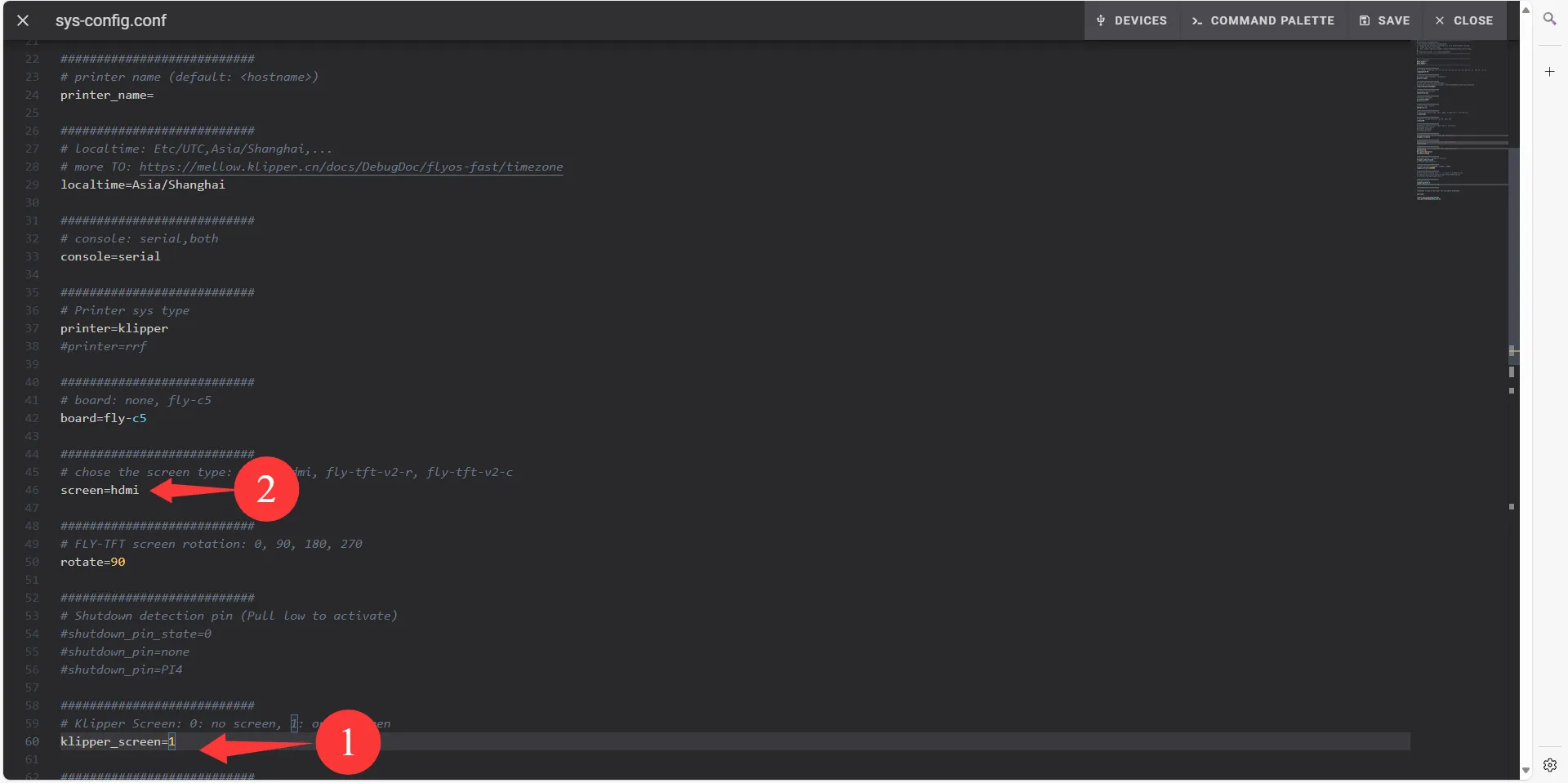

• Change the value after screen= to hdmi
• Change klipper_screen=0 to klipper_screen=1
• Below is an example of the correct configuration

screen=hdmi

• and

klipper_screen=1

Serial Screen Configuration

• Change the 0 after moon2uart to 1
• Change klipper_screen=1 to klipper_screen=0
• Below is an example of the correct configuration

moon2uart=1
