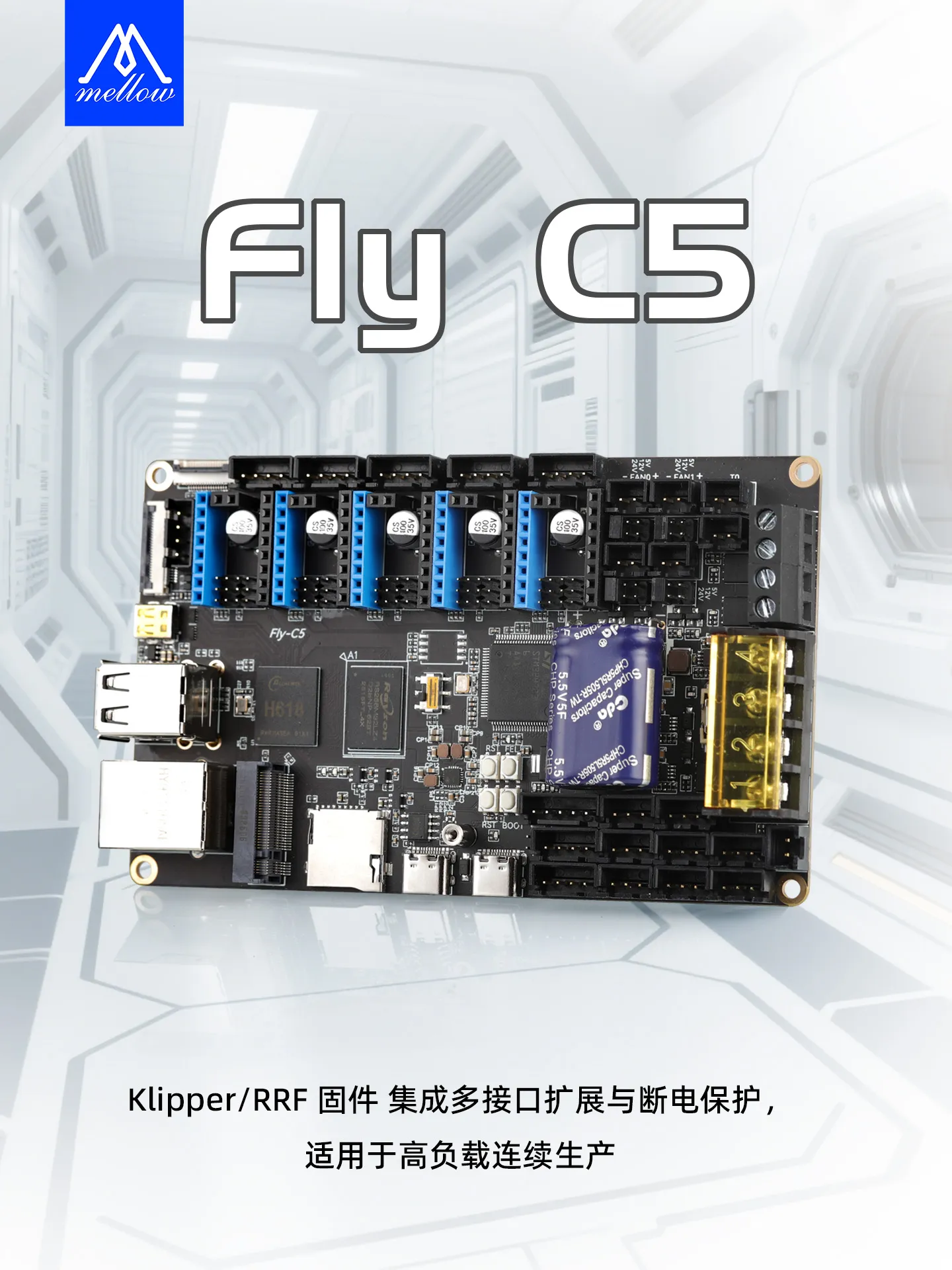

FLY-C5 Mainboard Overview

Product Features​

  • 32-bit ARM Cortex-M4, 550MHz, STM32H723VGT6 chip
  • Supports TMC-driven SPI, UART, STEP/DIR working modes
  • DIAG function pin does not occupy limit switches; after configuration, it can achieve homing without limit switches
  • Digital control fans support 24V, 12V, 5V, no additional voltage drop module required
  • Supports power-off auto shutdown and power-off resume printing (power-off auto shutdown is enabled by default)
  • Pre-installed USB Klipper firmware at factory
  • Multi-channel power management, short circuits on ports, limit switches, and drivers do not affect host machine operation -预留 5V RGB interface
  • TFT and HDMI screens support one-line connection
  • System pre-installs klipper, moonraker, mainsail, fulidd, klipper-screen, Crowsmest, resonance compensation plugin numpy, no need to change source, easy to use (TF card or M2WE purchase required)

Product Parameters​

Host Computer​

  • CPU: Allwinner H618, quad-core 64-bit Cortex-A53
  • GPU: Arm Mali-G31
  • RAM: 1GB DDR4 3200M
  • ROM: Maximum support for 128GB SD card
  • Peripherals:
    • TFT x1
    • USB 2.0 x2
    • Micro HDMI x1
    • Ethernet port (Eth) x1 (100M)
    • FPC-HDMI x1
    • UART x1
  • Interface: On-board M.2, supports expansion of WIFI, eMMC, etc. (private protocol, do not connect non-FLY dedicated M.2 devices)
  • Support: TFT screen and HDMI screen FPC one-line connection
  • System Pre-installation: klipper, moonraker, mainsail, fulidd, klipper-screen, Crowsmest, resonance compensation plugin numpy, no need to change source, easy to use (TF card or M2WE purchase required)

Subordinate Machine​

  • MCU: STM32H723VGT6
  • Firmware: KLIPPER
  • Power Supply: Supports 12-24V DC power supply, no voltage drop module required
  • Maximum Output Current of Hotbed Port: 15A
  • Maximum Output Current of Heater Port: 6A
  • Maximum Output Current of Fan Port: 1A
  • Driver Working Mode: SPI, UART, STEP/DIR
  • Supported Drivers: TMC5160Pro, TMC5160, TMC2209, TMC2225, TMC2226, TMC2208, TMC2130, A4988, etc.
  • Expansion Interface: BLTouch (Servos, Probe), RGB x1, UART x1, CAN x1
  • Fans: Two-wire digital fans x4 (support 24V, 12V, 5V selectable)
  • Temperature Sensor: 3 channels NTC 100K
  • Supported Structures: Cartesian, Delta, Kossel, Ultimaker, CoreXY, etc.
