MCU Connection Guide
This guide is used to troubleshoot and resolve issues where the MCU cannot connect to Klipper normally.
Preparations and Notes
- Not Recommended Host Devices: Avoid using devices such as Redmi phones, WiFi dongles, and set-top boxes. These often use customized or modified systems that may prevent proper MCU recognition.
- Confirm Number of MCUs: Make sure in advance how many MCUs (such as tool boards) you are using. Multiple MCUs may affect connectivity.
- Simplify Wiring: It is recommended to temporarily remove all wiring except for data cables from the main board and tool boards to eliminate interference.
- Recommended Interface: Fluidd interface is recommended, as it provides a more intuitive display of MCU connection status.
Step 1: Backup and Reset Configuration
1. Access the Host Machine Interface
Visit the host machine's IP address in a browser (e.g., 192.168.101.179).

2. Locate Configuration File

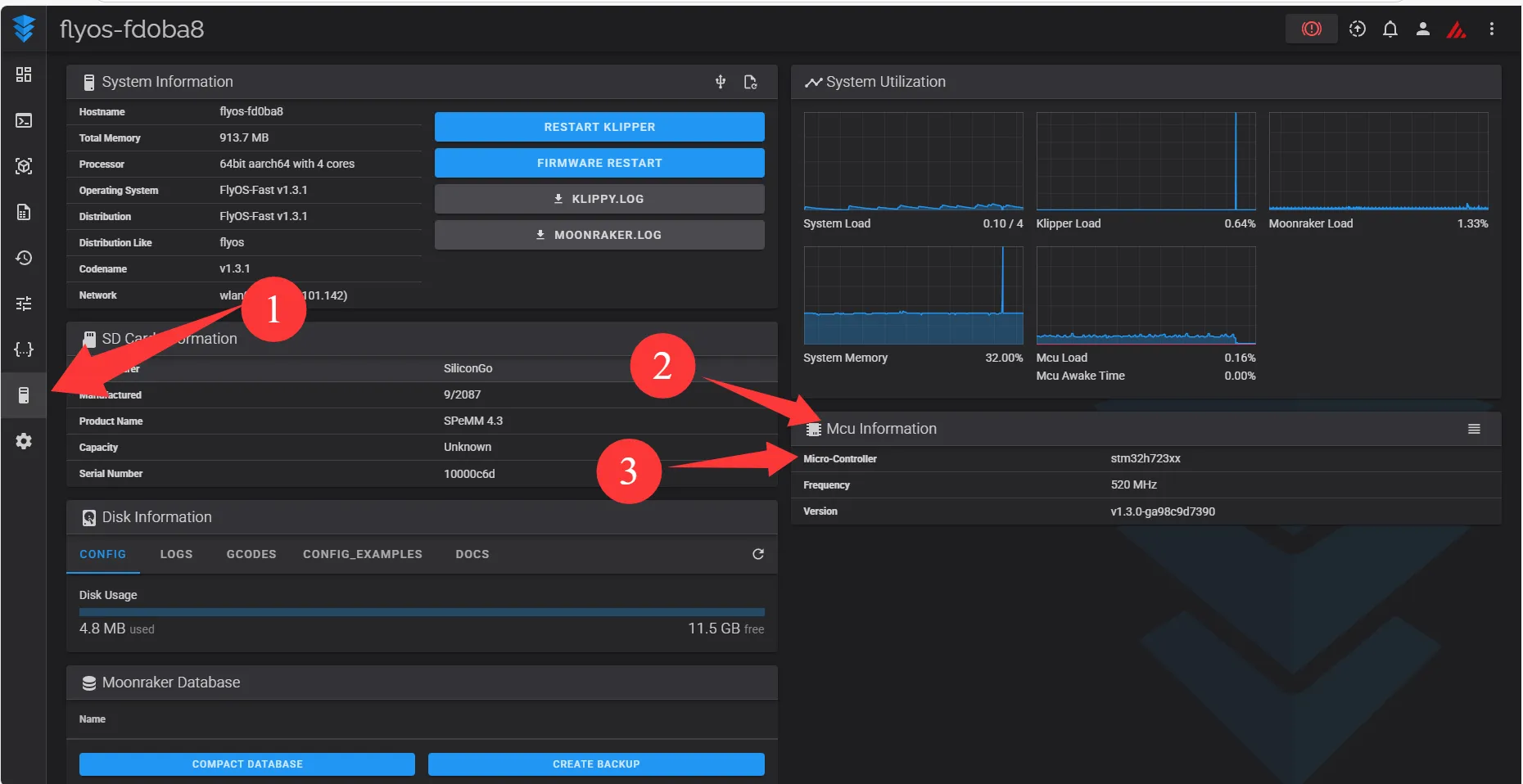

Enter the web interface and find the configuration option in the left sidebar:
Fluidd Users: Click ![]() | Mainsail Users: Click ![]() |
3. Backup Configuration File

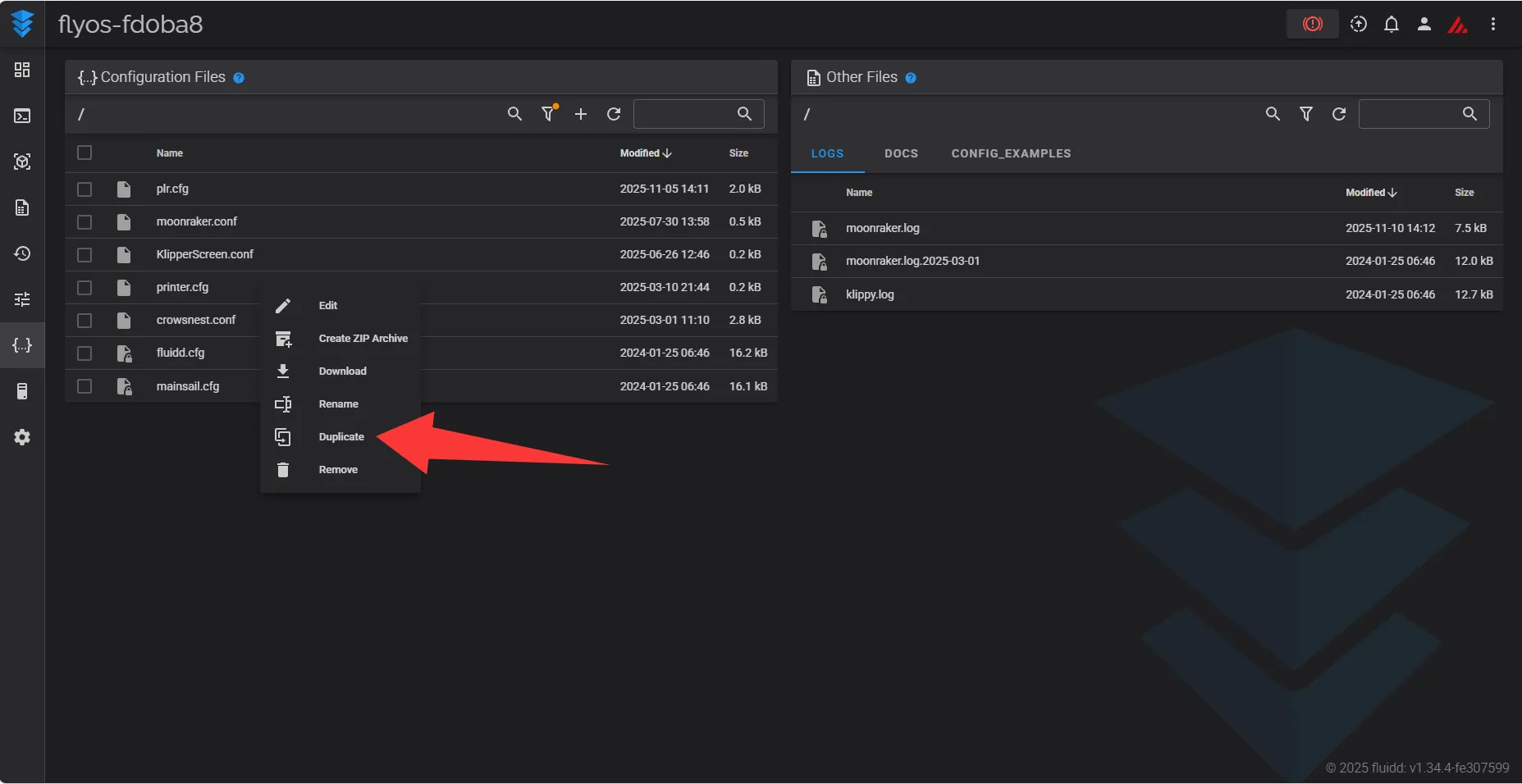

Right-click on the printer.cfg file, select Duplicate to copy it, and rename the copy to:
printer_Backup.cfg

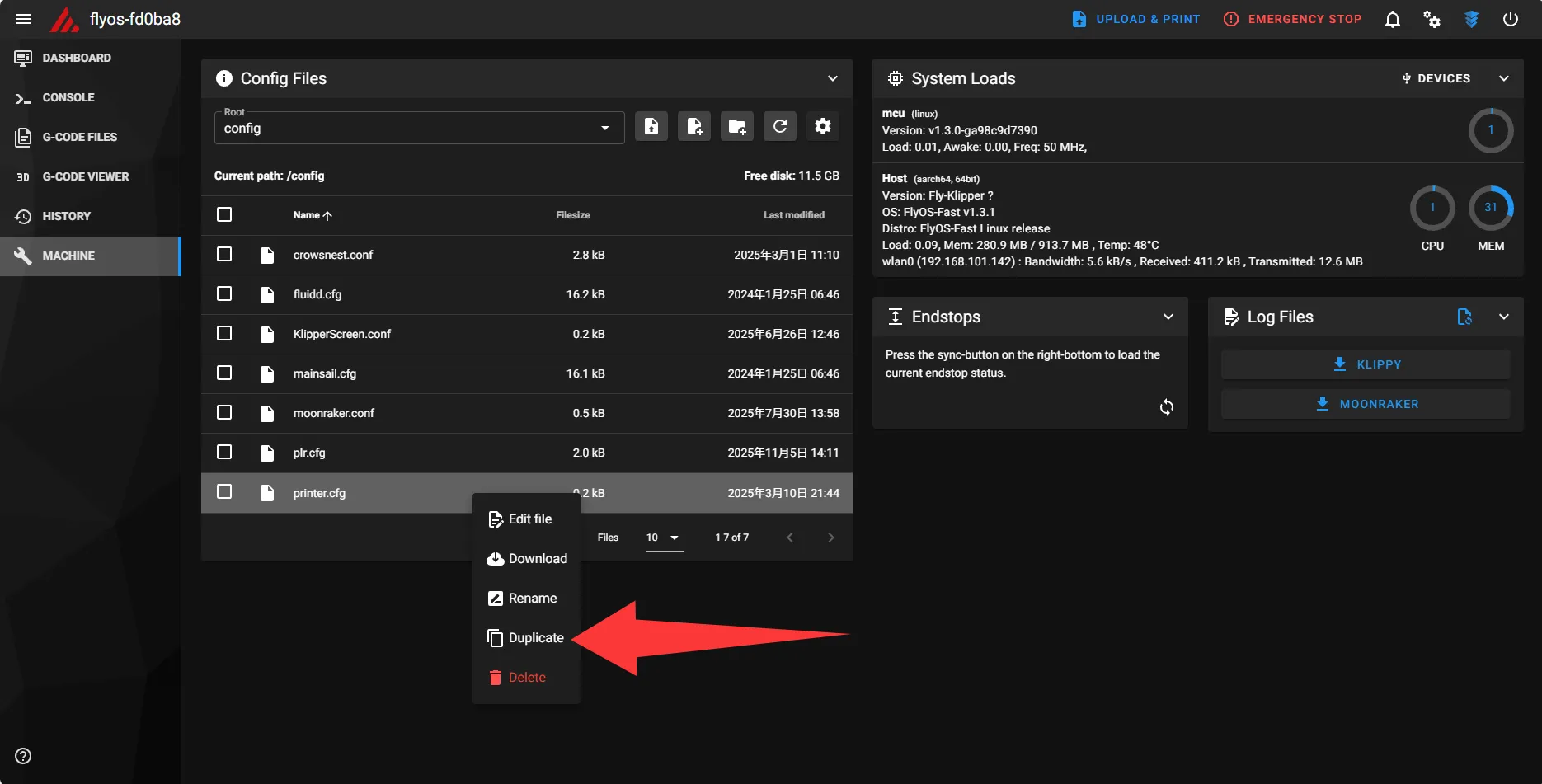

Fluidd Example: ![]() | Mainsail Example: ![]() |
4. Reset Configuration File
Re-open printer.cfg, clear all contents, and paste the following basic configuration:
[mcu]
serial: /tmp/klipper_host_mcu
[printer]
kinematics: none
max_velocity: 200
max_accel: 1000
5. Save and Restart
- Click SAVE & RESTART in the top right corner; Klipper will save the configuration and restart the service.
- If errors appear, please ignore them temporarily.
- Then, completely power off all devices (including the host and all MCUs).
- Important: Ensure a complete power-off, otherwise subsequent steps cannot proceed.
Step 2: Detect Devices and Confirm Firmware Type
Prerequisites
- MCU Order: The first
MCUmust be the main board, not a tool board. - Firmware Type: Confirm that your FLY motherboard firmware is USB firmware or USB-to-CAN firmware; this guide does not apply to other types.
- Connection Method: Please first connect via SSH, which must be done over the network.
Operating Steps
-
Perform Device Detection
- After successfully connecting via SSH, execute the following command:
lsusb - The system will list all recognized USB devices.
- After successfully connecting via SSH, execute the following command:
-
Handle Command Errors
- If
lsusbis not found, install it first:sudo apt-get install usbutils - If no devices are displayed after execution, consider changing the host device.
- If
-
Identify Device Information According to the figure below, identify your device in the
lsusboutput:

-
Verify Firmware Type
- Based on the firmware you flashed, check the following key information in the
lsusbresults:- USB Firmware: Should display
1d50:614e - USB-to-CAN Firmware: Should display
1d50:606f - USB Katapult Firmware: Should display
1d50:6177 - RS232 Adapter (used with UTOR or D8/D8PRO boards): Should display
1a86:7523(this step is not required for G2T)
- USB Firmware: Should display
- Based on the firmware you flashed, check the following key information in the
Step 3: Search for Device IDs
Important Notes
- USB ID Search: Applies only to USB firmware, not to CAN or RS232.
- CAN ID Search: Applies only to CAN bus devices, not to USB or RS232.
- RS232 ID Search: Applies only to RS232 firmware, not to USB or CAN.
- RS232 Specificity: RS232 firmware is typically used only for tool boards, not for the main MCU.
Select Method Based on Firmware Type
USB Firmware Devices Execute the following command to search for USB device IDs:
ls /dev/serial/by-id/*
USB-to-CAN Devices Based on your system type, choose the corresponding command to search for CAN IDs:
- Fly_Armbian or Regular Host
- Fly_FAST System
~/klippy-env/bin/python ~/klipper/scripts/canbus_query.py can0
python ~/klipper/scripts/canbus_query.py can0
RS232 Firmware Devices Execute the following command to search for RS232 device paths:
ls /dev/serial/by-path/*
Result Interpretation and Handling
USB ID Search Results
After executing the command, the terminal will display a device ID similar to the one below (example):
- ✅ Can be used directly: If the ID is labeled as
Klipperafter theusb-field - ⚠️ Firmware needs to be reflashed: If the ID is labeled as
katapultafter theusb-field

CAN ID Search Results
After executing the command, judge based on the actual situation:
- ✅ Can be used directly: If the ID ends with
Application:labeled asKlipper. - ⚠️ Firmware needs to be reflashed: If the ID ends with
Application:labeled asCANBOOTorKatapult. - ❌ Device not found: If
Total 0 uuids foundis displayed, possible causes include:- CAN network configuration error
- CAN speed mismatch (ensure the host, main board, and tool board speeds are consistent)
- The ID is already in use (needs to be masked in the configuration, then power off and restart)

RS232 ID Search Results
After executing the command, the terminal will display the RS232 device path (example):
/dev/serial/by-path/platform-3f980000.usb-usb-0:1.2:1.0-port0
RS232 devices must specify the baud rate and restart method in the configuration:
[mcu toolboard]
serial: <Replace with the RS232 device path found here>
baud: 250000
restart_method: command
Step 4: Configure the Main MCU ID
Before starting the configuration, ensure the tool board is disconnected from the host or main board to avoid device recognition conflicts.
Re-open the printer.cfg file and locate the serial: /tmp/klipper_host_mcu configuration line in the [mcu] section.
Based on your connection method, refer to the corresponding method below for configuration:
- USB Connection Configuration
- CAN Connection Configuration
Replace /tmp/klipper_host_mcu after serial: with the searched USB ID.
Configuration Example:
# The searched USB ID is:
# /dev/serial/by-id/usb-Klipper_stm32h723xx_12345-if00
# Modify the configuration as:
[mcu]
serial: /dev/serial/by-id/usb-Klipper_stm32h723xx_12345-if00
Replace the serial: /tmp/klipper_host_mcu configuration with canbus_uuid: and fill in the searched CAN ID.
Configuration Example:
# The searched CAN ID is:
# 688e89f0e401
# Modify the configuration as:
[mcu]
canbus_uuid: 688e89f0e401
Save the configuration and restart the Klipper service.
Step 5: Verify the Main MCU Connection
After completing the main MCU configuration, verify the connection:

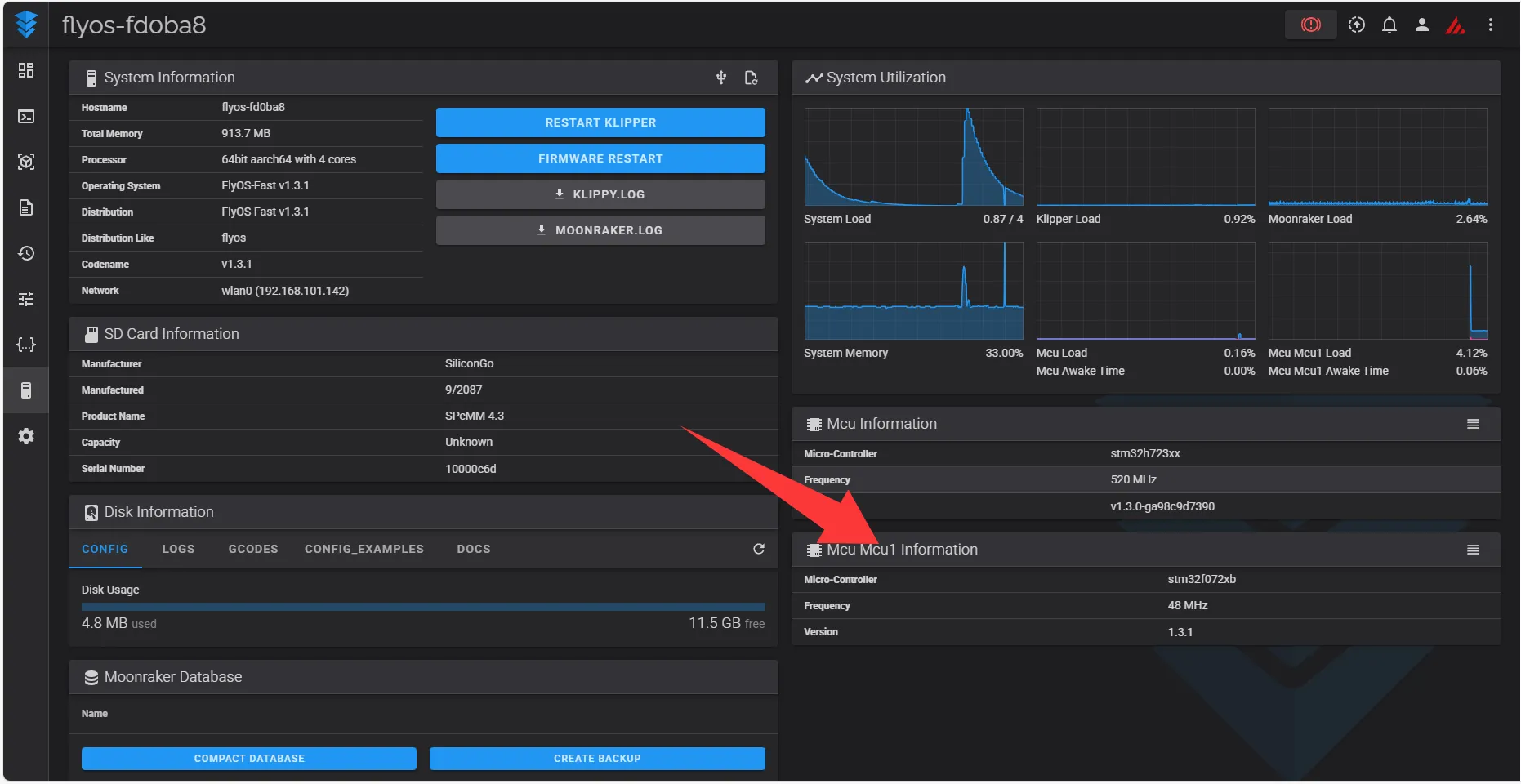

- Open the Fluidd interface, click on
Systemin the left menu. - View MCU Information: Under
Mcu Information, find theMicro-Controllerinformation. - Verify the Controller Model: Ensure the displayed model matches the actual controller on your main board.
- If your controller is an STM32H723, the
Micro-Controllermust display an H723-related model. - If the display is incorrect or not recognized, check the previous configuration steps.

Step 6: Add Tool Board MCUs
After successfully verifying the main MCU, you can add tool boards:
- Reconnect the Tool Board: Reconnect the tool board data cable to the host or main board.
- Edit the Configuration File: At the bottom of the
printer.cfgfile, add the tool board configuration. - Configure the Tool Board ID: Based on the tool board's firmware type, add the corresponding ID in the new configuration section.
The names mcu1, mcu2, etc., in the configuration are only used for temporary differentiation between devices. You can fully customize these names as long as they remain unique in the configuration file.
Configuration Format:
[mcu mcu1]
# Add the tool board ID configuration here
Configuration Example:
- USB Tool Board
- CAN Tool Board
- RS232 Tool Board
[mcu mcu1]
serial: /dev/serial/by-id/usb-Klipper_stm32f446xx_54321-if00
[mcu mcu1]
canbus_uuid: 688e89f0e402
[mcu mcu1]
serial: /dev/serial/by-path/platform-3f980000.usb-usb-0:1.2:1.0-port0
baud: 250000
restart_method: command
Notes:
- Each MCU must use a unique ID. Ensure the tool board ID differs from the main MCU and other devices.
- MCU names can be fully customized (e.g.,
toolboard,extruder_mcu, etc.), as long as they remain unique in the configuration. - Ensure you use valid tool board IDs verified in the previous steps.
- RS232 devices must include the
baud: 250000andrestart_method: commandparameters. - When configuring multiple tool boards, assign different names to each device for easy identification.
After completing the configuration, save and restart the Klipper service.
Step 7: Verify All MCU Connections
After adding the tool boards and restarting Klipper, re-verify the connection status of all MCUs:
- Open the Fluidd interface, click on
Systemin the left menu. - View MCU Information: Under
Mcu Information, confirm that all MCUs are correctly recognized. - Verify Each MCU Status: Ensure both the main MCU and tool boards show as connected.
- The main MCU and all tool boards should appear in the list.
- Each MCU's connection status should show as "Connected".
- If any MCU does not appear or fails to connect, check its configuration and physical connections.

Step 8: Check Firmware Version
After connecting all MCUs, verify firmware version compatibility:
- Open the Fluidd interface, click on
Systemin the left menu. - View Version Information: Under
Mcu Information, locate theVersionfield. - Verify Version Consistency: Ensure the firmware version of all MCUs matches the Klipper version on the host.
- Custom Compiled Firmware: Except for pre-configured custom devices, all self-compiled firmware must match the host Klipper version.
- Fly-FAST System: FAST system firmware versions are aligned with the system version. The compiled Klipper firmware also matches the system version.
- Consequences of Version Mismatch: Different firmware versions may cause functional issues, communication failures, or system instability.
Verification Points:
- The
Versioninformation for the main MCU and all tool boards should be displayed and consistent. - If versions do not match, re-flash the corresponding firmware.
Step 9: Restore and Update Configuration File
Once all MCUs are confirmed connected, restore the original configuration file and update the MCU configuration:
-
Delete Current Configuration File
- In the configuration file management interface, locate and delete the current
printer.cfgfile.
- In the configuration file management interface, locate and delete the current
-
Restore Backup Configuration
- Rename the previously backed-up
printer_Backup.cfgfile toprinter.cfg.
- Rename the previously backed-up
-
Update MCU Configuration
- Open the restored
printer.cfgfile. - Find the original
[mcu]configuration section and update it with the ID obtained in previous steps:
USB Connection Configuration:
[mcu]
serial: /dev/serial/by-id/usb-Klipper_stm32h723xx_12345-if00
# Replace with the actual main MCU USB ID found earlierCAN Connection Configuration:
[mcu]
canbus_uuid: 688e89f0e401
# Replace with the actual main MCU CAN UUID found earlier - Open the restored
-
Update Tool Board Configuration (if applicable)
- In the configuration file, locate the tool board's
[mcu]section. - Update it with the actual tool board ID found based on the connection method:
USB Tool Board:
[mcu toolboard]
serial: /dev/serial/by-id/usb-Klipper_stm32f446xx_54321-if00CAN Tool Board:
[mcu toolboard]
canbus_uuid: 688e89f0e402RS232 Tool Board:
[mcu toolboard]
serial: /dev/serial/by-path/platform-3f980000.usb-usb-0:1.2:1.0-port0
baud: 250000
restart_method: command - In the configuration file, locate the tool board's
-
Save and Restart
- After updating all MCU configurations, click SAVE & RESTART to save and restart Klipper.
- Re-enter the
Systempage to confirm all MCU connection statuses are normal.
- Ensure you use the correct IDs actually found during this connection test.
- If configuring multiple tool boards, update each
[mcu]section's ID one by one. - RS232 tool boards must include the
baud: 250000andrestart_method: commandparameters. - After restoring the configuration, existing printer parameters (such as stepper motors, endstops, etc.) will remain unchanged.
At this point, MCU connection troubleshooting and configuration restoration are complete.
