上位机供电

팁

FLY-Pi-V2供电方式有两种

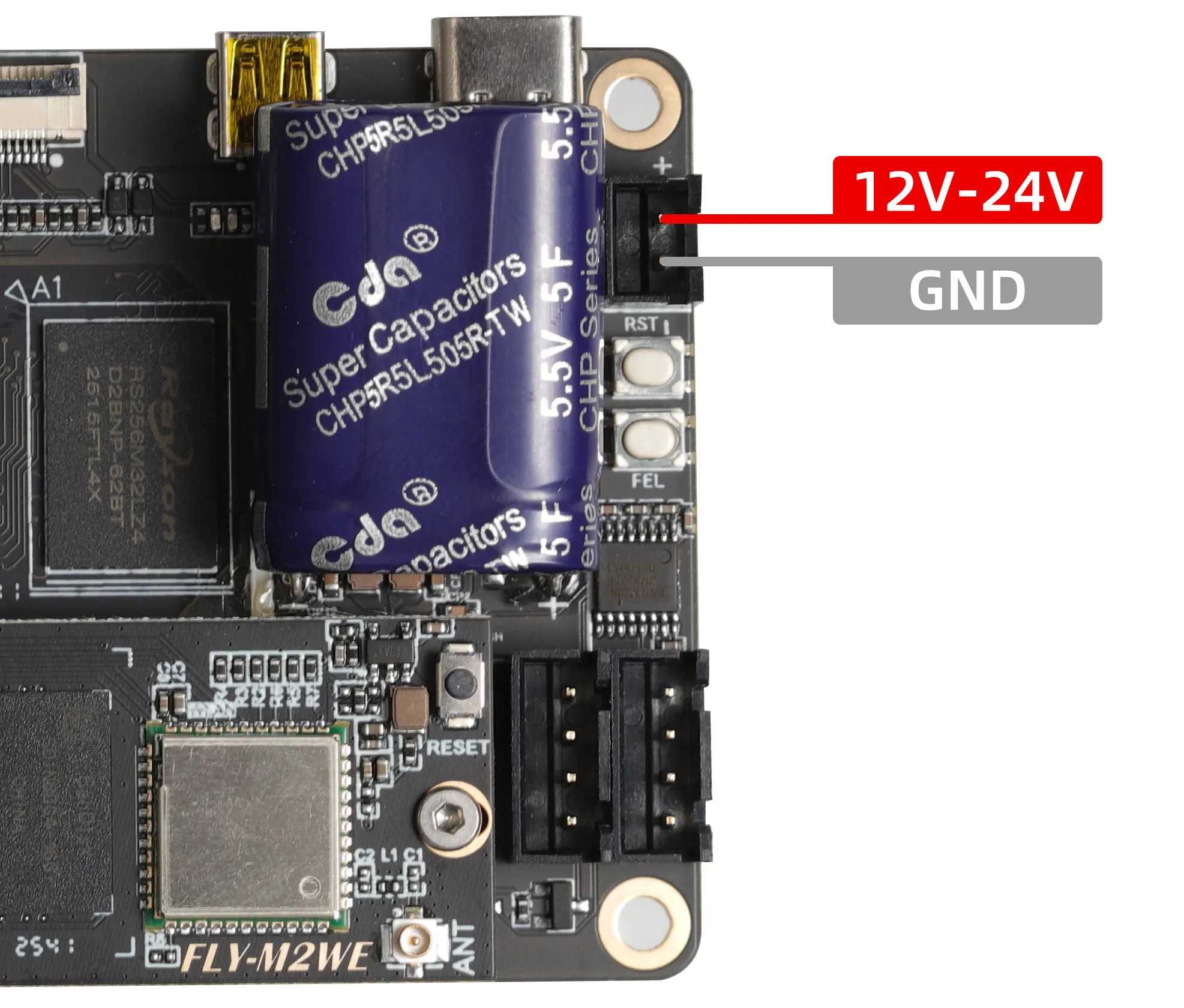

使用12-24V电源供电​

  • 接线方式如下图所示,接口端子信号为XH2.54

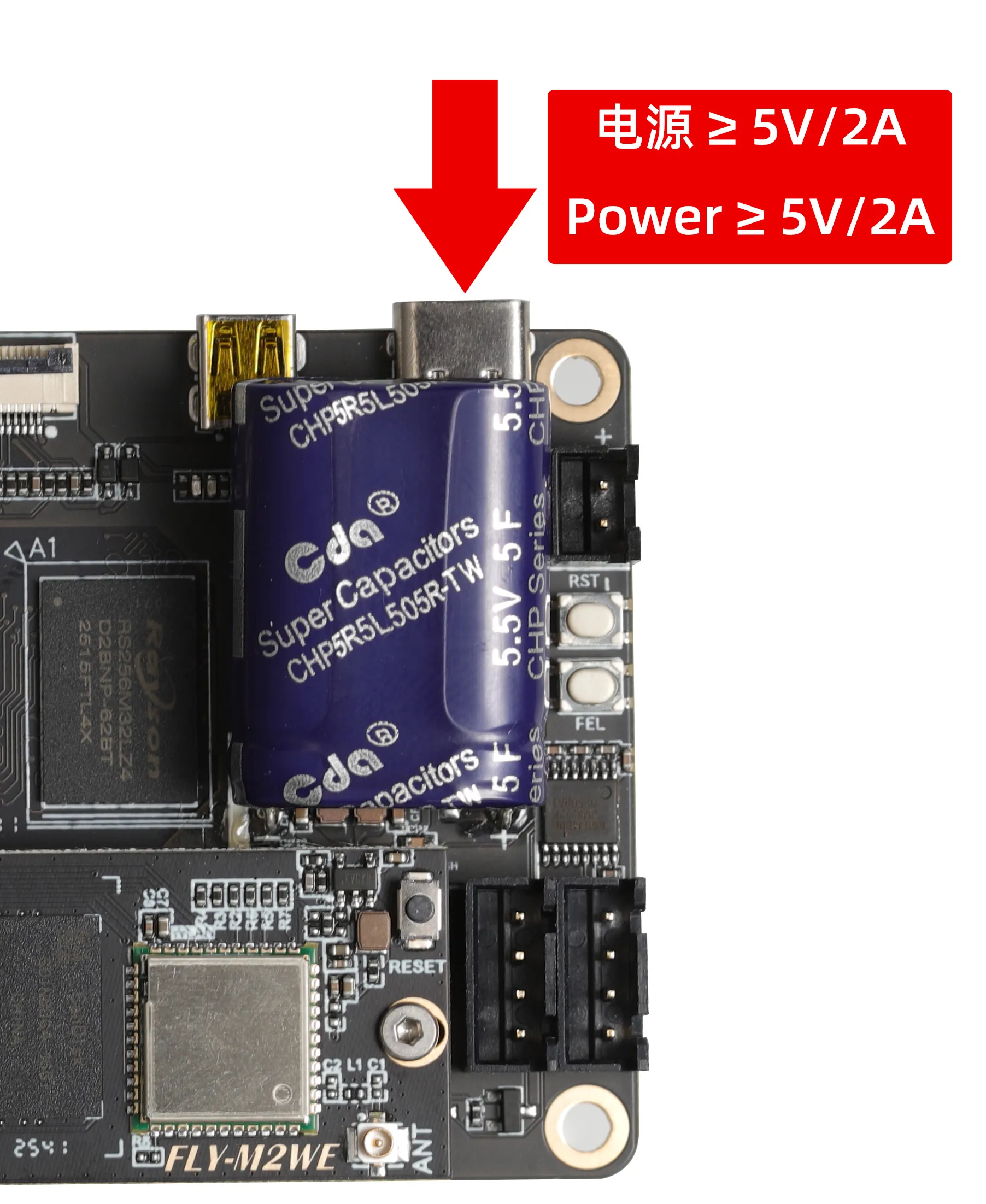

使用TypeC接口供电​

  • 请使用功率≥5V/2A的电源供电
