CAN Firmware Compilation

Start Compilation

  • A host machine with the installed klipper service is required Connect via SSH over the network
  • Make sure the device is connected to the host machine
  • Note: Please use a regular host machine, such as a Raspberry Pi FLY board, etc. If it's a modified host machine (e.g., WiFi stick, Redmi, etc.), due to too many issues, we cannot provide technical support for these machines
warning
  • To switch from the ROOT user to a regular user, you can enter the command below
  • Do not use the ROOT user
  • For the fly user, you can directly enter: su fly. For non-fly users, please replace <your host machine username> with your host machine's username!
su <your host machine username>
tip
  • 请确保上位机可以正常联网
  • 固件编译前需要使用SSH通过网络登录上位机
  • 请不要使用串口工具登录上位机

Klipper固件编译和配置页面操作说明

tip

请确保键盘输入法为半角模式,即英文模式

  1. 键盘上键,下键,用于上下移动光标来选中菜单项
  2. 确认键Enter 或 空格键Space,用于勾选菜单或进入子菜单
  3. 退出键ESC,用于返回上一级菜单
  4. Q键,用于退出Klipper固件配置页面
  5. Y键,在退出Klipper固件配置页面时,如果有提示,则点击Y键保存配置文件
warning

如果配置页面选项比较少,请先勾选[ ] Enable extra low-level configuration options,用于显示部分隐藏选项

Below is the introduction on how to compile the firmware:

  • After connecting to SSH, enter the following command and press Enter:

    cd ~/klipper && rm -rf ~/klipper/.config && rm -rf ~/klipper/out && make menuconfig
  • Among them, rm -rf ~/klipper/.config && rm -rf ~/klipper/out is to delete previous compilation data and firmware, and make menuconfig is to compile the firmware. After execution, the following interface should appear:

  • Select Enable extra low-level configuration options and press Enter

  • Enter the menu Micro-controller Architecture and then select Raspberry Pi RP2040/RP235x and press Enter

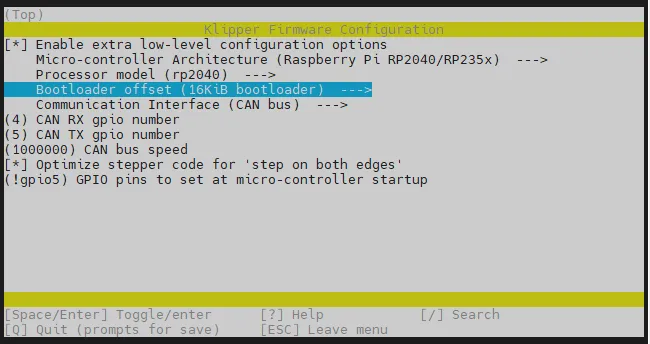

  • Select Bootloader offset, select: 16KiB bootloader

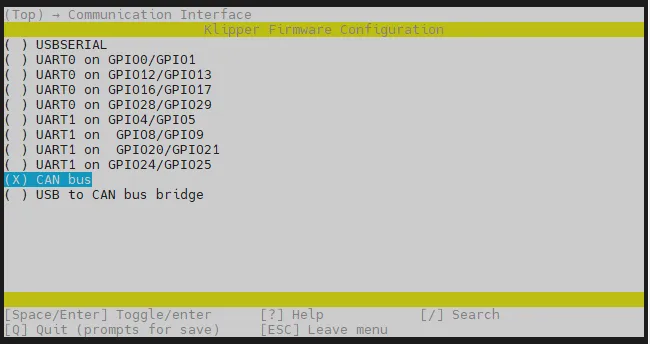

  • Select Communication interface, select: CAN bus

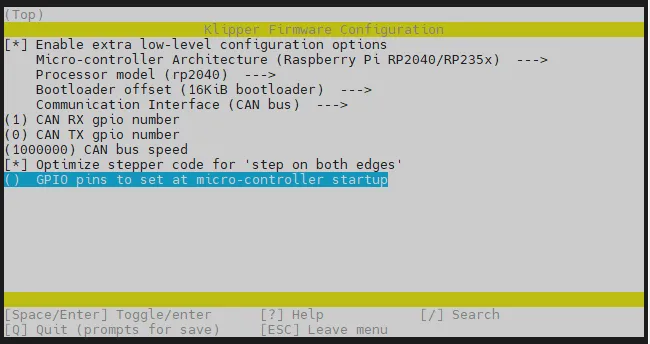

  • Select (4) CAN RX gpio number, delete 4 and input 1

  • Select (5) CAN TX gpio number, delete 5 and input 0

  • Select GPIO pins to set at micro-controller startup, input: !gpio5
warning

Please enter !gpio5 in English input mode.

  • Please check against the above picture to ensure it is consistent with the picture, then proceed to the next step
  • Press Q, a Save configuration message will appear, press Y again at this time
  • Now the configuration should be saved and you should have exited to the command line interface
  • Enter the following command to start compiling, it takes some time
make -j4
  • If the output below appears, compilation is successful

    Linking out/klipper.elf
    Creating bin file out/klipper.bin

Host Machine Configuration

warning

If your host machine is a FLY host machine, skip the Host Machine Configuration step.

warning

If your host machine is a non-FLY host machine, please execute the following steps.

Check if the Host Machine Supports CAN

  • If it is a FLY host machine, this operation is not required.
  • If your system is Ubuntu, you need to configure Ubuntu CAN0, this document has not been updated yet.
  • Enter the following command to check if the system supports CAN
sudo modprobe can && echo "Your kernel supports CAN" || echo "Your kernel does not support CAN"
  • After entering the above command, if your kernel supports CAN, it will return: Your kernel supports CAN; if not supported, it will return: Your kernel does not support CAN.
tip

If it returns Your kernel supports CAN, you can proceed to the next step to configure CAN0. If it returns Your kernel does not support CAN, please replace your host machine system or replace the host machine!

Configure CAN0

  • This command overwrites the original CAN0 configuration of the system, and the system needs to be restarted after execution.
  • Please choose one according to the actual situation (Klipper default CAN rate is 1M, it is recommended to use 1M rate)
warning

For 1M rate, enter the following command

sudo /bin/sh -c "cat > /etc/network/interfaces.d/can0" << EOF
allow-hotplug can0
iface can0 can static
bitrate 1000000
up ifconfig $IFACE txqueuelen 1024
pre-up ip link set can0 type can bitrate 1000000
pre-up ip link set can0 txqueuelen 1024
EOF
warning

For 500K rate, enter the following command

sudo /bin/sh -c "cat > /etc/network/interfaces.d/can0" << EOF
allow-hotplug can0
iface can0 can static
bitrate 500000
up ifconfig $IFACE txqueuelen 1024
pre-up ip link set can0 type can bitrate 500000
pre-up ip link set can0 txqueuelen 1024
EOF
  • Restart the device
sudo reboot

Search for Devices

  • Please ensure that the host computer can access the Internet normally and ensure that the data cable connecting the lower computer to the host computer has data transmission function.
  • After SSH connecting to the host computer, input lsusb and press Enter. If the information circled in the picture below is displayed, you can proceed to the next step.
    • If there is no feedback information, this is a system problem of the host computer, and we are powerless. You need to replace a confirmed normal system or replace the host computer.
    • If there is no lsusb command prompt, you can execute the following command to install it:
      sudo apt-get install usbutils
  • 1d50:606f belongs to the device you will use this time.
  • Some host computers may not fully display or fail to display due to system problems.
  • If the lsusb command can display the device but there is no 1d50:606f, please try to replace the data cable and connect the motherboard to another USB port on the host computer.
Notice

You can proceed to the next step only when there is 1d50:606f.

Burn Firmware

  • Before burning the firmware, connect the tool board to UTOC or the main board flashed with bridge firmware using an XT30 data cable, and refer to the wiring diagram below
  • Please pay attention to whether the DIP switch is set to the corresponding position
  • Please ensure that the resistance value between CAN H and CAN L is around 60Ω when powered off; if it is 120Ω, you need to connect a 120Ω jumper wire; if it is around 40Ω, you need to remove the jumper wire
tip
  • It is recommended not to find the ID or flash the firmware during the printing process.
  • The CAN firmware of the same motherboard or tool board Katapult and the CAN firmware of Klipper have completely consistent IDs.
warning
  • Please ensure that the CAN network of the host computer has been configured.
  • You can use the following command to search for the CAN ID only when 1d50:606f appears after running lsusb.
  • The CAN rate of the tool board must be consistent with the host computer, otherwise the ID cannot be found and burned.
  • Execute the following command to query the CANBus UUID:

    ~/klippy-env/bin/python ~/klipper/scripts/canbus_query.py can0

    Use this command to burn the fast system, replace <your motherboard ID> with the ID queried in the previous step.

    python ~/klipper/scripts/canbus_query.py can0
    • After inputting, one of the following situations will appear depending on your machine, the following are references:

      • First type: The motherboard with the bridge firmware installed will display an ID and prompt Application: Klipper
      • Second type: The motherboard with the bridge firmware installed and the tool board that needs to be burned with firmware will display two IDs
      • Third type: Using UTOC with the tool board that needs to be burned
      • Tip: UTOC does not display the ID
      • Fourth type: No ID prompt, usually because the klipper is occupied, the CAN0 rate of the host computer is incorrect, or there is a wiring anomaly
    • Normally, if the tool board that needs to be burned is in the CANBOOT state, it will prompt Application: CanBoot and the corresponding firmware light will flash. At this time, you need to burn the Klipper firmware, otherwise it cannot be connected!!!

    • Tip: If it is Klipper firmware and the ID has been entered into the configuration, the ID will not be displayed and will be occupied by Klipper. You need to disable the corresponding ID and restart the motherboard completely after cutting off the power.

    warning
    • If the UUID is not queried, please refer to the documentation below.
    • CAN Problem Collection

Firmware Burning

  • Replace 241696050c56 in the following command with the UUID found in the UUID query, note that there is a space after -u

    python3 ~/klipper/lib/canboot/flash_can.py -u 241696050c56
  • As shown in the figure below, if CAN Flash Success appears, the burning is successful.

Firmware Update

  • If you need to update the firmware, you only need to re-execute the burning instruction after compiling the firmware.
  • But please make sure that the corresponding ID can be found or Klipper is already connected.
    python3 ~/klipper/lib/canboot/flash_can.py -u  <MCU ID>

Confirm Firmware Startup

  • If the firmware starts up normally, the LED will light up
