Onboard DIP Switch Introduction

Note

Due to the high resolution of the images, it may be difficult to see them online. Please place your mouse cursor over the wiring diagram, right-click, and select Save image as to save the image to your desktop for a clearer view!

Work Mode Selection

Note

Please note that SHT36 V3 supports three connection methods, and you need to modify the DIP switch and burn the firmware to connect properly.

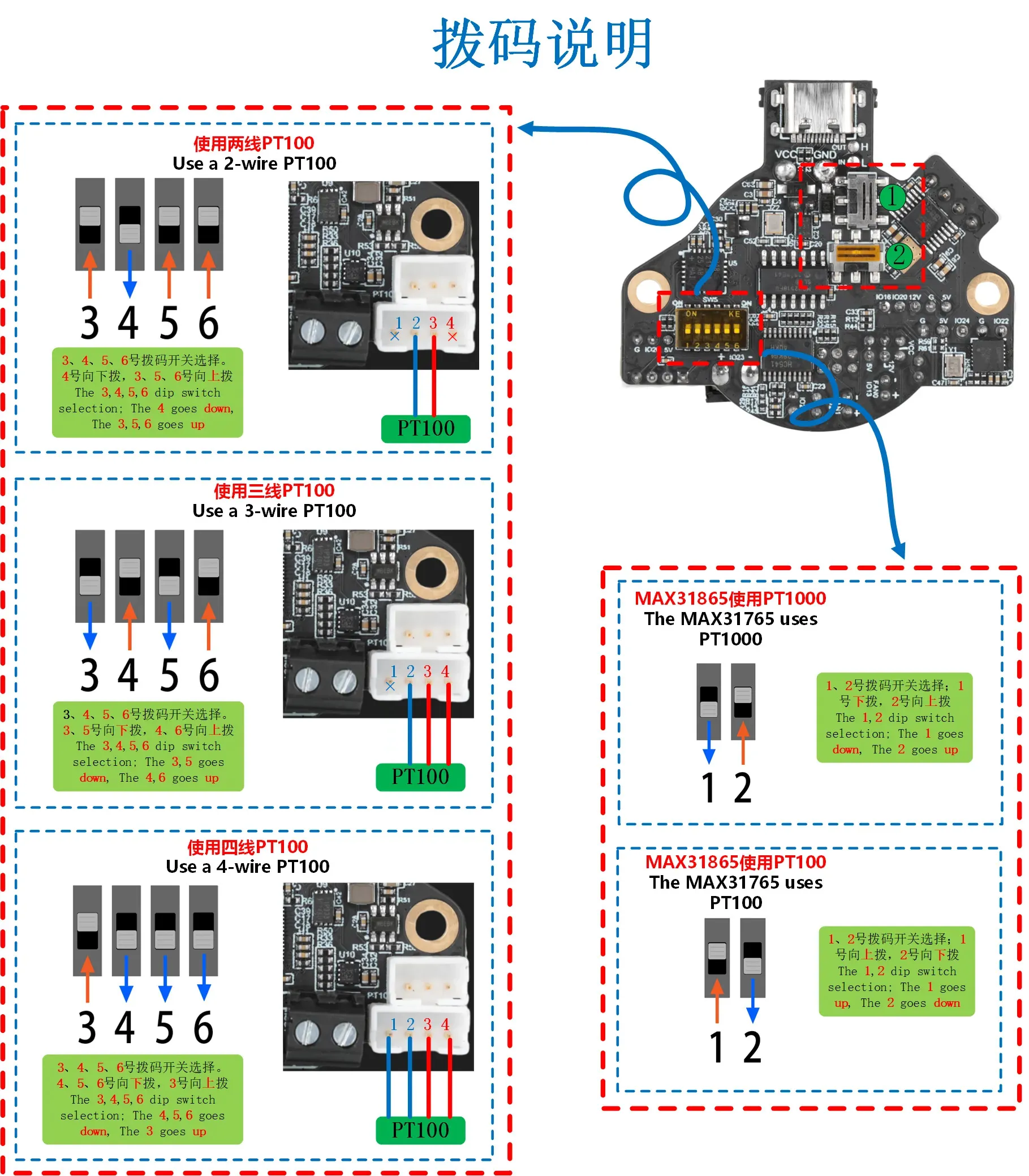

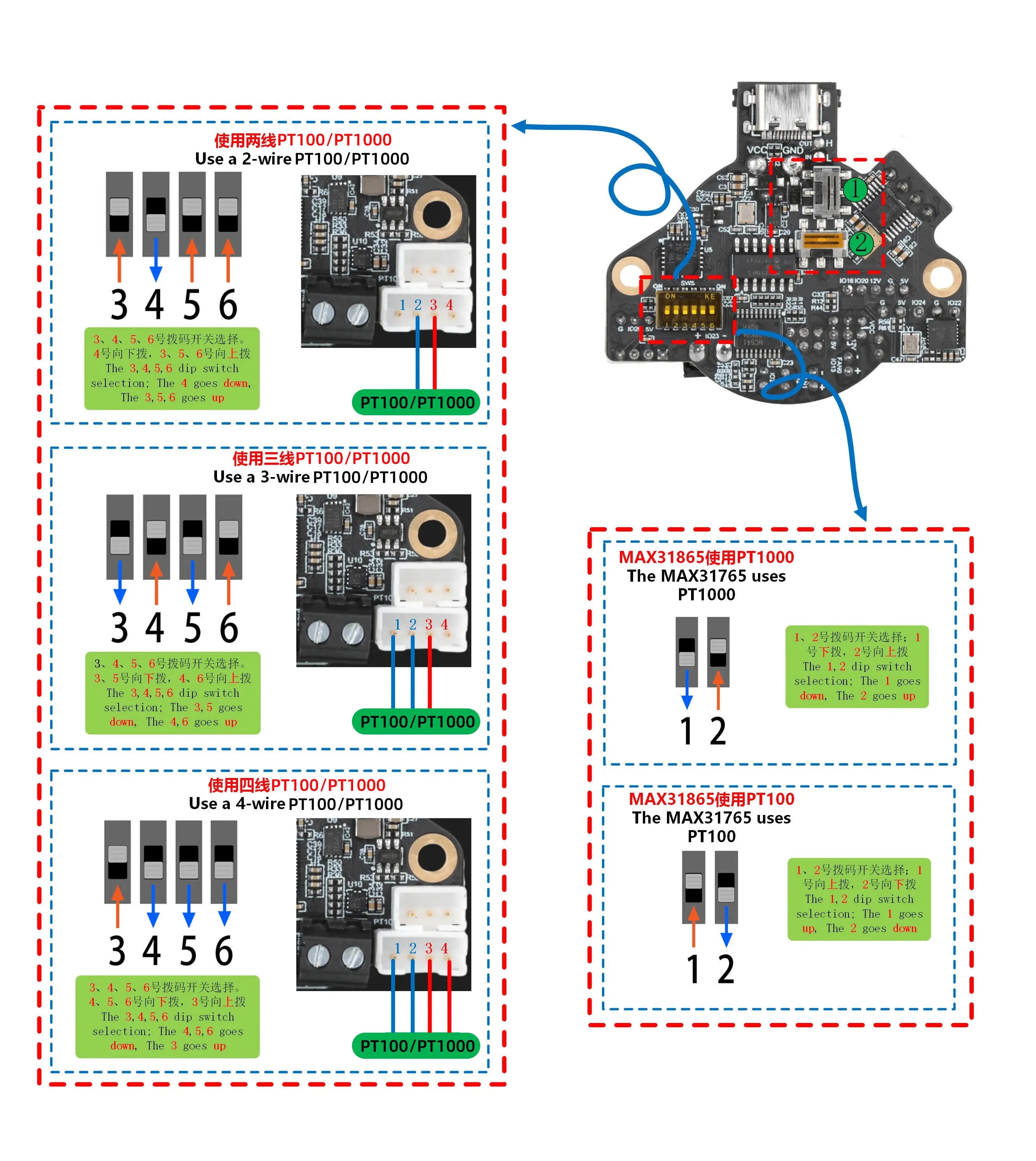

31865 DIP Switch Selection

• Please note that the DIP switch is set by default to point downwards
