SB2040 V3

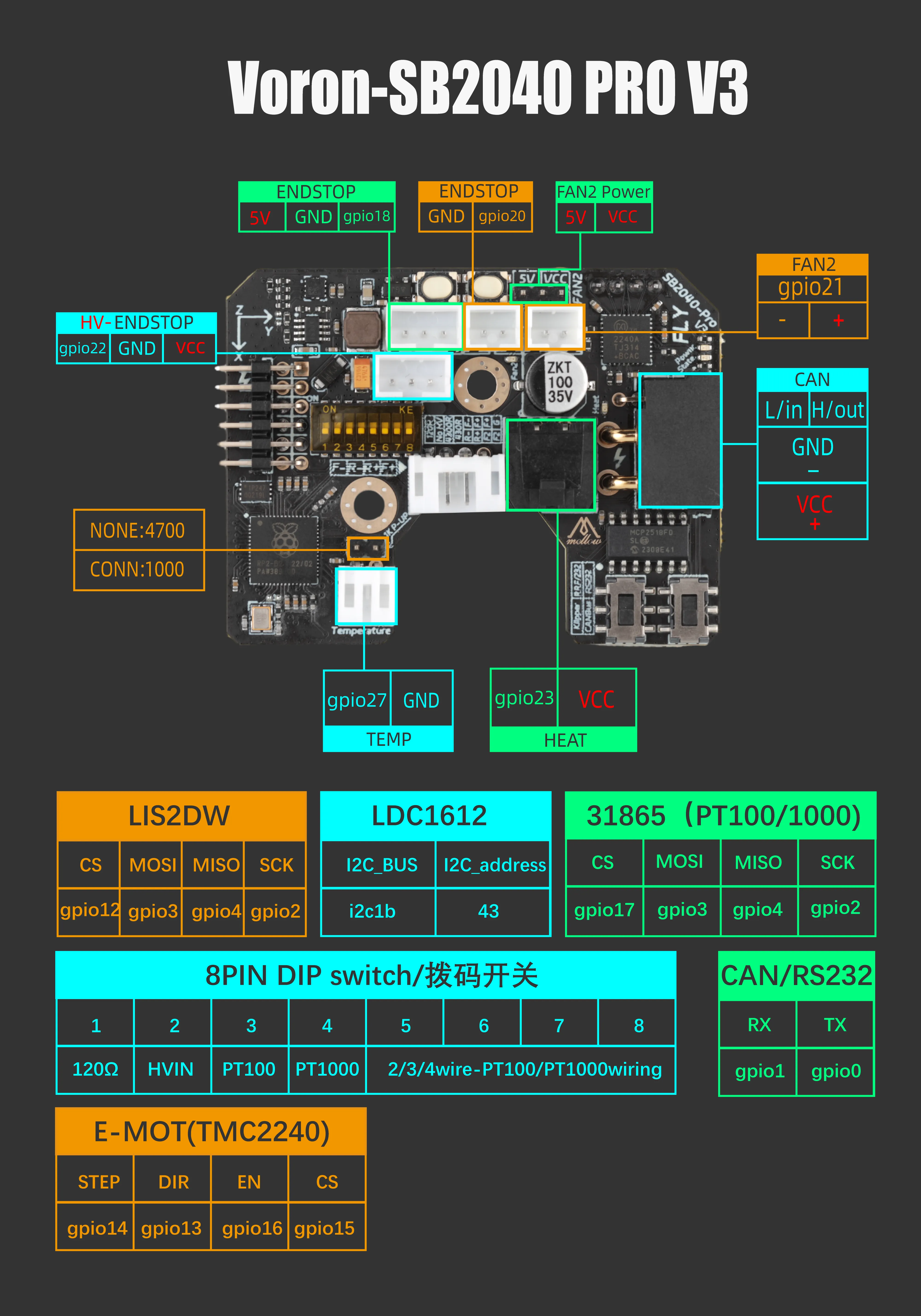

Motherboard Reference Wiring

Note

Due to the high resolution of the images, it is difficult to see them clearly online. Please place your mouse cursor over the wiring diagram, right-click, and select "Save Image As" to save the image to your desktop for a clearer view!!!
