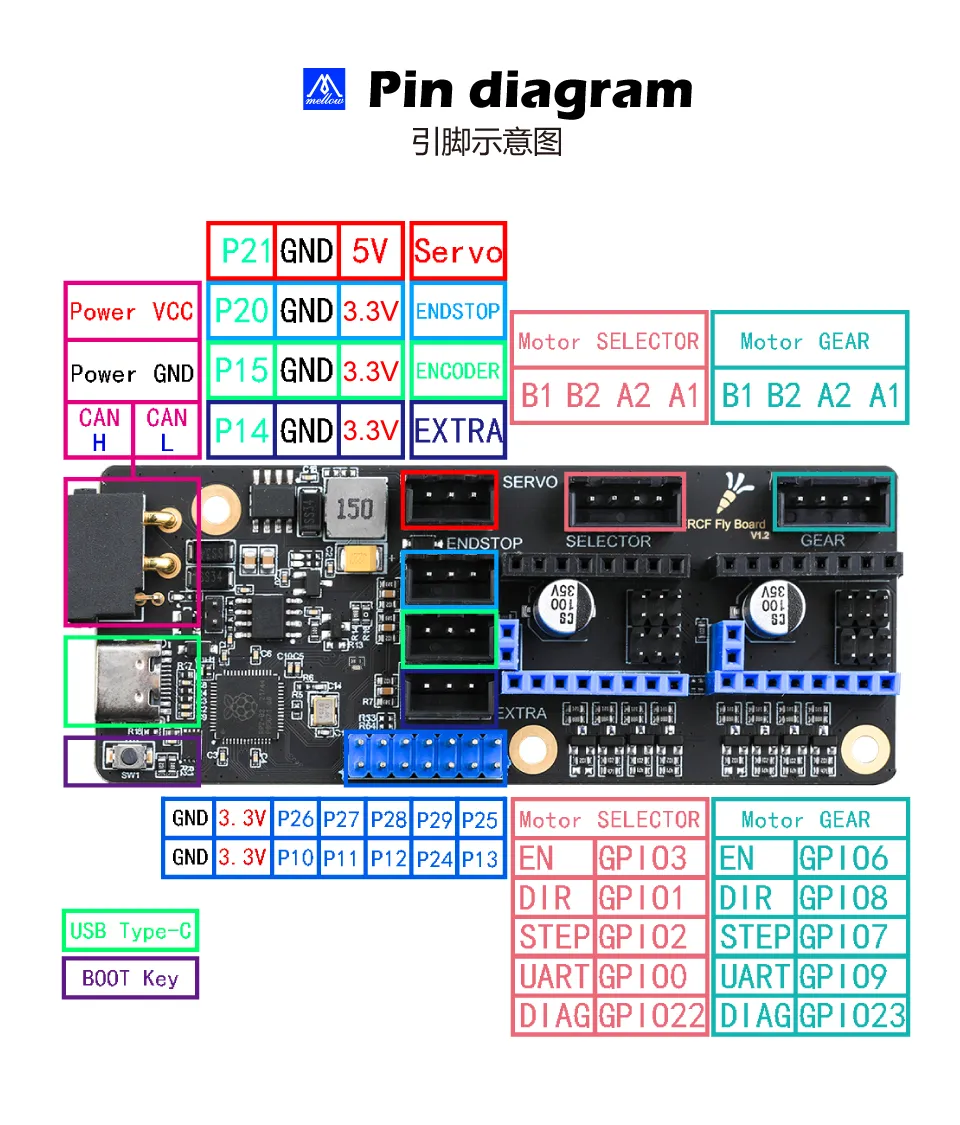

Motherboard Reference Wiring

Important Notes

Due to the high resolution of the images, they may not be clearly visible when viewed directly on the webpage. Please move your mouse cursor over the wiring diagram, right-click, and select "Save Image As" to save the picture to your desktop for better viewing!!!
