Connecting to Host Computer via SSH

dangerous

• This document is applicable only to the FLY host computer
• For compiling and flashing firmware, please refer to the network connection tutorial instead of the serial port connection tutorial

• You can connect to the device via serial port or WIFI
• Please prepare MobaXterm_Personal or other SSH terminal tools in advance
• Please ensure the SD card or M2WE is available and has the corresponding host computer system flashed
• If the host computer cannot start normally, please remove peripherals such as drivers, limit switches, fans, etc.!!!
• Finally, connect to SSH via network for convenient firmware compilation!!
• For compiling firmware, please see the tutorial on connecting to the host computer via WIFI or Ethernet

Install System Card

• Need to ensure the system card has the corresponding system flashed, otherwise it will not boot

M2WE Installed on PI Diagram

TF Card Installed on PI Diagram

Power Supply

• Use a USB Type-C cable to connect the FLY host computer to your PC
• Ensure the USB Type-C cable supports data transfer!
• After the system starts, the indicator light will flash rapidly!!
• Flashing indicates that the system has started


Fly-FAST SSH Connection Tutorial

Serial Connection

Connecting to Host via Serial SSH

• If the motherboard is properly connected to the computer, you can see the CH340 port by opening the Device Manager

• Open MobaXterm and set it up as shown below, selecting the port you saw in the Device Manager

• If everything is working properly, you should see the boot screen

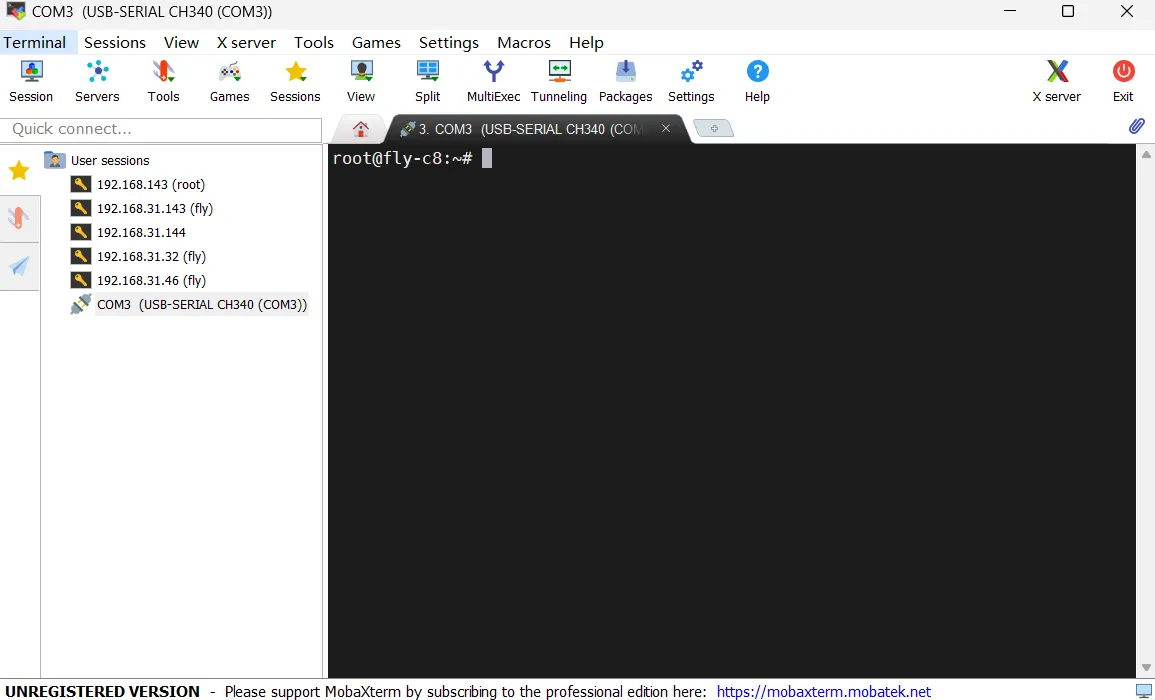

• After a while, if you see a screen like the one below, it means the system has booted successfully

If after a few minutes the screen remains blank like the image below, press the Enter key a few times

• Please note that for the FAST system, you need to enter the username and password, and the password will not be visible

• FlyOS-FAST default username is root, and the default password is mellow

• After pressing Enter, you will see the content shown in the image below



tip

• Seeing the interface below indicates a successful login
• FAST system updated the appearance in version V1.3.0

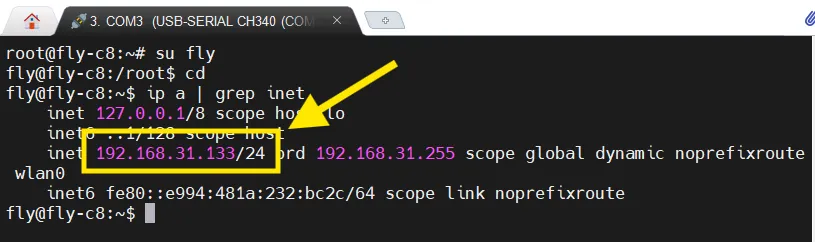

• If you need to view the device IP, ensure the device is connected to the network via Ethernet or Wi-Fi Connect to Wi-Fi

Network Connection

Connecting to Host via Network IP

• Please log into the router admin panel to which the host is connected unless you already know the host's IP address
• Make sure you know the username and password of the host
• FlyOS-FAST default username is root, and the default password is mellow
• If the motherboard has already booted and is connected to the network, you can use the following method to connect via SSH
• Open MobaXterm and set it up as shown below, entering the IP address you previously checked, which can also be found in the router admin panel

Note: The username entered in step 4 here is the host's username

• The first time you connect, a window like the one below will pop up, click Accept to proceed

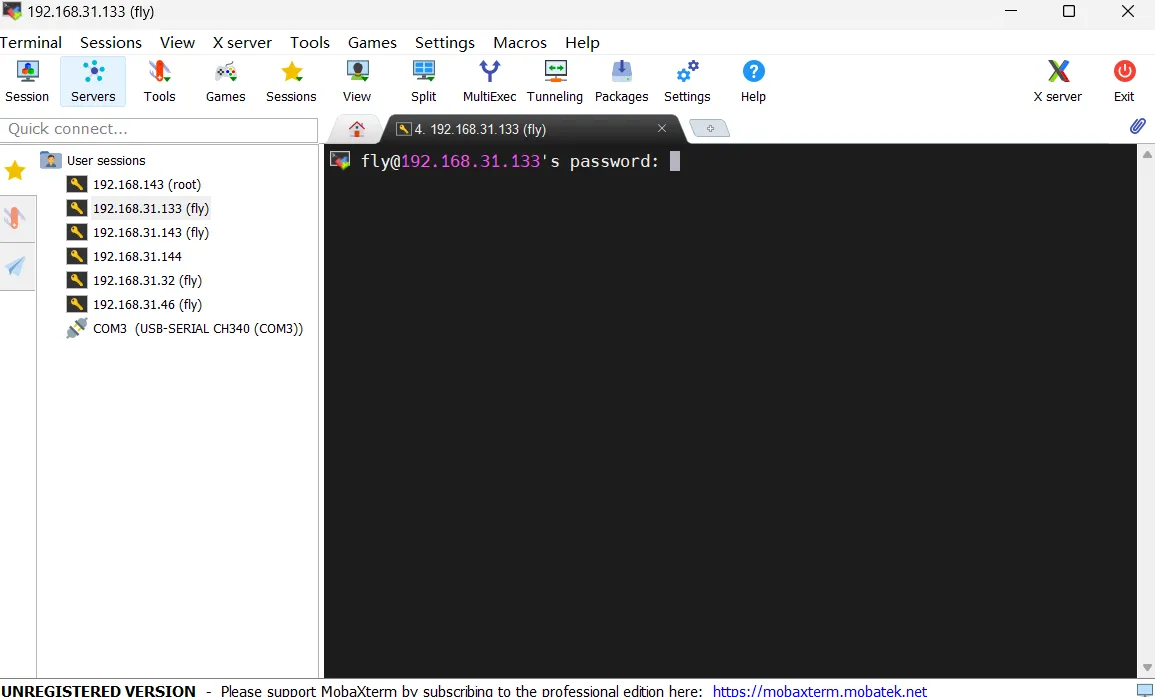

• When prompted to enter a password, type the host's password and press Enter

Note: The password entered here will not be visible, just press Enter after typing it

• For the FLY-FAST system, the username is: root, and the password is: mellow

tip

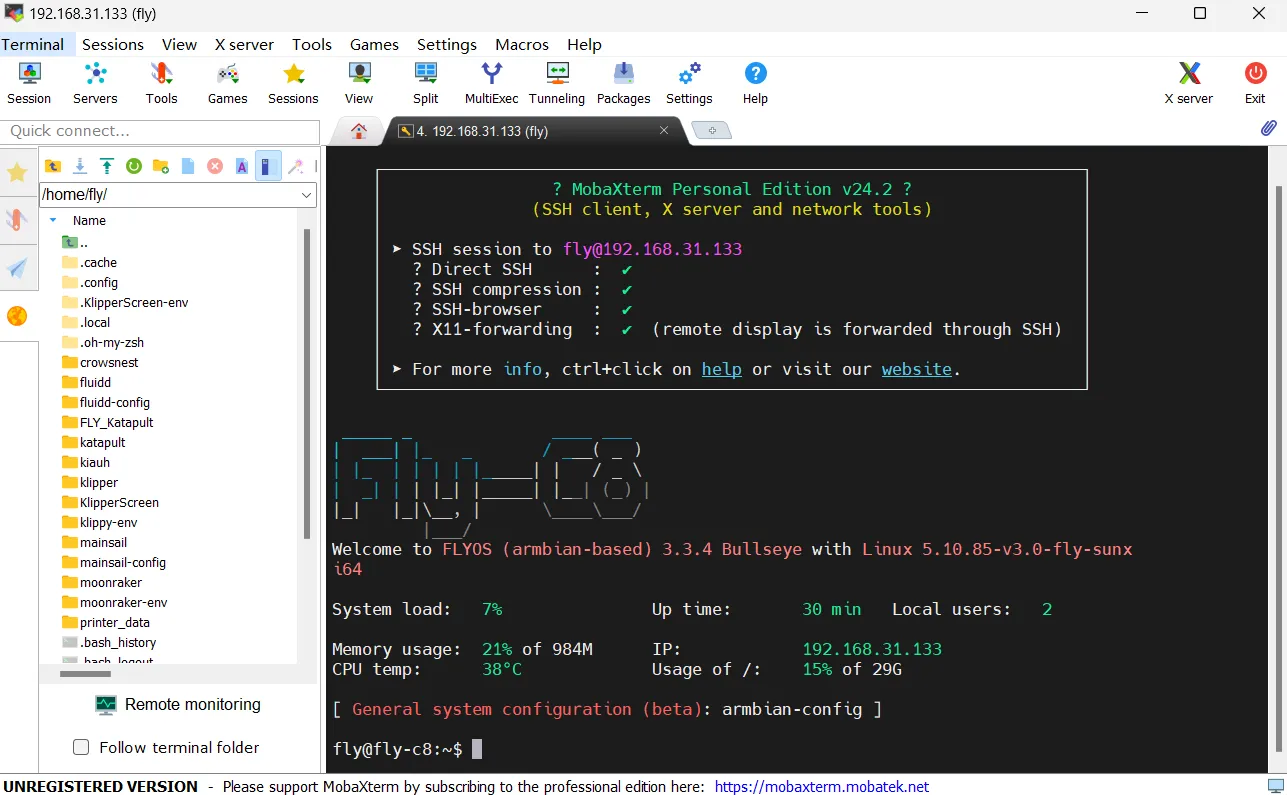

• Seeing the interface below indicates a successful login
• FAST system updated the appearance in version V1.3.0

• Login successful
