Screen Wiring and Configuration
Screen Wiring
- TFT-V2 Screen Wiring

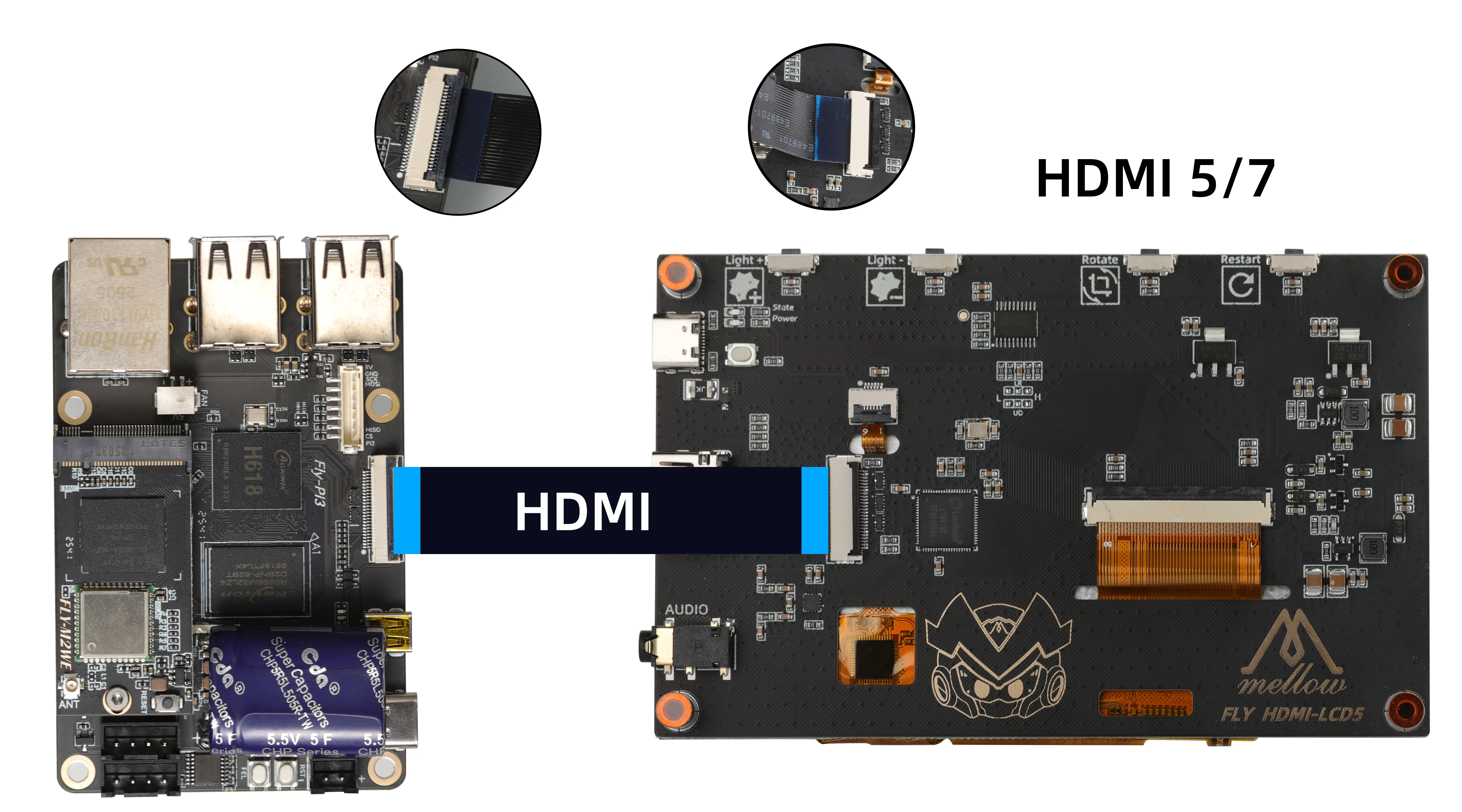

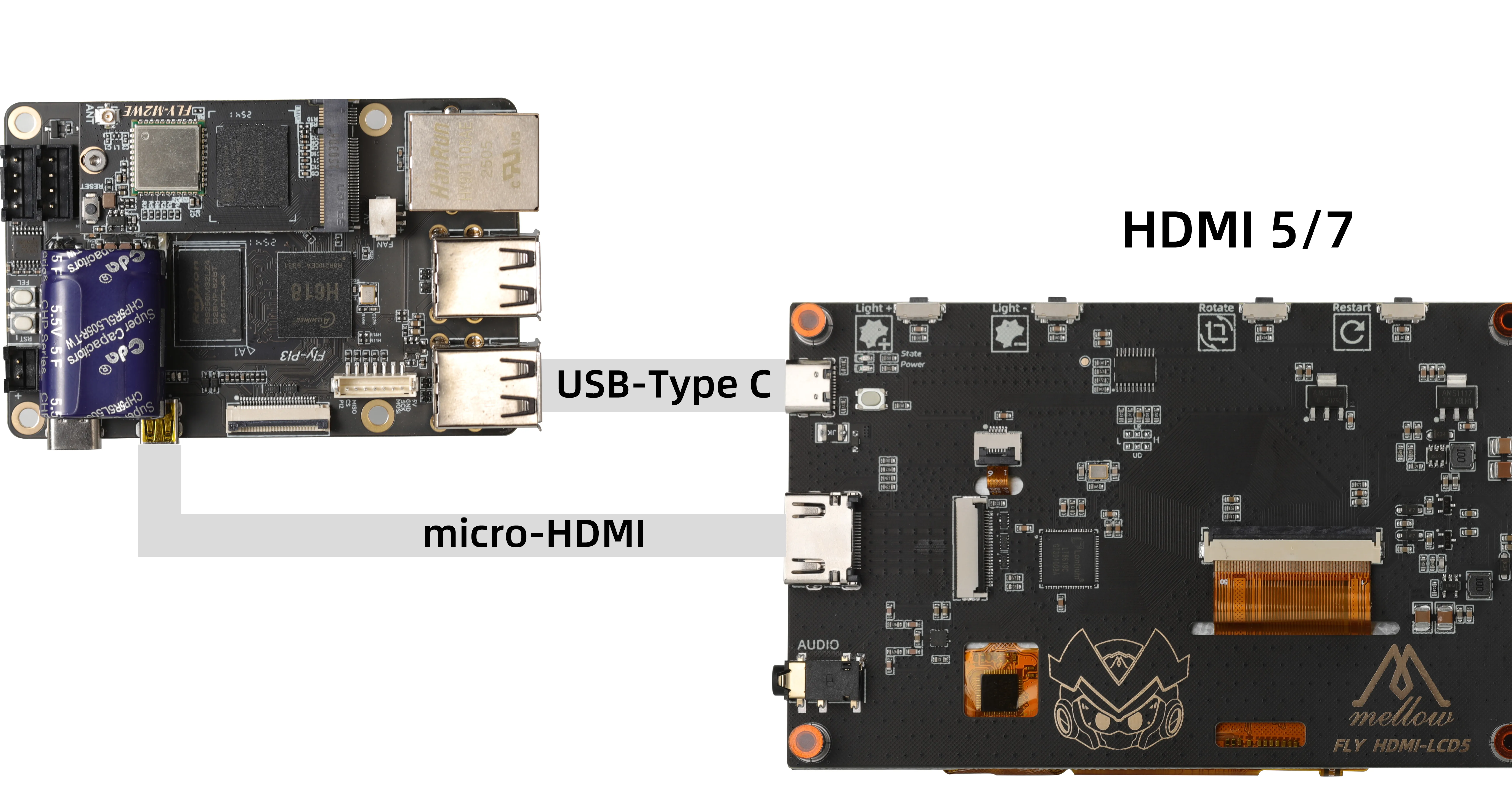

- HDMI Wiring
- Serial Screen Wiring

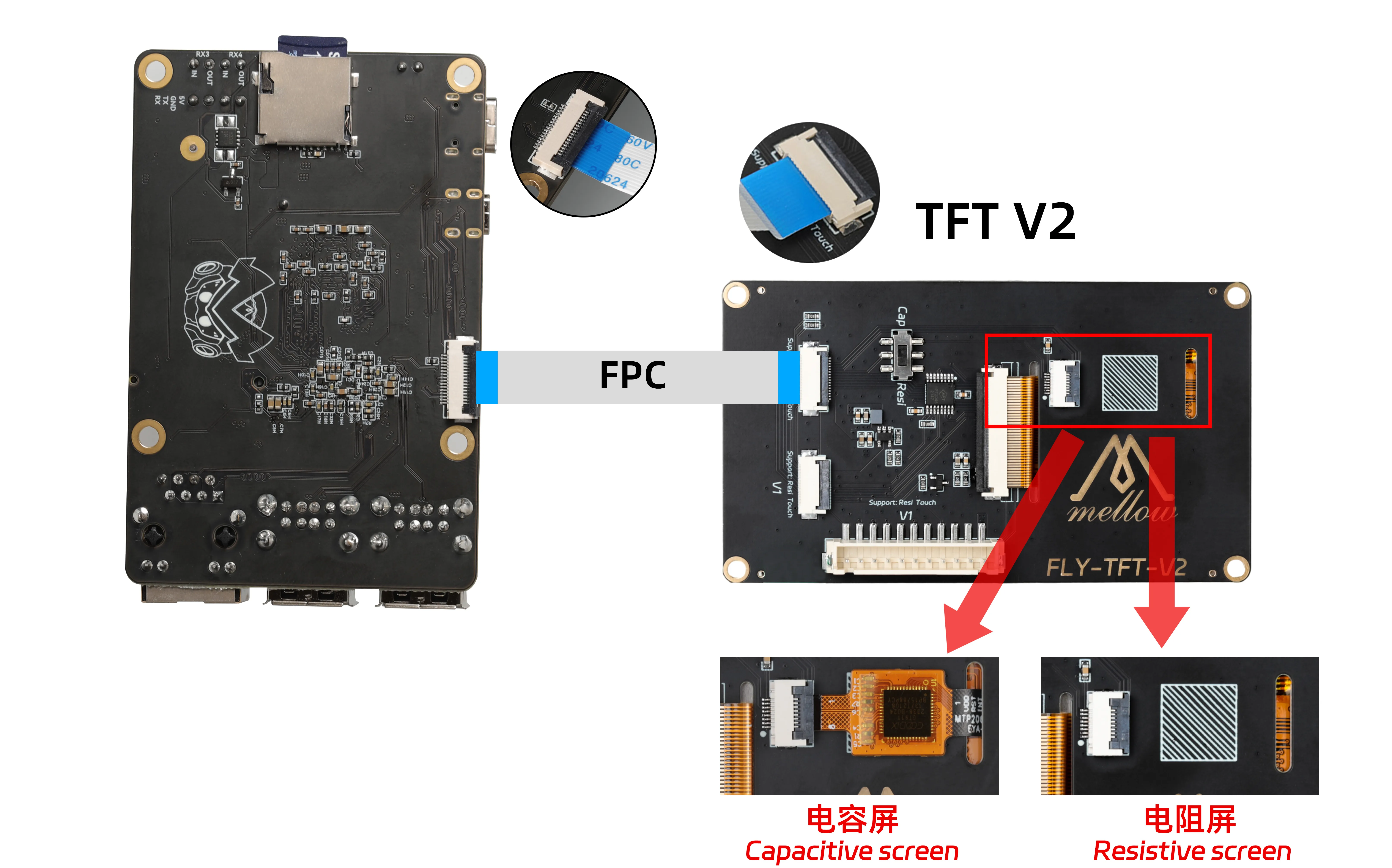

TFT Resistive Touch Screen Wiring
tip
- The TFT screen package includes two FPC flexible cables: one is
14P (narrow)and the other is16P (wide) - Only the
16P (wide)cable can be used for the TFT screen!!! - For
resistive touch screens, switch the screen's DIP switch toResi, otherwise touch will not work - For
capacitive touch screens, switch the screen's DIP switch toCap, otherwise touch will not work
- FLY-Pi V3 TFT Resistive Touch Screen Wiring

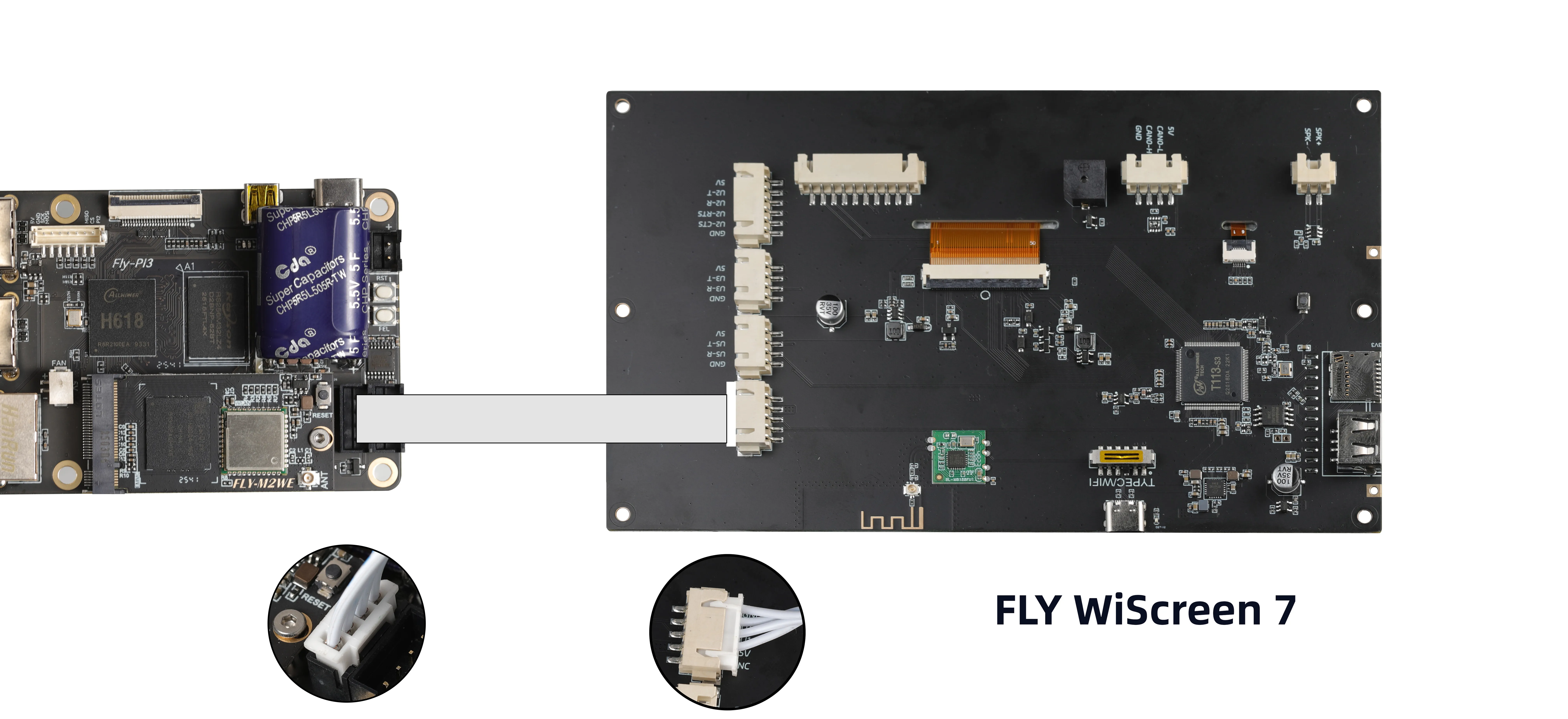

Serial Screen Wiring
Screen Configuration
- FLYOS-FAST System - Screen Configuration
FLYOS-FAST System - Screen Configuration
- Open the device IP address in a browser, for example:
http://192.168.6.110/
For  | For  |
- At this point, you will see the
.flyos-configfolder. Enter this folder and you will find thesys-config.conffile.
- Open the
sys-config.conffile, modify the necessary configuration items, thenSave->Close.
- TFT Resistive Touch Screen Configuration
- TFT Capacitive Touch Screen Configuration
- HDMI Screen Configuration
- Serial Screen Configuration
- Change the value after
screen=tofly-tft-v2-r - Change
klipper_screen=0toklipper_screen=1 - Below is a reference of the modified configuration:
screen=fly-tft-v2-r
- And
klipper_screen=1
- Change the value after
screen=tofly-tft-v2-c - Change
klipper_screen=0toklipper_screen=1 - Below is a reference of the modified configuration:
screen=fly-tft-v2-c
- And
klipper_screen=1
- Change the value after
screen=tohdmi - Change
klipper_screen=0toklipper_screen=1 - Below is a reference of the modified configuration:
screen=hdmi
- And
klipper_screen=1
- Change the
0aftermoon2uartto1 - Change
klipper_screen=1toklipper_screen=0 - Below is a reference of the modified configuration:
moon2uart=1
