Onboard UTOC Usage

Enable DIP Switch

Enabling the DIP switch will occupy one USB port

tip

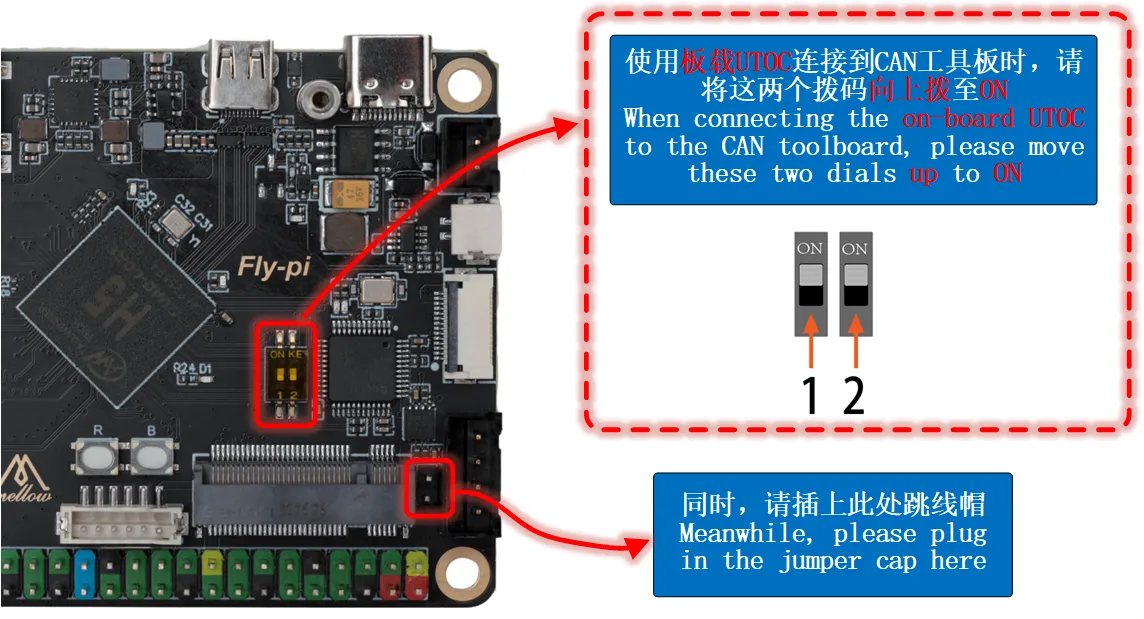

After enabling the onboard UTOC using the DIP switch, the USB port shown in the picture below will be occupied and cannot connect to any devices!!!

Wiring

Loading...

Enable DIP Switch

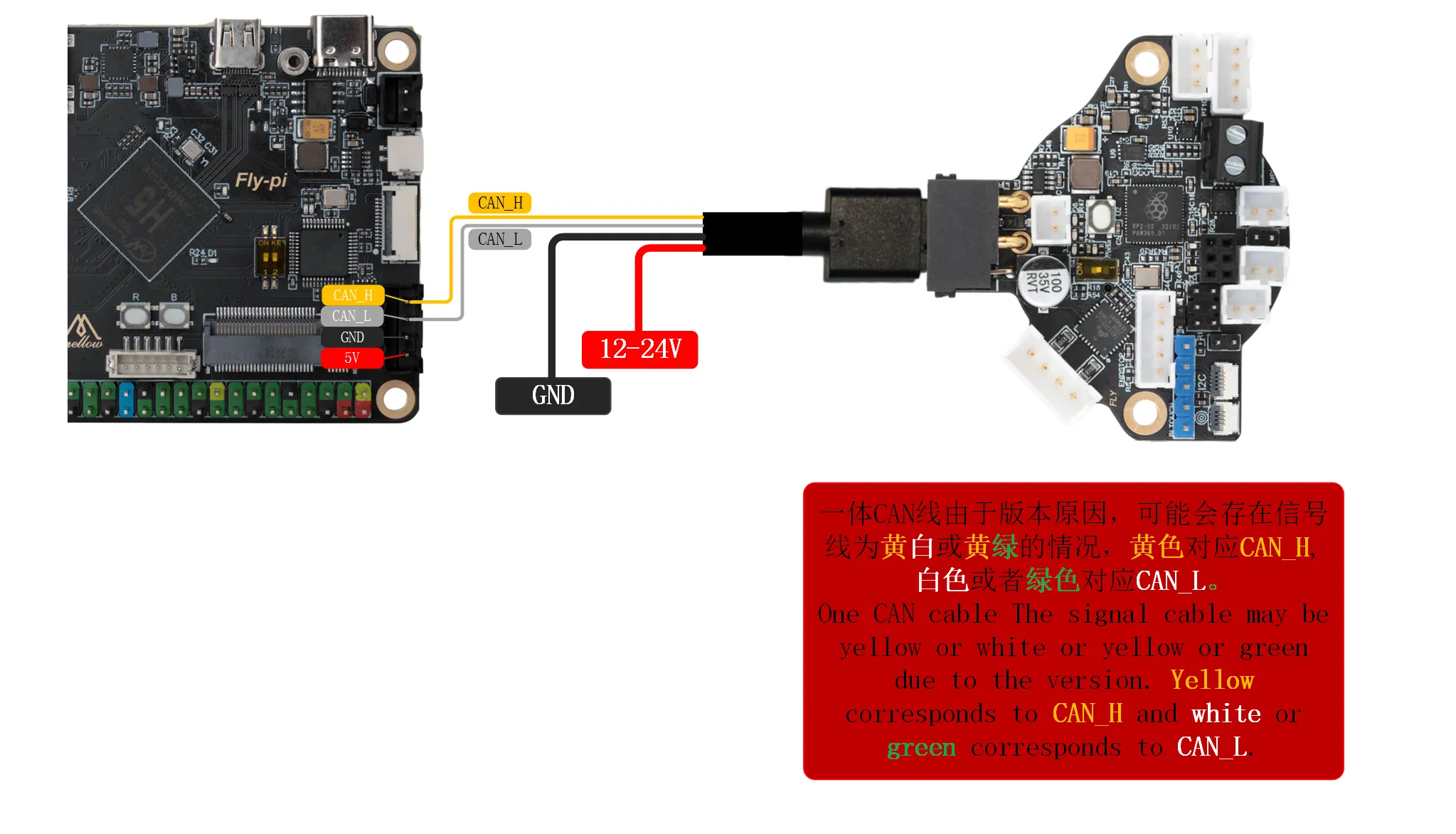

Wiring
