Connecting to the Host via SSH

dangerous

This document applies only to FLY hosts
If you are compiling and flashing firmware, please refer to the network connection tutorial rather than the serial connection tutorial

You can connect to the device via serial port or WIFI
Please prepare MobaXterm_Personal or other SSH terminal tools in advance
Please ensure that the SD card or M2WE has the correct host system flashed
If the host fails to boot properly, please remove peripherals such as drivers, limit switches, fans, etc.!!!
Finally, connect to SSH via network for convenient firmware compilation!!
For firmware compilation, please refer to the tutorial on connecting the host via WIFI or Ethernet

Install System Card

Need to ensure the system card has the corresponding system flashed, otherwise it will not boot

If the motherboard is properly connected to the computer, you can see the CH340 port by opening the Device Manager

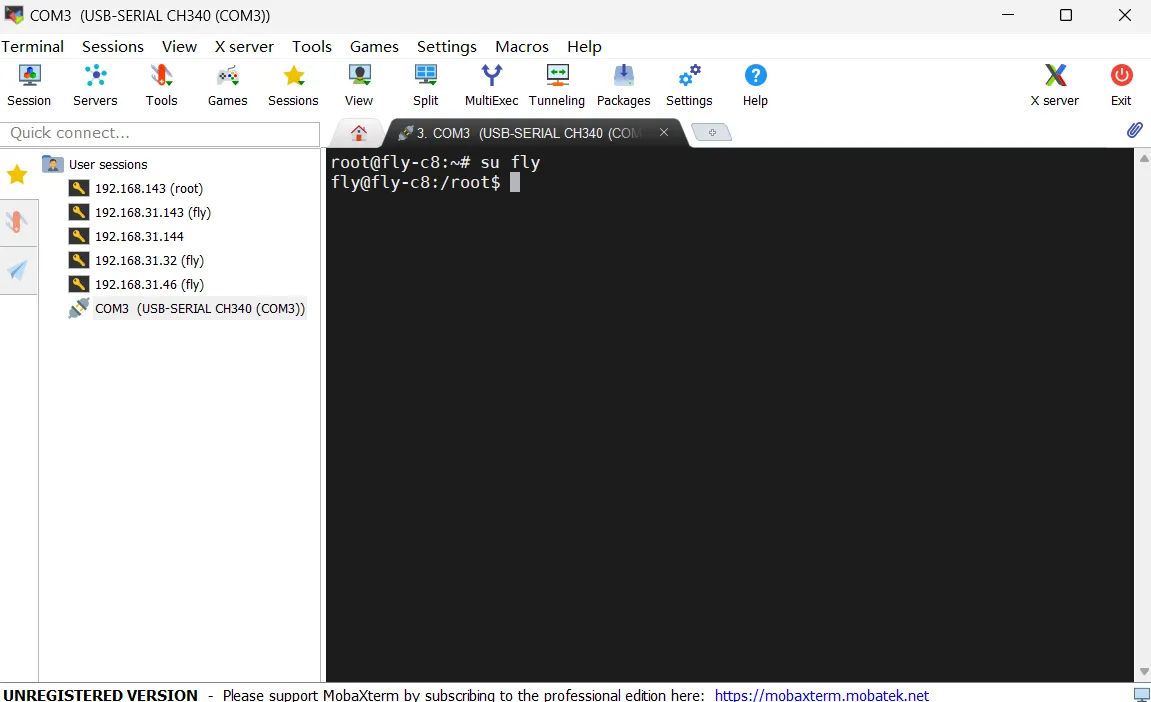

Open MobaXterm and set it up as shown below, selecting the port you saw in the Device Manager

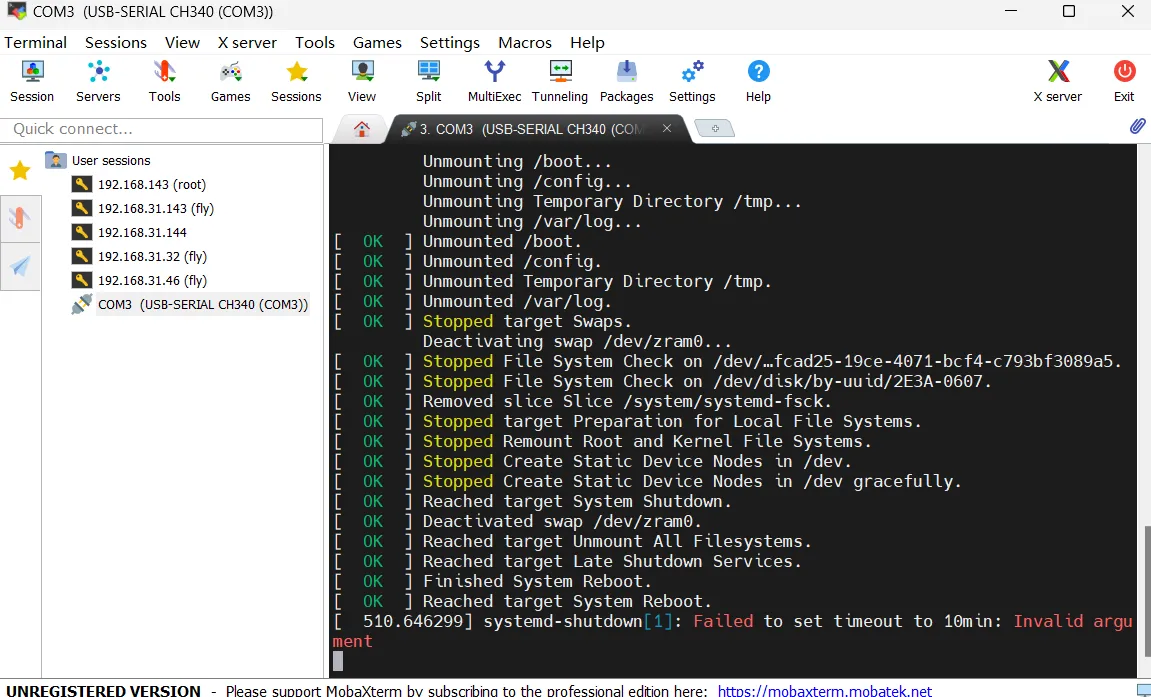

If everything is working properly, you should see the boot screen

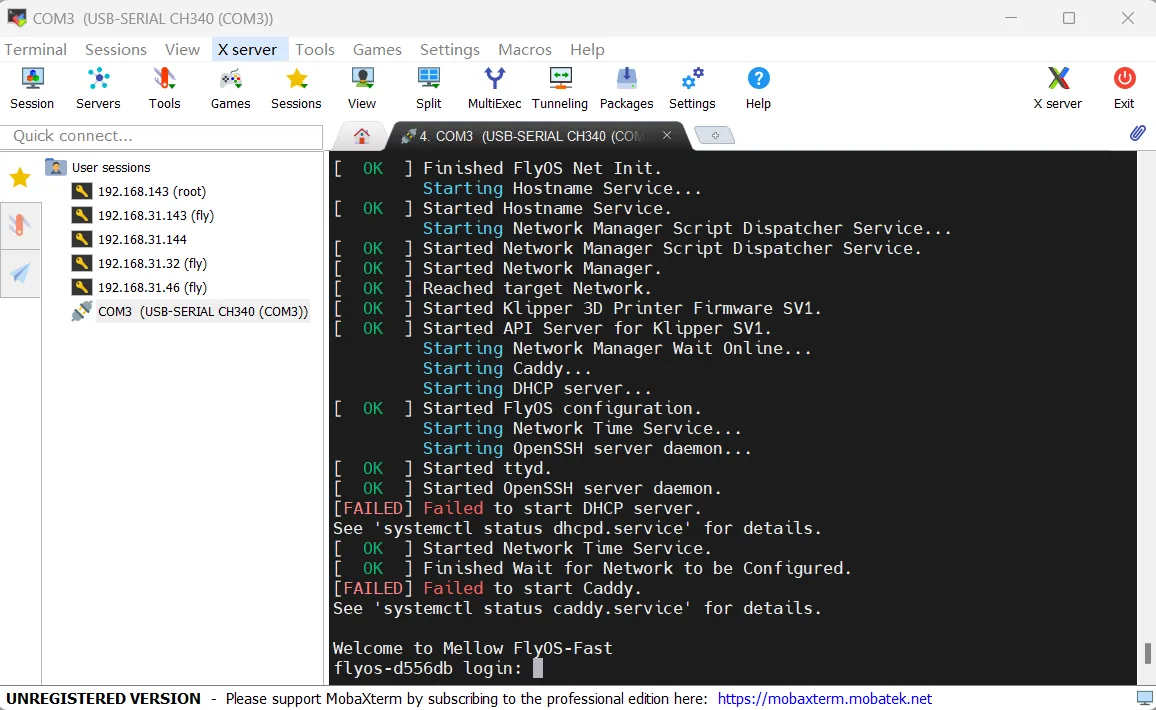

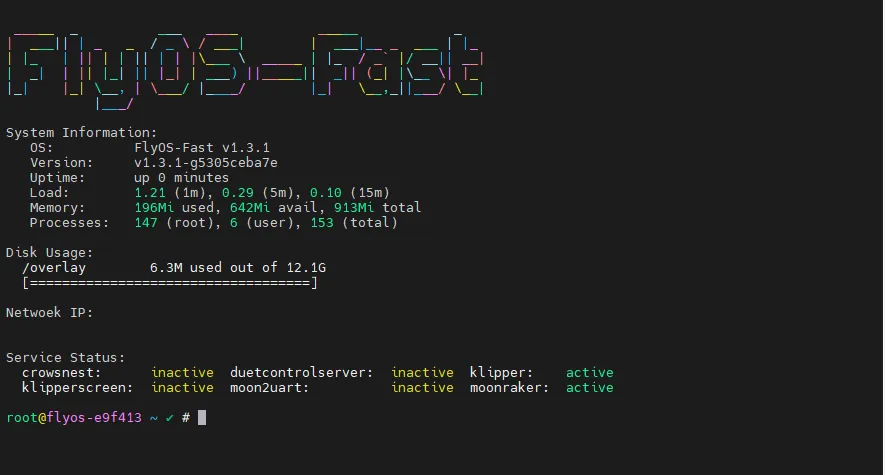

After a while, if you see a screen like the one below, it means the system has booted successfully

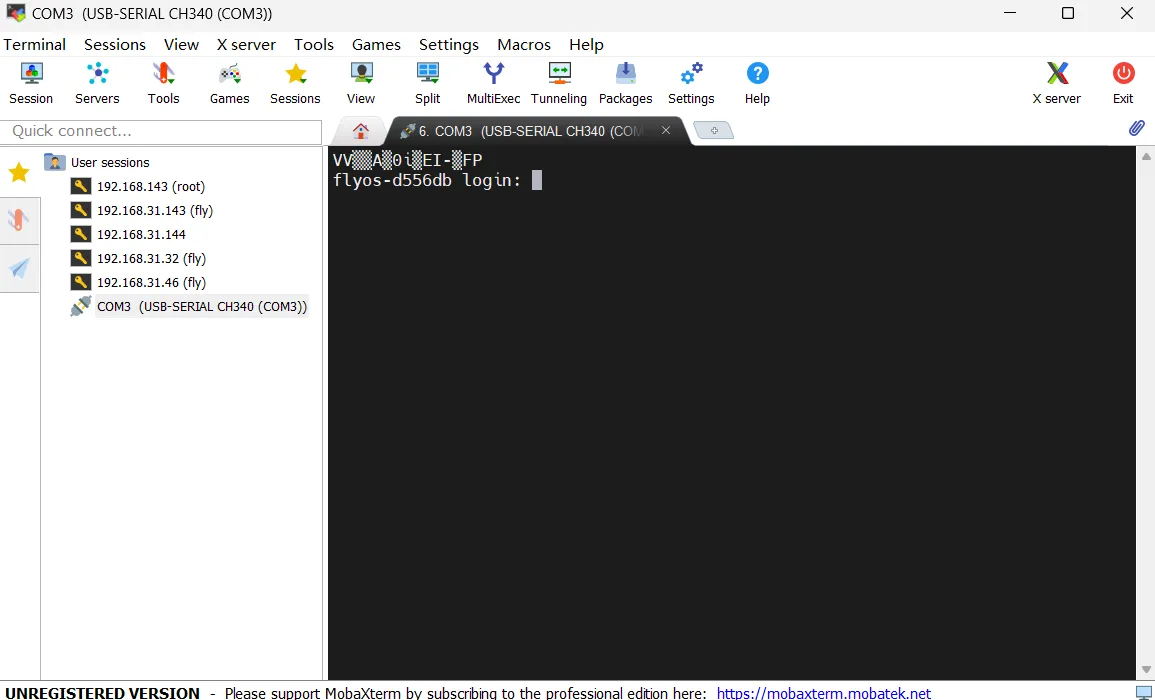

If after a few minutes the screen remains blank like the image below, press the Enter key a few times

Please note that for the FAST system, you need to enter the username and password, and the password will not be visible
FlyOS-FAST default username is root, and the default password is mellow

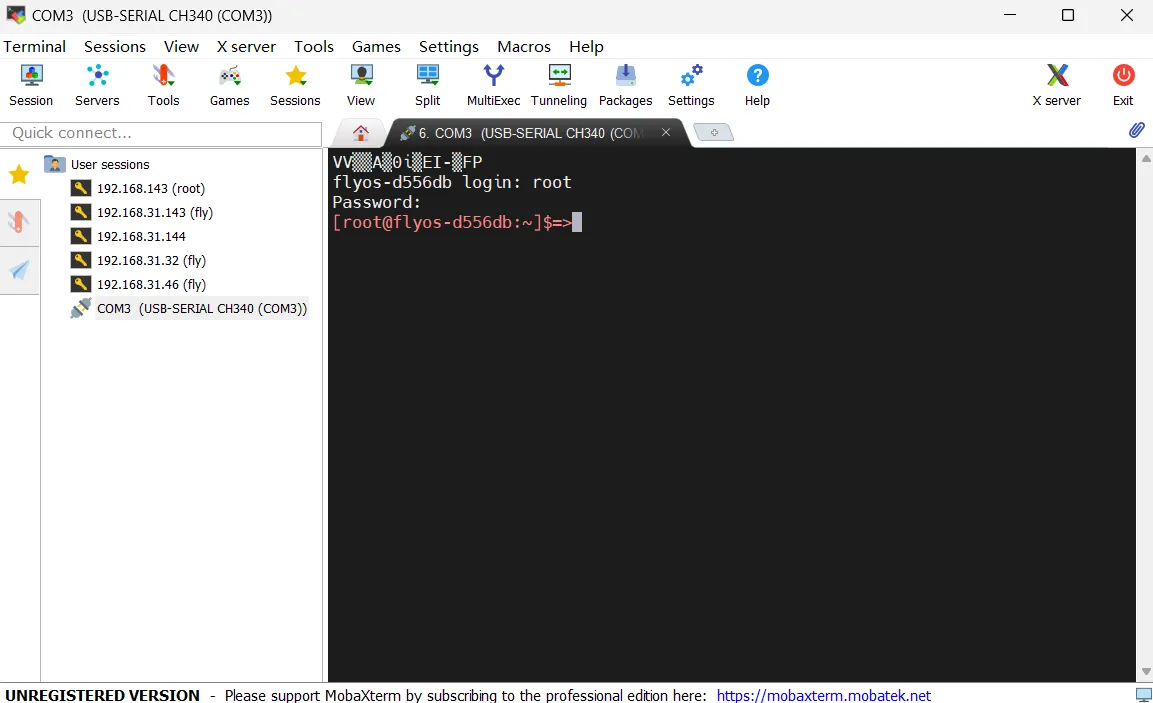

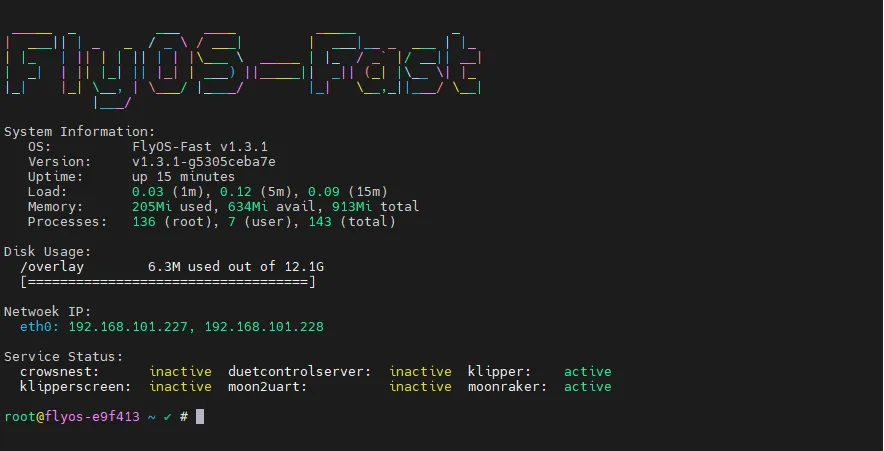

After pressing Enter, you will see the content shown in the image below

tip

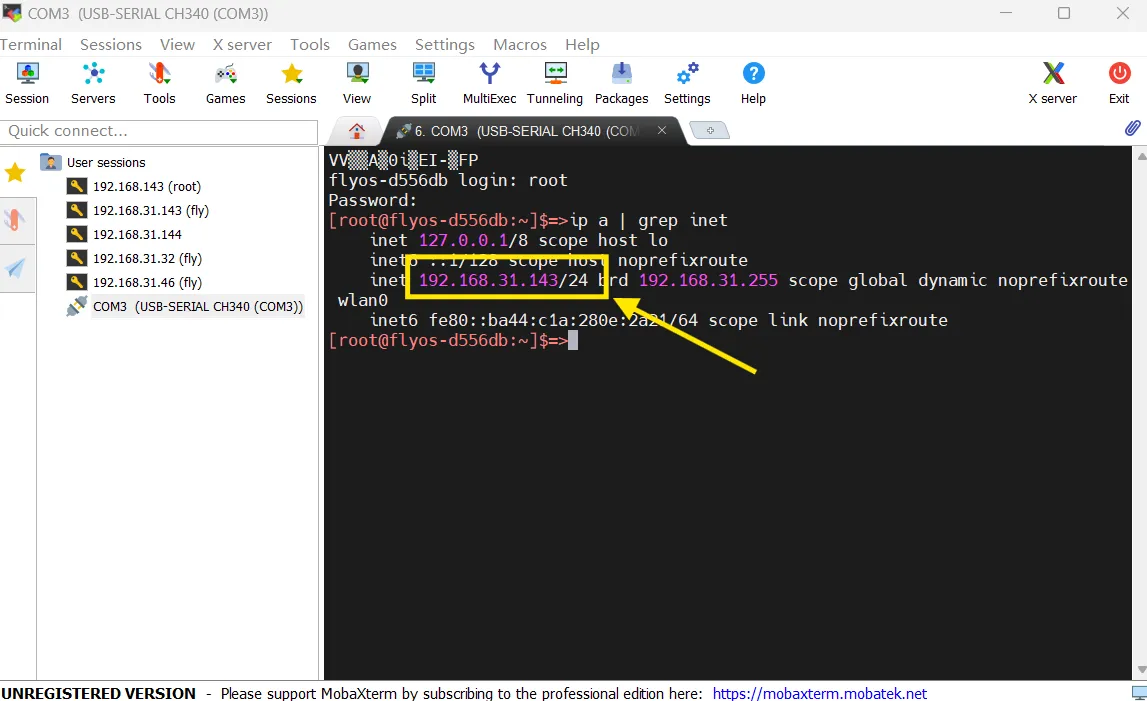

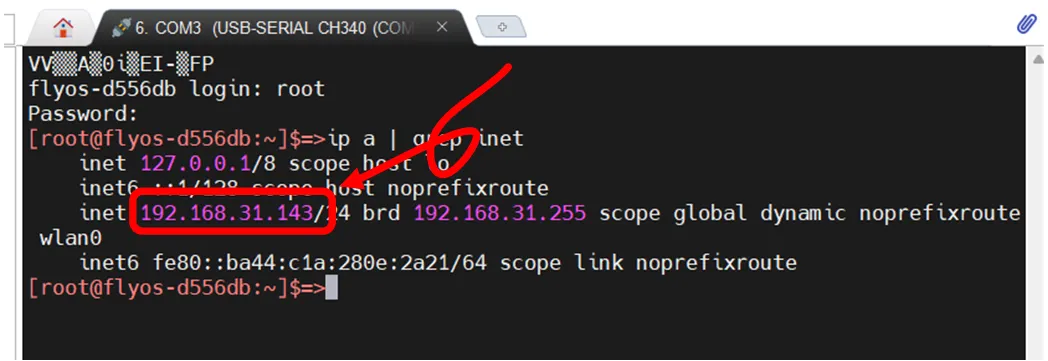

If you need to view the device IP, ensure the device is connected to the network via Ethernet or Wi-Fi Connect to Wi-Fi

Please log into the router admin panel to which the host is connected unless you already know the host's IP address
Make sure you know the username and password of the host
FlyOS-FAST default username is root, and the default password is mellow
If the motherboard has already booted and is connected to the network, you can use the following method to connect via SSH

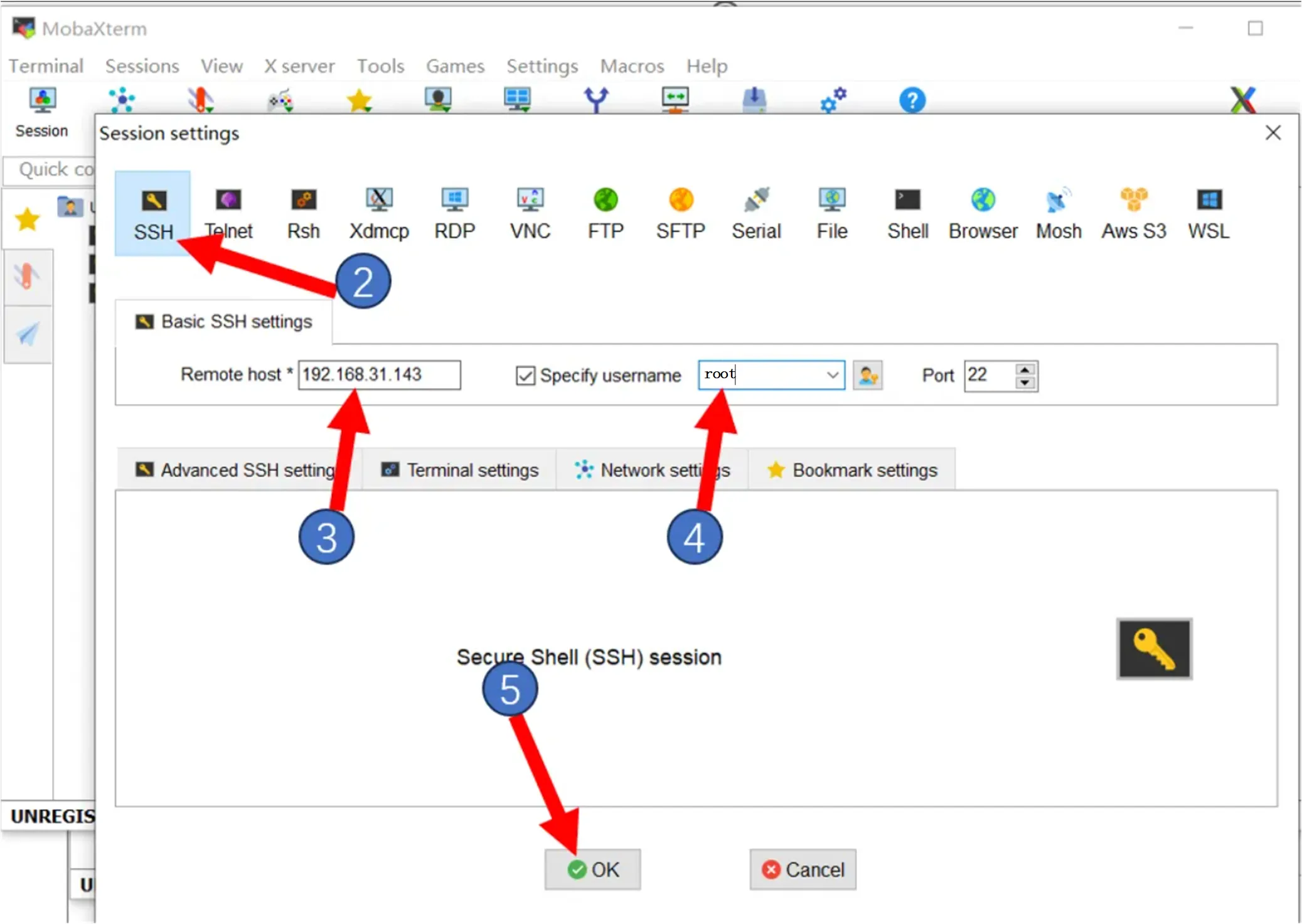

Open MobaXterm and set it up as shown below, entering the IP address you previously checked, which can also be found in the router admin panel

Note: The username entered in step 4 here is the host's username

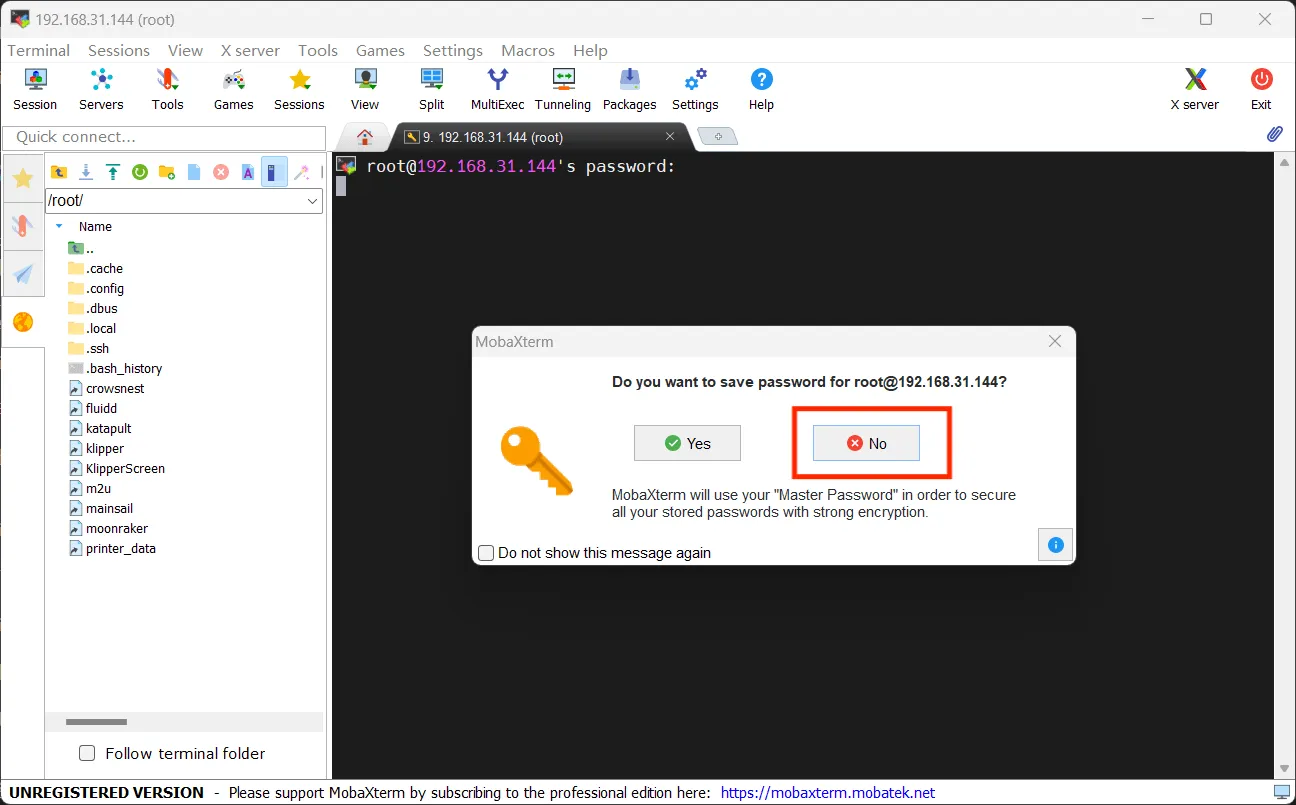

The first time you connect, a window like the one below will pop up, click Accept to proceed

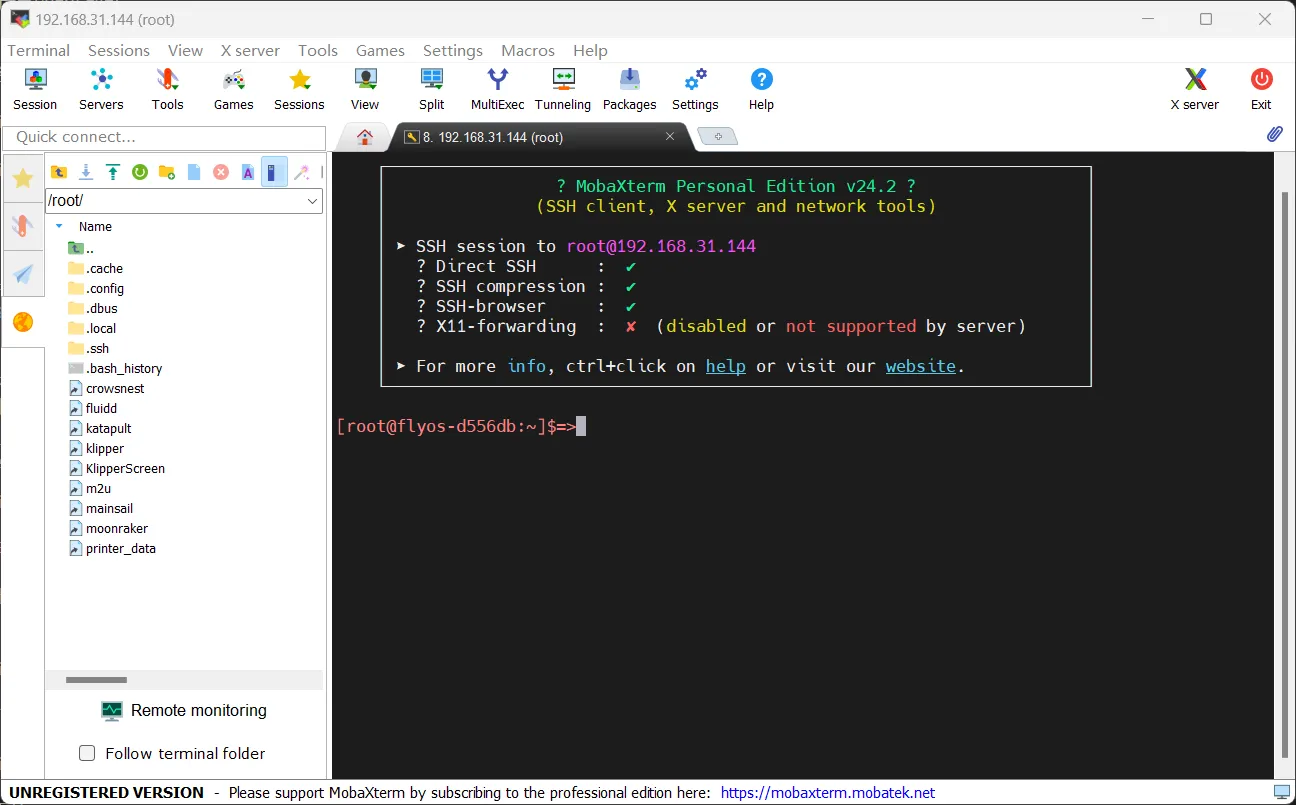

Note: The password entered here will not be visible, just press Enter after typing it
