Other Settings for Host Computer
- FLYOS-FAST System - Other Configurations
- FLYOS-Armbian System - Other Configurations
FLYOS-FAST System - Other Configurations
Important Note
- Some settings in the configuration file will only take effect when the system is first started after burning.
- Therefore, please modify the configuration file
config.txt
in the removable diskFlyOS-Conf
after burning. - Then insert the card into the board to start the system.
Notice
- Try not to use the built-in Notepad of the Windows system to edit the configuration file; you can use VSCode or other professional text editors.
- Avoid inputting Chinese characters or special symbols in the configuration file.
- The configuration file needs to be restarted after modification to take effect.
Warning
- Do not modify the content below
######### PLEASE DO NOT EDIT THE FOLLOWING #########
in the configuration file.
How to Modify the Configuration File
Modify Configuration File After Burning
- The configuration items that only take effect on the first startup must be modified by using a professional text editor to open the configuration file
config.txt
in the removable diskFlyOS-Conf
after burning.
Online Configuration Modification While the System is Running
-
If it is a regular configuration item, modifications made through the system web configuration page will take effect after restarting the system.
- Open the device IP address in the browser, for example:
http://192.168.1.2/
- In fluidd, uncheck as shown in the left diagram ->
Filter and hide files and folders
. - In mainsail, check as shown in the right diagram ->
Show hidden files
.
- At this point, the
.flyos-config
folder can be seen. Enter this folder to find thesys-config.conf
file. - The
sys-config.conf
file is a soft link to the configuration fileconfig.txt
in the removable diskFlyOS-Conf
.
- Open the
sys-config.conf
file, make the necessary changes, save and close it.
- Note: The format of the configuration items in the
sys-config.conf
file iskey=value
; do not change it tokey: value
. - After saving the modifications, restart the system for them to take effect.
- Open the device IP address in the browser, for example:
Configuration Items
Wireless Network Configuration
- The following configuration items will take effect every time the system starts.
Configuration Item | Default Value | Usable Values | Description |
---|---|---|---|
WIFI_SSID | Empty | Any WIFI name | WIFI name; if filled in, the system will automatically prioritize connecting to this WIFI on startup |
WIFI_PASS | Empty | Leave blank if no password | WIFI password; if filled in, the system will connect to WIFI using the password |
Printer Default Configuration
tip
- The following configuration items will only take effect on the first startup.
Configuration Item | Default Value | Usable Values | Description |
---|---|---|---|
language | zh-CN | Click to expand detailszh-CN , zh-HK , en , de , cz , es , hu , ja , nl , pt , se , uk , da , fr , it , ko , pl , ru , tr | Set the default language for fluidd and mainsail during the first startup |
printer_name | Empty | Any string | Set the default printer name for fluidd and mainsail during the first startup |
System Configuration
- The following configuration items will take effect every time the system starts.
Configuration Item | Default Value | Usable Values | Description |
---|---|---|---|
console | serial | serial , both | This configuration item should not be modified; only serial is valid |
board | H5: fly-pi-v2 H3: fly-lite2.1 | Click to expand H5 seriesfly-pi , fly-pi-v2 , fly-gemini-v1 , fly-gemini-v2 , fly-gemini-v3 , fly-c8 Click to expand H3 seriesfly-lite2 , fly-lite2.1 , fly-minipad | Mainboard model, mainly used for automatic firmware burning, etc. |
shutdown_pin_state | 1 | 0 , 1 | Set the voltage level state of the shutdown button 1: Triggered by low level 0: Triggered by high level |
shutdown_pin | none | PA21 , PA4 ... | Set the trigger pin of the shutdown button, default none to disable |
spidev | spidev0.0 spidev1.0 | spidev0.0 , spidev0.1 , spidev1.0 , spidev1.1 | Set the SPI port to enable Use spaces to separate multiple ports |
localtime | Asia/Shanghai | World Time Zone Table | Set the default timezone of the system, the system will automatically adjust time after connecting to the network |
canbus_bitrate | 1000000 | 1000000 , 500000 , 250000 | Set the default rate of all CAN devices in the system, default is 1M |
Printer Type Configuration
- The following configuration items will take effect every time the system starts.
Configuration Item | Default Value | Usable Values | Description |
---|---|---|---|
printer | klipper | klipper , rrf | Configure which service to start the systemklipper : klipper, moonraker servicesrrf : RRF DSF, DWC services |
Display Configuration
- The following configuration items will take effect every time the system starts.
Configuration Item | Default Value | Usable Values | Description |
---|---|---|---|
screen | hdmi | Click to expand H5 seriesnone , hdmi , fly-tft-v1 , fly-tft-v2-r , fly-tft-v2-c Click to expand H3 seriesnone , hdmi , fly-tft-v1 , fly-minipad-r , fly-minipad-c , fly-tft-v2-r , fly-tft-v2-c | Set the screen, none to turn off all displays |
rotate | 90 | 0 , 90 , 180 , 270 | Set the rotation angle of FLY-TFT, invalid for HDMI |
Klipper Related Configuration
- The following configuration items will take effect every time the system starts.
Configuration Item | Default Value | Usable Values | Description |
---|---|---|---|
klipper_screen | 0 | 0 , 1 | Set whether to enable KlipperScreen 1: Enable 0: Disable Valid when printer=klipper |
moon2uart | 0 | 0 , 1 | Set whether to enable moon2uart 1: Enable 0: Disable Valid when printer=klipper |
m2u_port | /dev/ttyS1 | Valid serial ports | Serial port for moon2uart, valid when moon2uart=1 |
m2u_baud | 115200 | Valid baud rates | Baud rate for moon2uart, valid when moon2uart=1 |
klipper_webui | fluidd | fluidd , mainsail | Set the default front-end UI for Klipper Does not affect the one-click switching function online Valid when printer=klipper |
RRF Related Configuration
- The following configuration items will take effect every time the system starts.
Configuration Item | Default Value | Usable Values | Description |
---|---|---|---|
rrf2uart | 0 | 0 , 1 | Temporarily invalid, to be updated in future versions |
Other Settings
- The following configuration items will take effect every time the system starts.
Configuration Item | Default Value | Usable Values | Description |
---|---|---|---|
crowsnest | 0 | 0 , 1 | Set whether to enable Crowsnest 1: Enable 0: Disable Valid for both Klipper and RRF modes |
tip
- The following configuration items will only take effect on the first startup.
Configuration Item | Default Value | Usable Values | Description |
---|---|---|---|
firmware | Empty | Valid firmware file path | Set the firmware to be automatically burned at startup, currently only C8 and Gemini-V3 are valid |
dangerous
- Do not modify the content below
######### PLEASE DO NOT EDIT THE FOLLOWING #########
in the configuration file.
FLYOS-Armbian System - Other Configurations

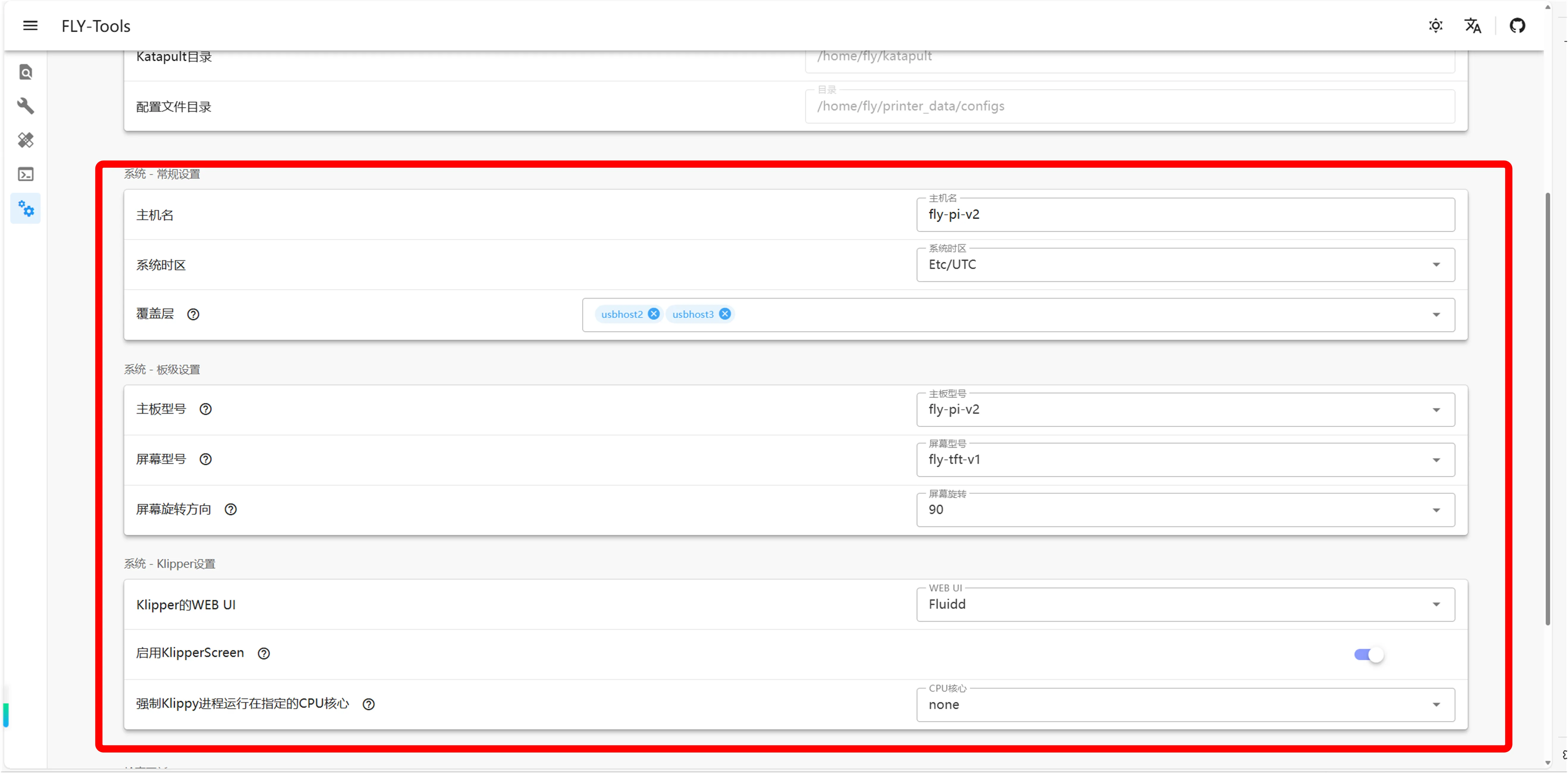

- The other configuration options are shown in the following image. Please enable or disable them according to the actual situation.
- Click the
?
after the corresponding configuration option to display the introduction of the meaning of the configuration option. - After modifying the configuration, please click the
pink button
in the lower right corner to save the modification. - After saving the modification, restart the host computer for the changes to take effect.
