Screen Wiring and Configuration

Screen Wiring

TFT Screen Wiring

TFT Screen Wiring

tip

• The TFT screen package comes with two FPC cables: one is 14P (narrow) and the other is 16P (wide)
• For lite2.1, please use the 16P (wide) cable!!!

1. FLY-lite TFT screen wiring

HDMI Wiring

HDMI Wiring

1. FLY-HDMI screen wiring

---

Screen Configuration

FLYOS-FAST System - Screen Configuration

FLYOS-FAST System - Screen Configuration

1. Open the device IP address in the browser, for example: http://192.168.6.110/

   fluidd: As shown in the image below: Uncheck -> Filter hidden files and folders.

   mainsail: As shown in the image below: Check -> Show hidden files.

2. You can now see the .flyos-config folder. Enter this folder to find the sys-config.conf file.

3. Open the sys-config.conf file, modify the required configuration items, then Save -> Close.

warning

• For HDMI screen, configure as: hdmi. Please note that there must be no space after the =.
• For resistive screen, configure as: fly-tft-v2-r. Please note that there must be no space after the =, and ensure the switch on the back of the screen is set to Resi.
• For capacitive screen, configure as: fly-tft-v2-c. Please note that there must be no space after the =, and ensure the switch on the back of the screen is set to cap.
• For klipper_screen, configure as: 1. Please note that there must be no space after the =.
• Note: The configuration format in the sys-config.conf file is key=value. Do not change the format!!! Otherwise, the configuration will not take effect!!!

4. After saving the changes, restart the system to apply them.

FLYOS-Armbian System - Screen Configuration

FLYOS-Armbian System - Screen Configuration

info

• After connecting the host computer to the WiFi and obtaining its IP address, enter IP+:9999 in the browser to access FLY TOOLS for screen configuration.
• For example, if the host computer's IP address is 192.168.6.110, you should enter 192.168.6.110:9999 in the browser.

1. For lite2.1, connect to the host via SSH and execute the command below!

sudo sed -i 's/^board=.*$/board=fly-lite2.1/' /boot/FlyOS-Env.txt

3. Restart the system
4. Open FLY TOOLS. Follow the steps shown in the image below: Enable Klipper Screen, select the screen model, click the pink button in the bottom-right corner Save Configuration, and restart the host computer to apply the changes!

warning

• For resistive screen, select: fly-tft-v2-r. Please ensure the switch on the back of the screen is set to Resi.
• For capacitive screen, select: fly-tft-v2-c. Please ensure the switch on the back of the screen is set to Cap.

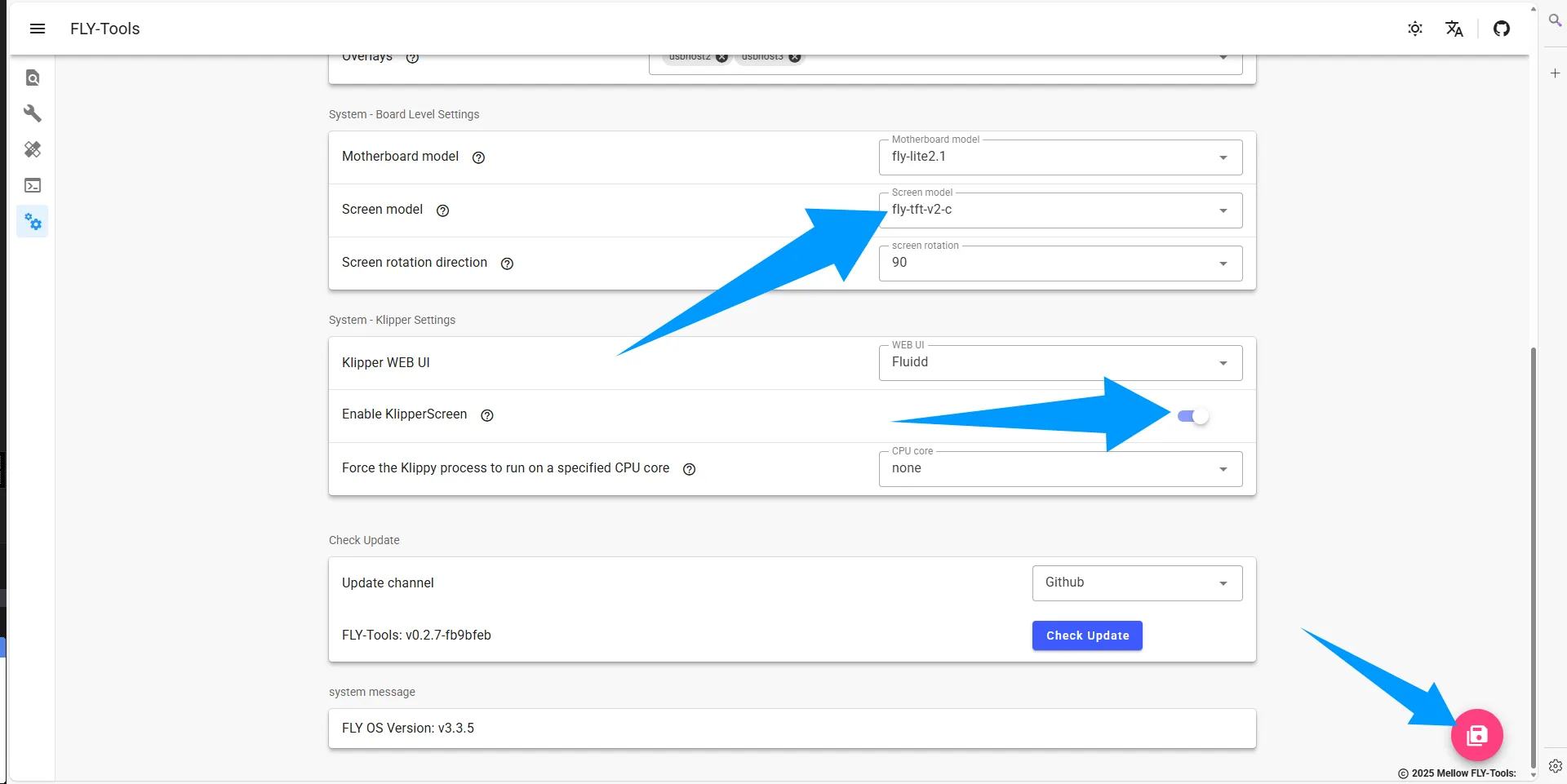

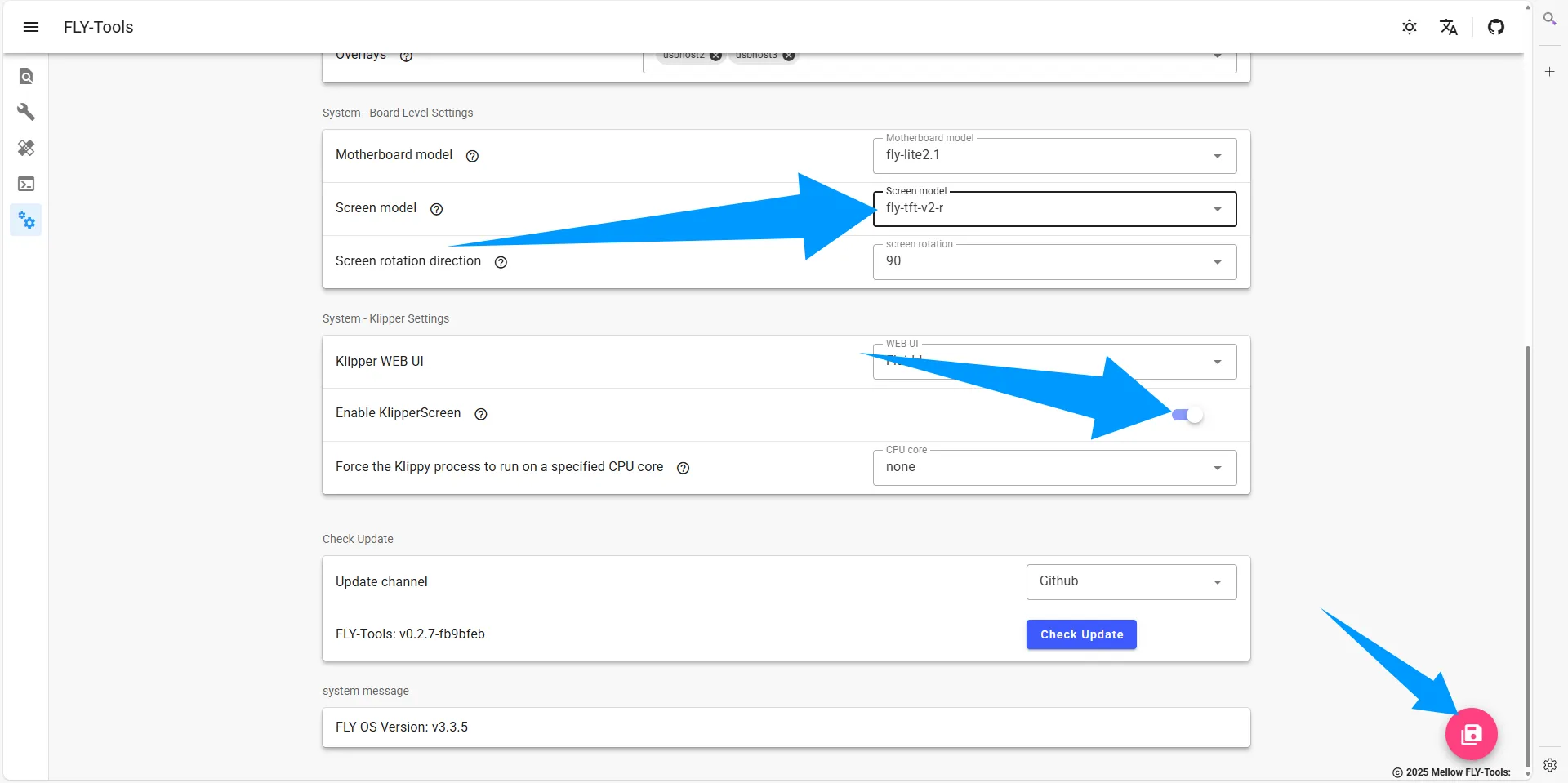

Resistive Screen:	Capacitive Screen:
HDMI Screen:

2. After saving the configuration, restart the host computer to apply the changes!

---
