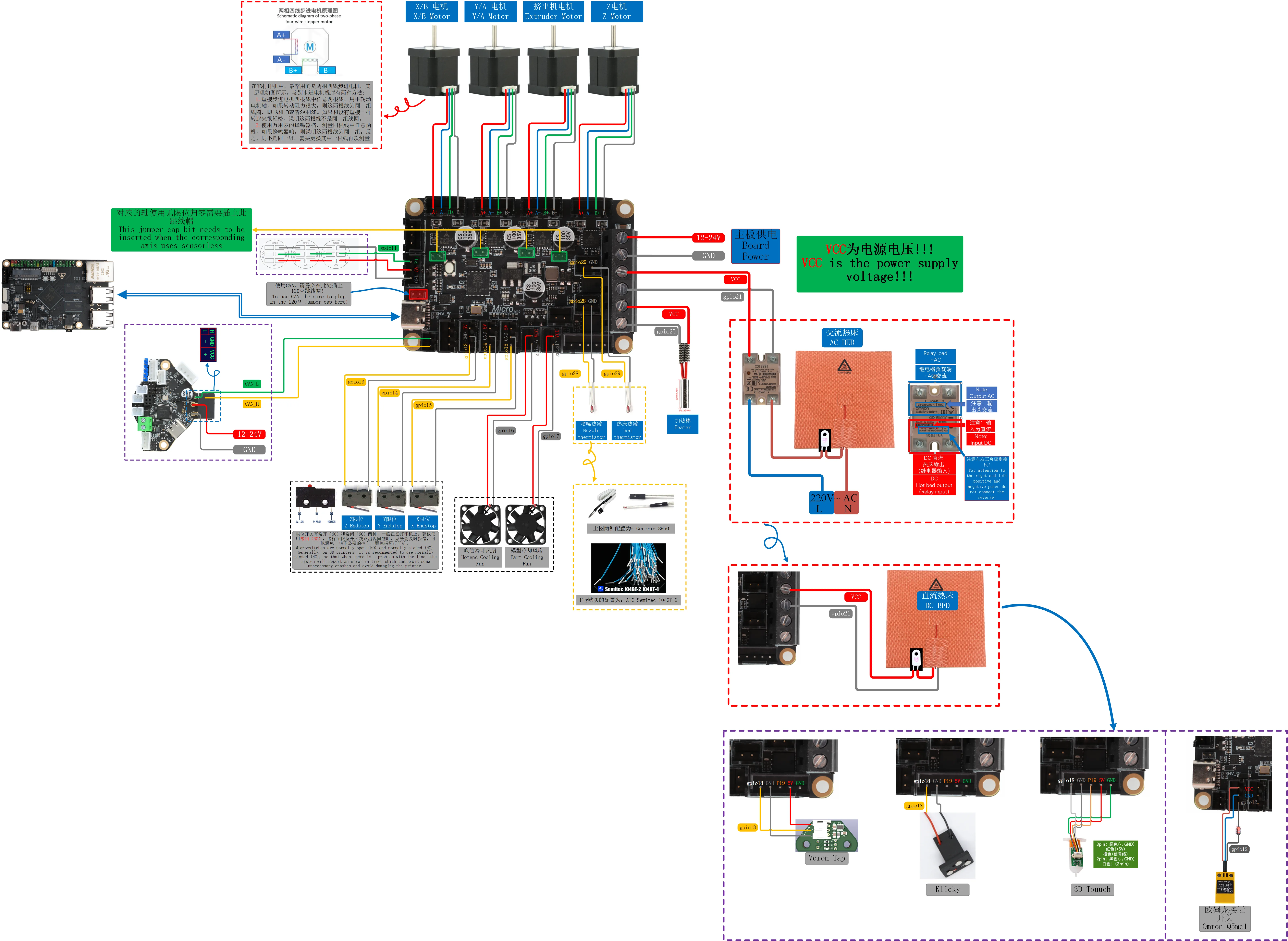

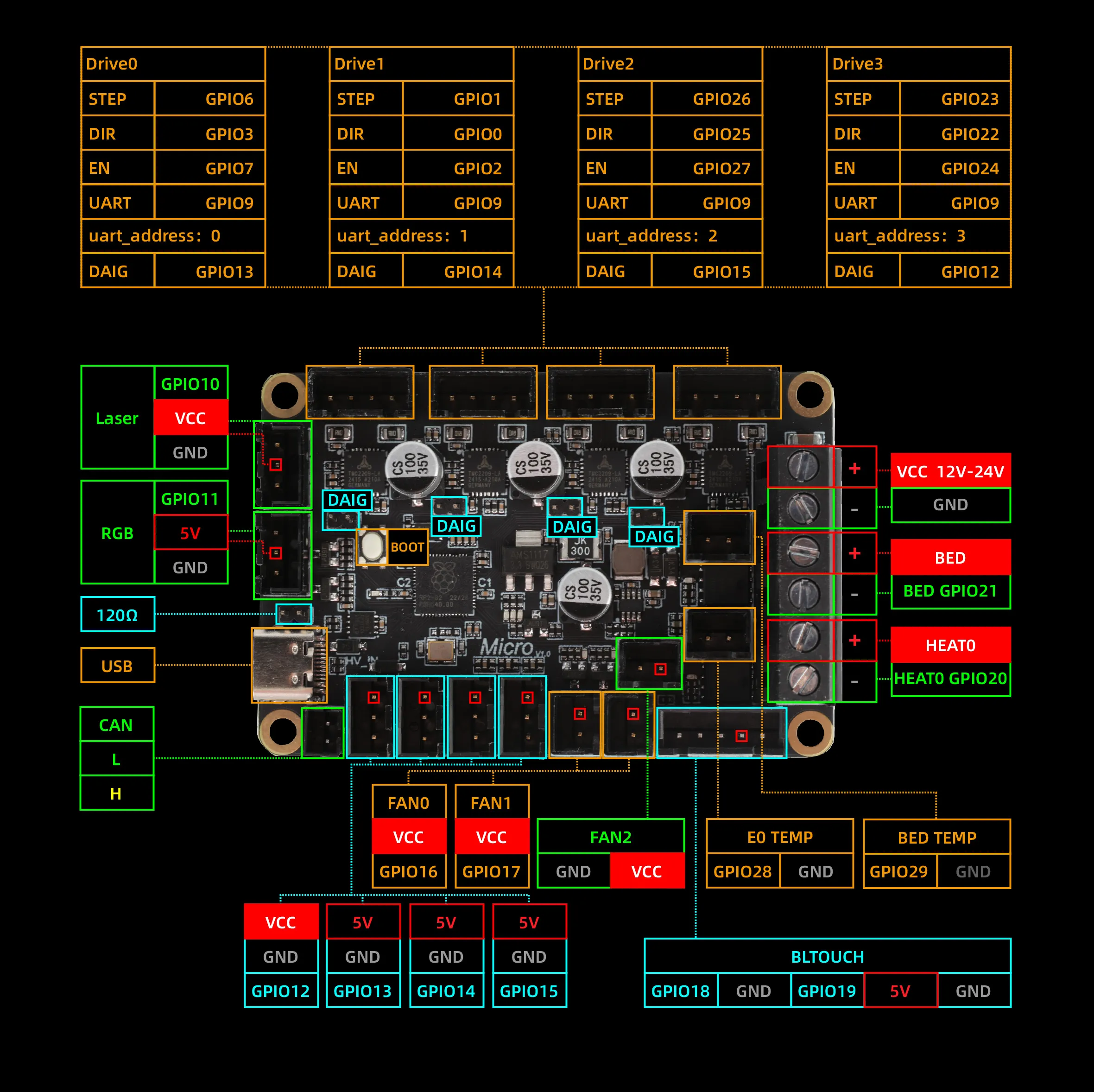

Motherboard Reference Wiring

Note

Since the image resolution is too high, it's hard to view clearly on the web. Please place your mouse cursor over the wiring diagram, right-click, and select "Save Image As" to save the image to your desktop for better viewing!

Tip
  • Due to the high resolution of the wiring diagram, users with slower internet connections might experience delays in loading. Please be patient~~~ (≧∀≦)ゞ
  • It is recommended to place your mouse cursor over the wiring diagram, right-click -> Save Image As, and view it on your desktop for better convenience~~~ σ(´∀`*)
Loading...
