Screen Wiring and Configuration

Screen Wiring​

Important Safety Notes

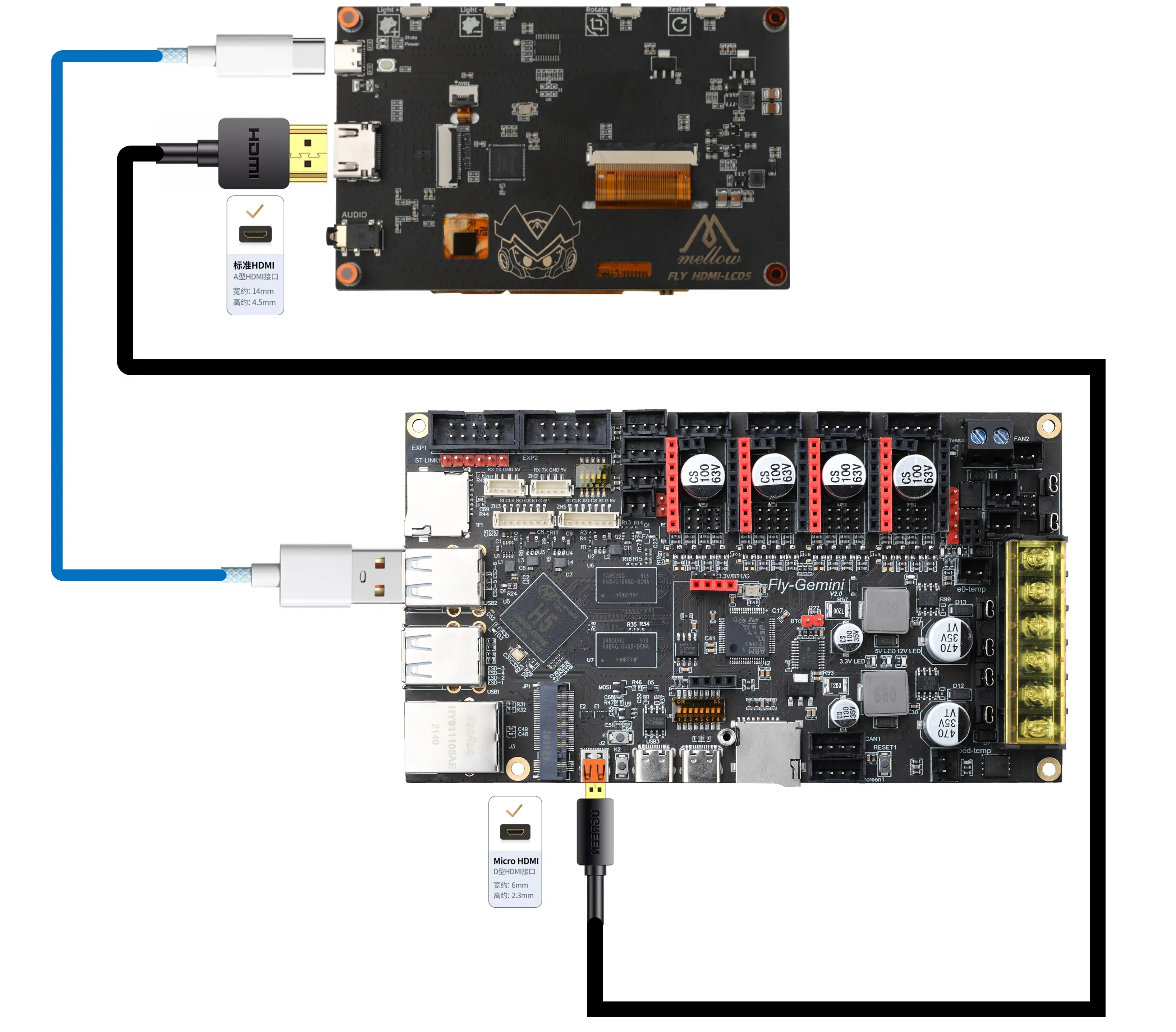

  • When connecting an HDMI screen with an FPC cable, always operate with the device in the Completely powered off state to prevent screen damage.
  • TFT screens use wiring harnesses; connect the wires according to the diagram while the device is powered off, and confirm the connector orientation to avoid incorrect connections that could cause equipment failure.

TFT Resistive Screen Cable Wiring​

Tip
  • Pay attention to the cable connection order to ensure correct alignment.

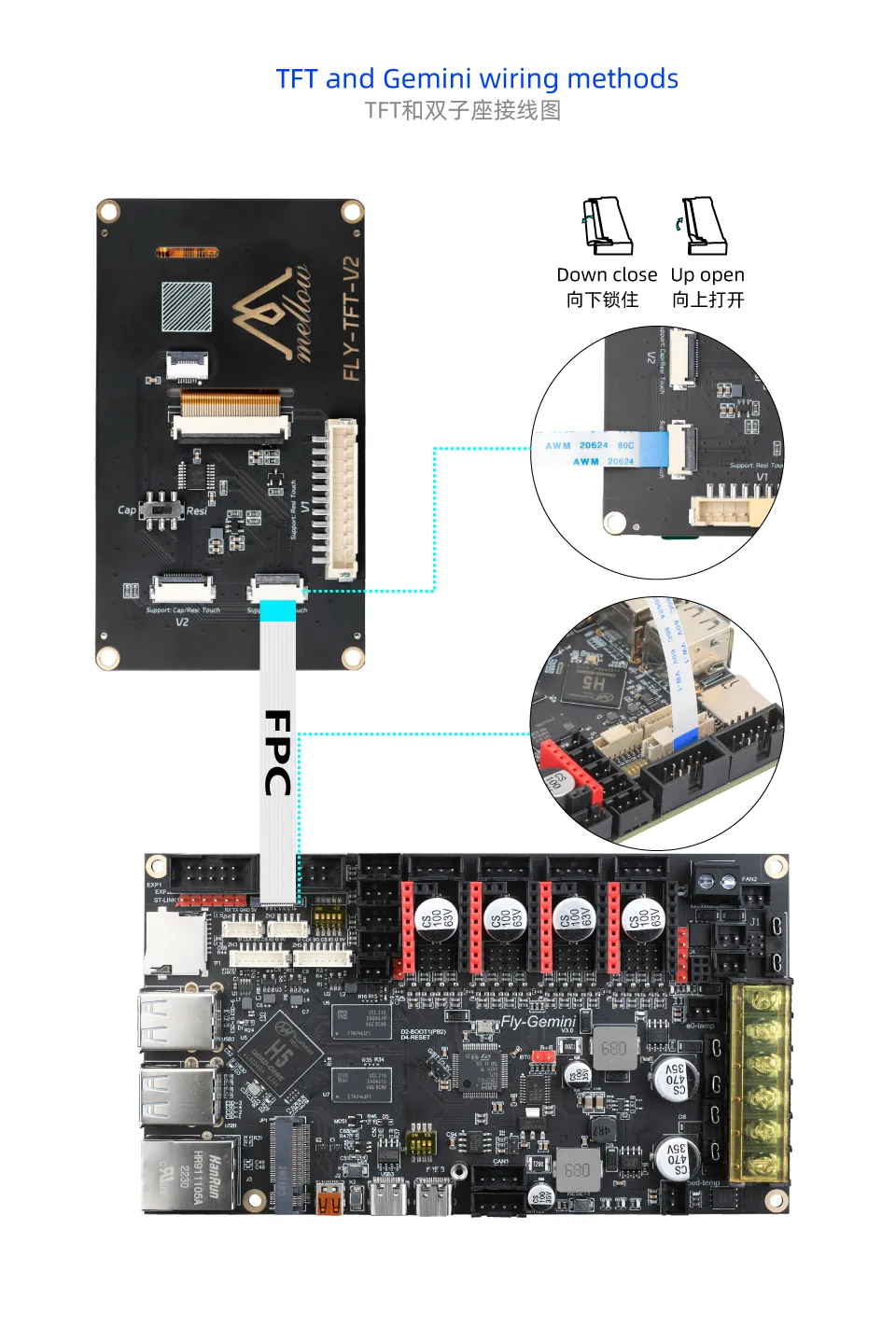

  1. TFT screen installation diagram

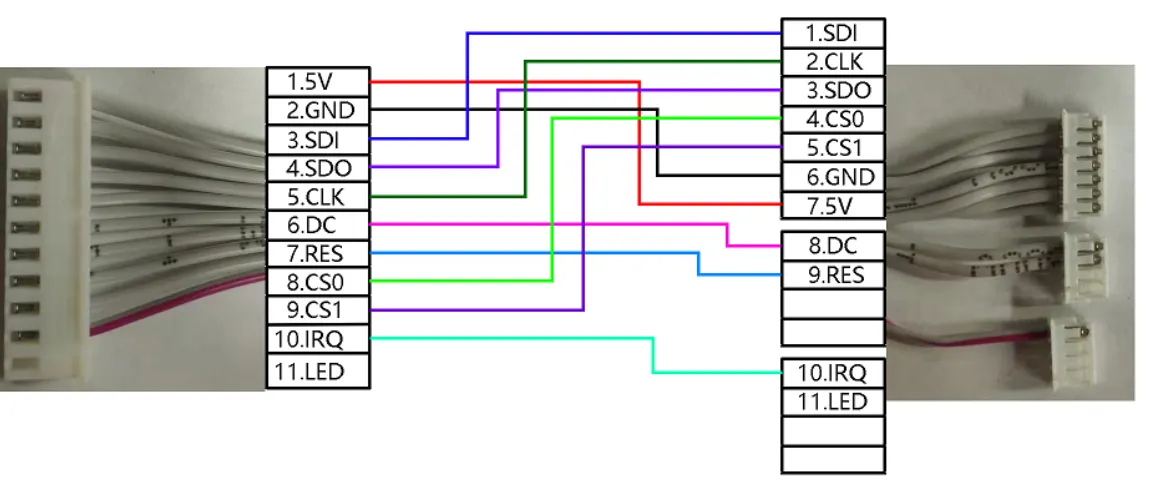

  • Wiring reference
Loading...

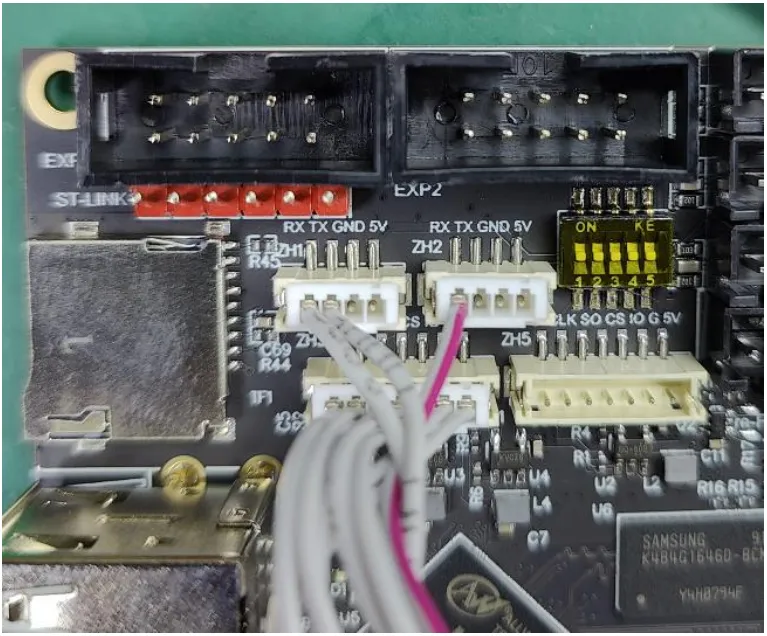

  • Connection method
Loading...

Screen Configuration​

FLYOS-FAST System Screen Configuration​

  1. Access the device IP address via a browser, for example: http://192.168.6.110/

fluidd Interface Operation: Uncheck "Filter hidden files and folders"

Loading...

mainsail Interface Operation: Check "Show hidden files"

Loading...
  1. Enter the displayed .flyos-config folder and find the sys-config.conf configuration file.
Loading...
  1. Edit the sys-config.conf file and modify the corresponding configuration items according to the screen type.
  • Change the value after screen= to fly-tft-v1
  • To use FLY Screen, set klipper_screen=0；if both klipper_screen=1 and fly_screen=1 are enabled, KlipperScreen is enabled by default
  • Change fly_screen=0 to fly_screen=1
  • Below is a reference after modification
screen=fly-tft-v1
  • Additionally, modify
klipper_screen=0
fly_screen=1
Loading...
Configuration Notes
  • Confirm the DIP switch settings on the back of the screen are correct: set the resistive screen to Resi
  • The configuration file format must be key=value, with no spaces after the equals sign
  • Do not modify the configuration file format arbitrarily, otherwise the configuration will not take effect
  1. After saving the configuration
Important Note

After modifying the configuration, please restart the system for the changes to take effect

Loading...
