Marlin Firmware Download

Notes

Please do not place under Chinese paths

Fly_D8-Pro-Marlin

• Click the download link below
• Loading...

Marlin Firmware Compilation

Note

• This tutorial is based on the Windows operating system
• This tutorial uses vscode, please install it in advance

Install Python Environment

• Download Python environment
• Click the download link below
• Loading...

• Installation completed


Install vscode Extensions (Plugins)

1. Open vscode, open the Extensions Marketplace (the button with four squares on the left side of the interface)
2. Enter the following in the search box

platformIO

3. Find the plugin and install it
4. Restart vscode


Firmware Location

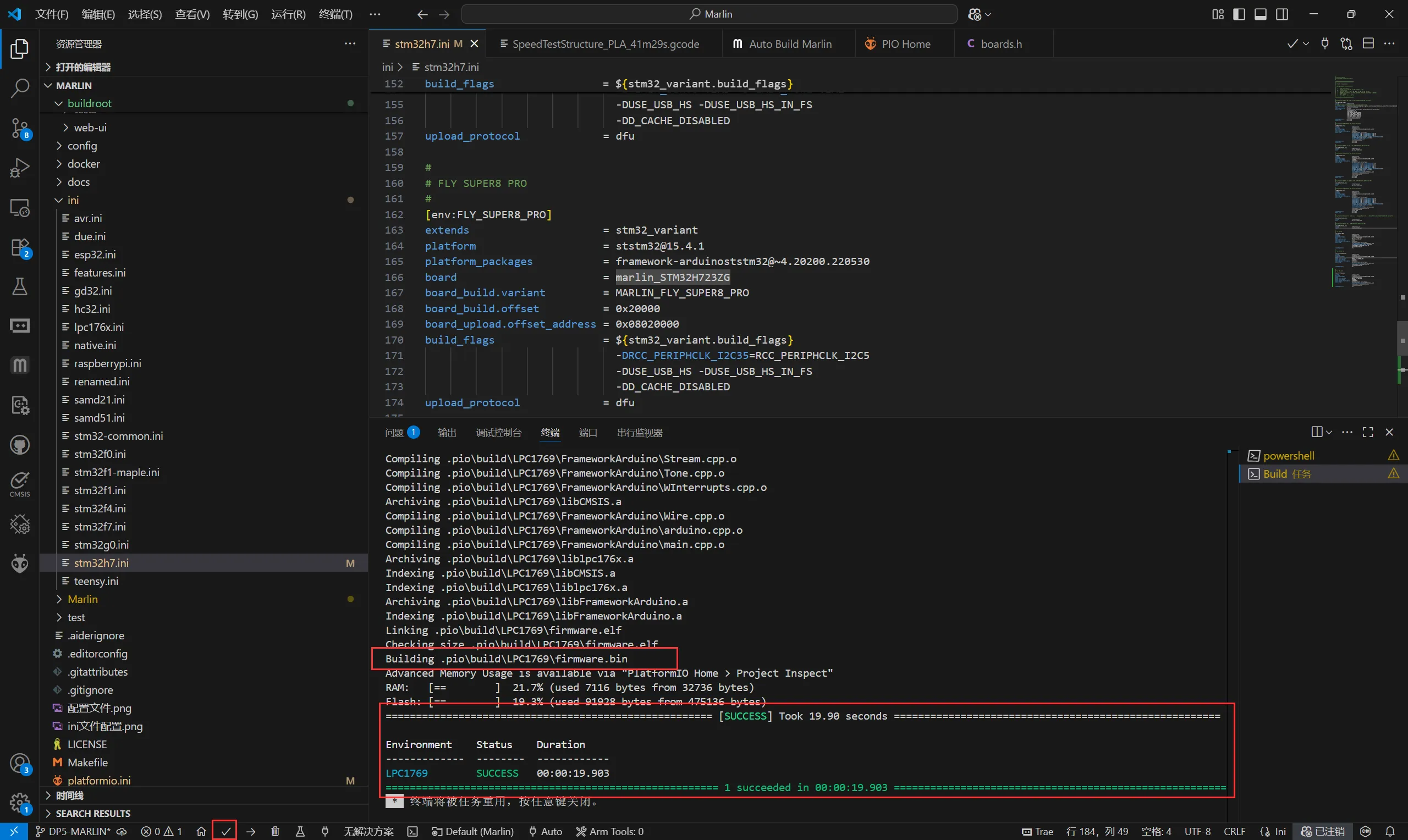

• After a successful compilation, the firmware file you need is firmware.bin.
• It is located in the .pio\build\<your_board_model>\ folder within the project directory.
• Path Description: <your_board_model> needs to be replaced with the specific board model you selected during compilation, such as D8 or super8; this directory name matches your compilation environment.


Flashing the Firmware

Notice

To ensure successful STM32 firmware flashing, please pay attention to the following:

• Some computers' USB ports may cause unstable flashing due to driver or signal compatibility issues. We recommend that you try connecting using a different USB port.
• If changing ports doesn't help, an effective solution is to connect via an external USB hub, which often improves compatibility.
• When the flashing software displays the error message below, try using a hub first. If the problem persists, please check or use the host computer to flash


1. Flashing tool Download link
2. Download SetupSTM32CubeProgrammer and STM32 DFU driver
3. Download the firmware to any directory on your computer
4. Connect the motherboard to the computer using a Type-C cable, ensuring it has entered dfu flashing mode
5. In STM32CubeProgrammer, select USB mode, then refresh and connect

6. If no error pop-up appears, the connection is successful.
   Warning

   If the following message appears, it indicates a computer or software issue. Please use the host computer to flash: Host Computer Flashing Guide


7. Click the download icon on the left and select the options below

8. Click Browse at the arrow's location, then select the firmware you need to flash

9. Select Start address and enter 0x08000000
   • Note: If the firmware is in HEX format, skip this step!!

10. Click Start automatic mode below to begin flashing the firmware

11. The appearance of the message below indicates that the firmware has been successfully flashed
