Wiring Reference

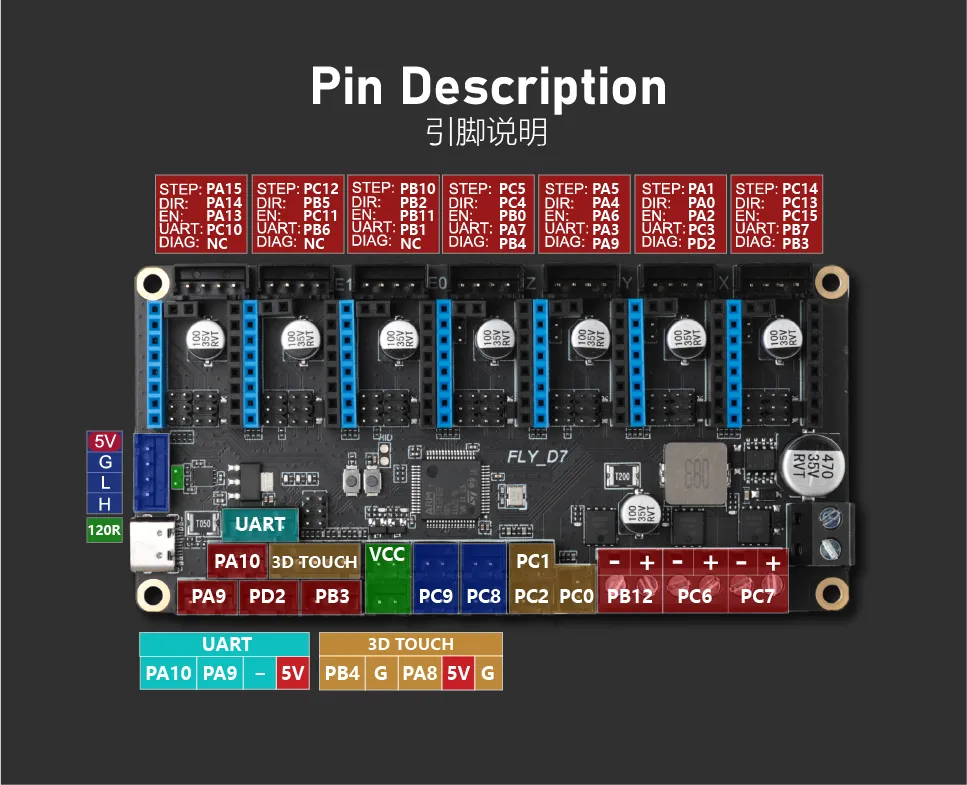

PIN Description

Motherboard Driver Jumper

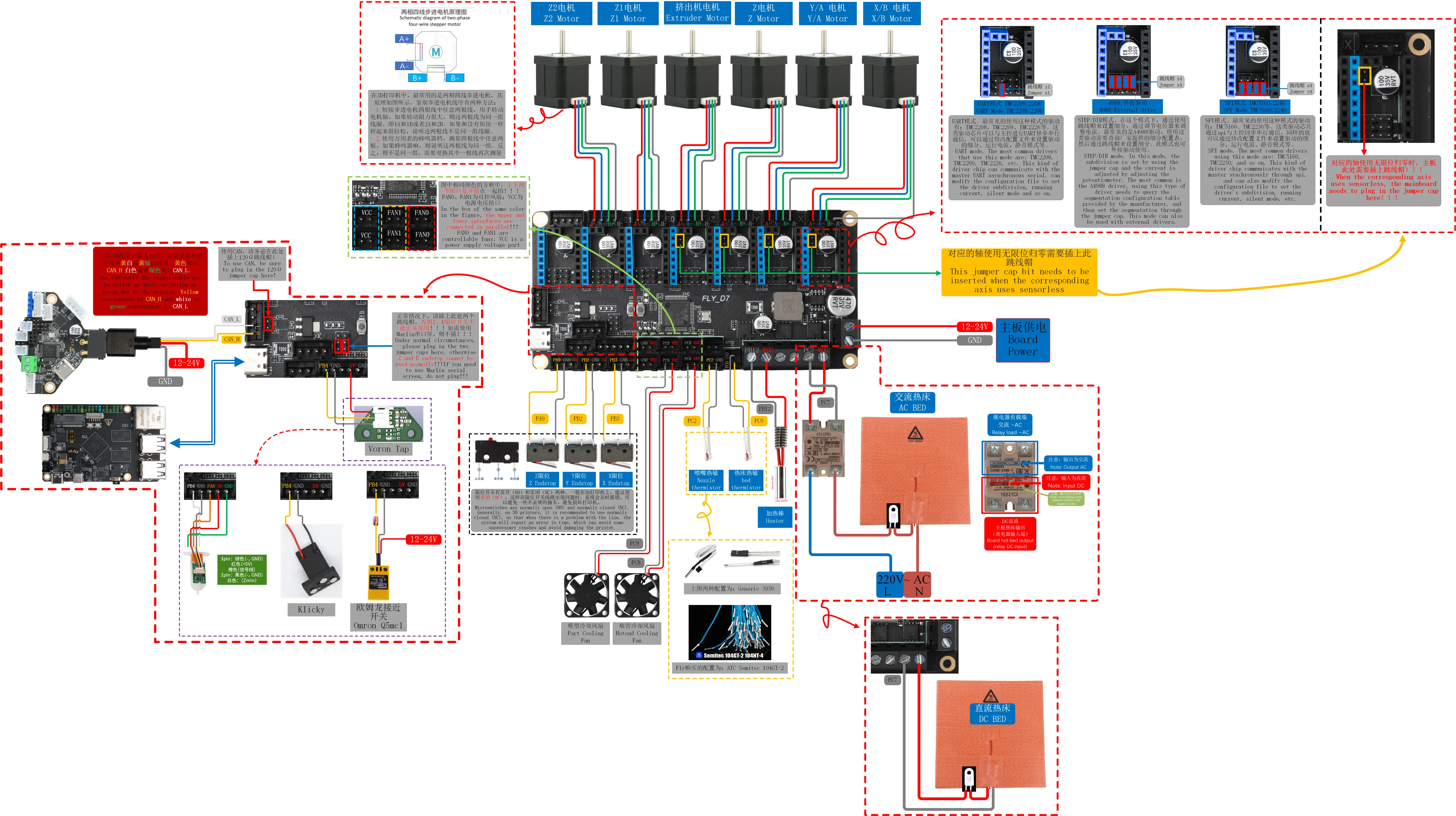

Main Board Wiring

Warning

Do not use purchased off-the-shelf three-wire limit switches, as these types of switches may cause a short circuit on the main board, potentially damaging the motherboard!!! Please strictly follow the wiring method shown in the wiring diagram!!!

Tip
  • Due to the high resolution of the wiring diagram, users with slower internet connections may experience delays in loading. Please wait patiently ~~~ (≧∀≦)ゞ
  • It is recommended to place the mouse cursor over the wiring diagram and right-click -> save image as to save it to your desktop for easier viewing later ~~~ σ(´∀`*)
