External Drive Usage Tutorial

External Driver Usage Tutorial

Precautions

Note
  • This tutorial is based on Klipper control
  • The module uses common-anode wiring

Driver Wiring

info
  • Either of the following two methods is sufficient

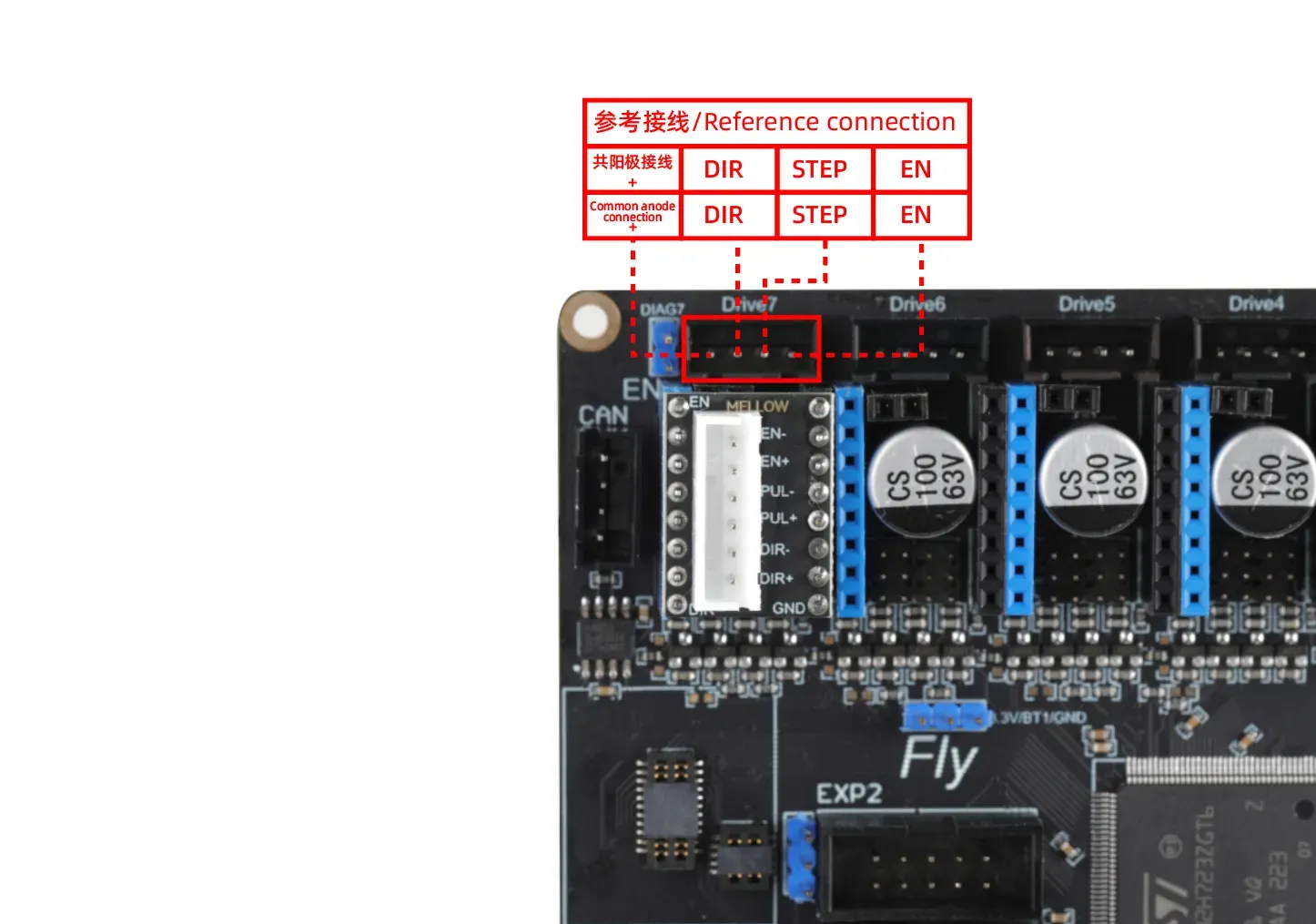

  • First wiring method
  • Second wiring method

Driver Microstep Jumper

  • No driver jumper is required!!!

Built-in DIP Switch of Driver

  • It is recommended to set the built-in DIP switch of the driver to 3200

Klipper Reference Configuration

Configuration ItemOperation InstructionRelated Configuration
Driver TypeNo configuration required (the external driver is set by its own DIP switch)
Microsteps (microsteps:)Set to 16
Loading...
Step Pulse Duration (step_pulse_duration:)Add and set to 0.000004
Loading...
Enable Pin (enable_pin:)Remove the ! symbol before the pin definition

Driver Pulse Instructions

info
  • Model offset occurs during printing
  • Motor vibration, abnormal noise, various strange issues
  • You can modify step_pulse_duration: 0.000004
  • Increase this value, such as setting it to 0.00001 or 0.00002 from 0.000009
