Wiring Reference

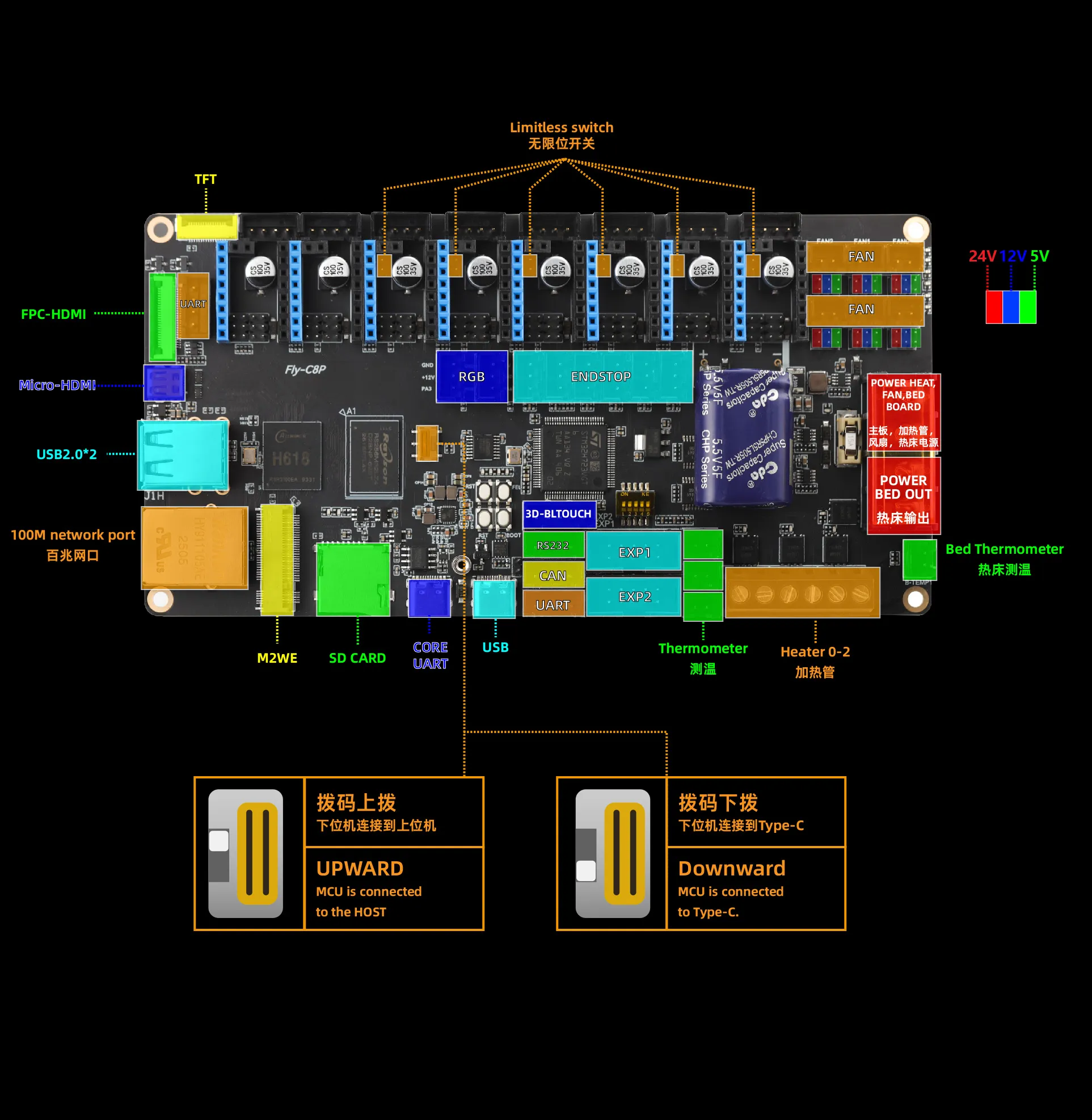

Interface Description

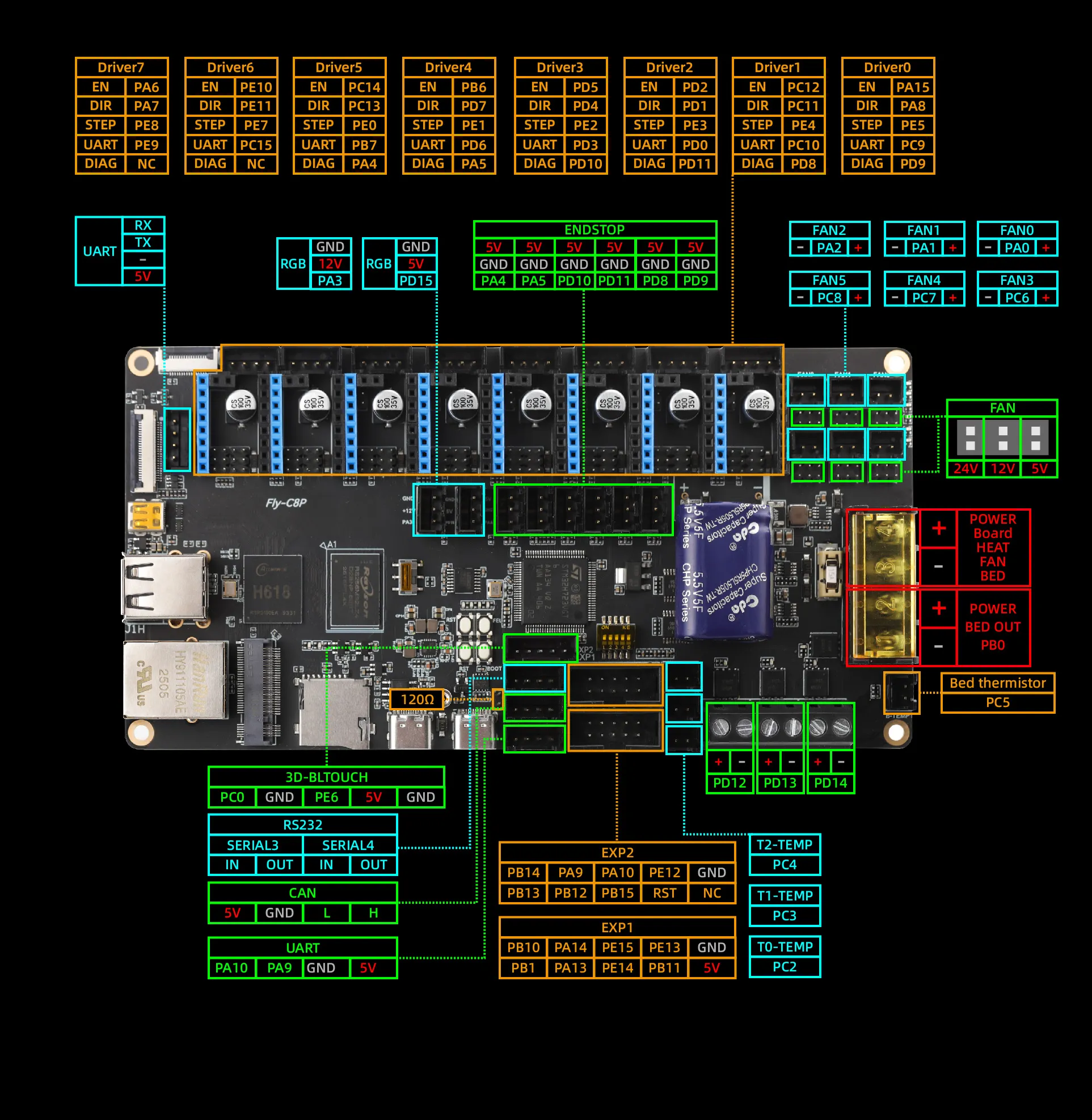

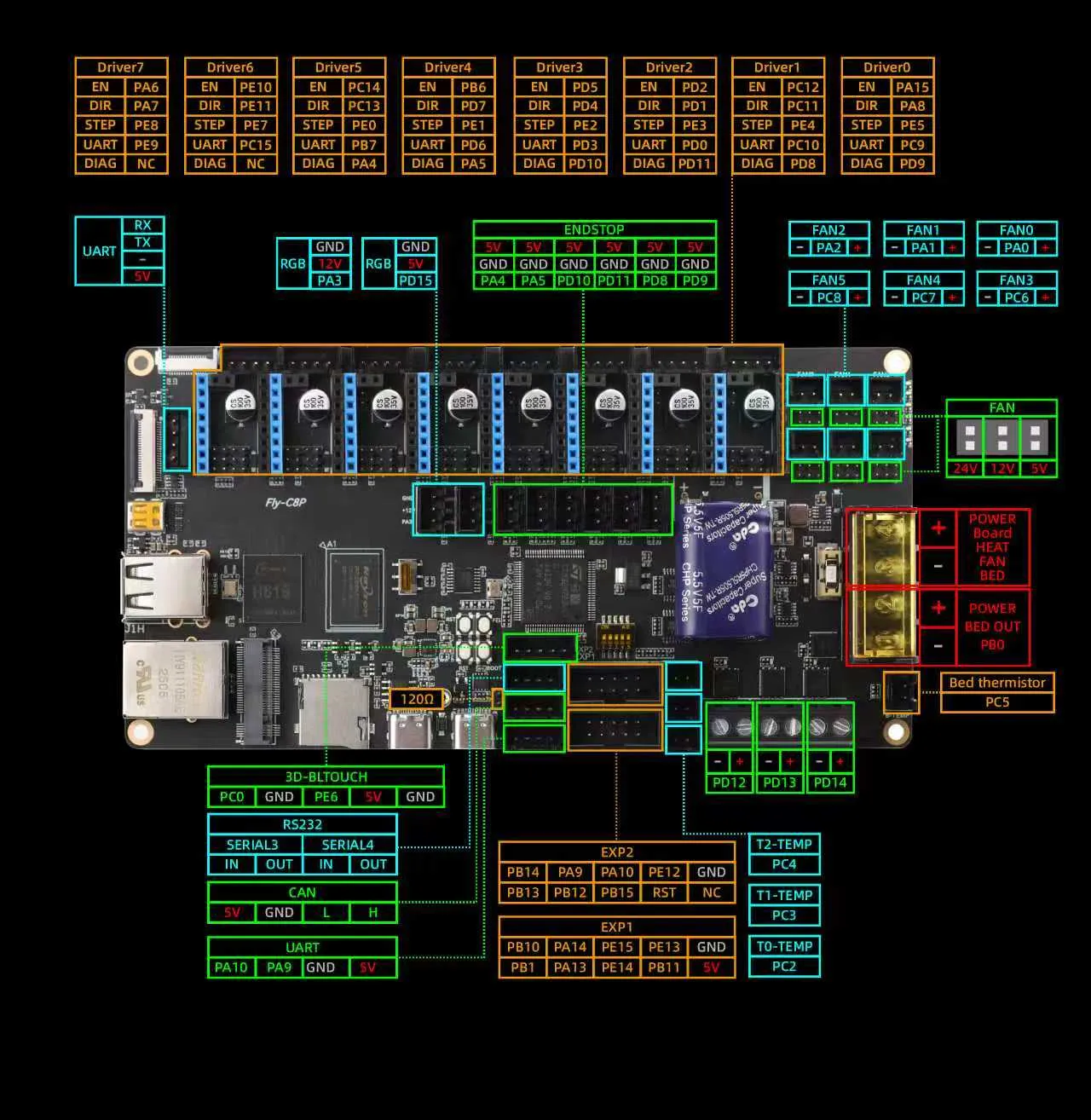

PIN Pin Description

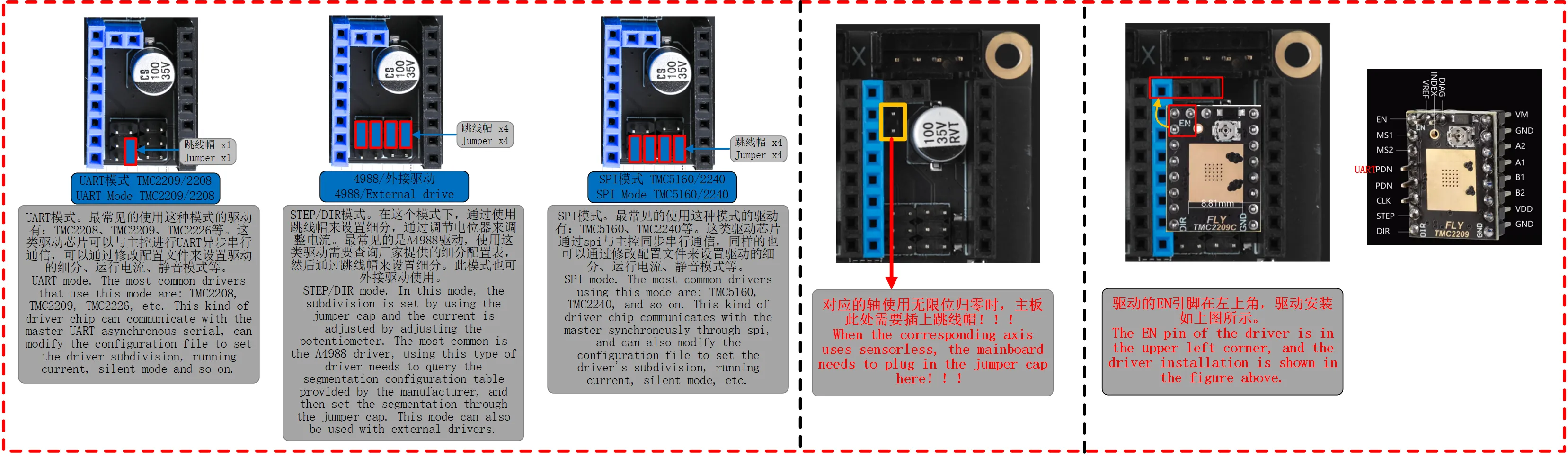

Motherboard Driver Jumper


Main Board Wiring

Warning

Do not use purchased three-wire limit switches, as these types of limit switches may cause a short circuit on the main board, possibly damaging the board!!! Please follow the wiring method shown in the wiring diagram strictly!!!

Tip
  • Since the wiring diagram has a high resolution, users with slow internet connections may experience delays in loading. Please wait patiently~~~ (≧∀≦)ゞ
  • It is recommended to place the mouse cursor over the wiring diagram, then right-click -> Save image as, and save the wiring diagram to your desktop for easier viewing later~~~ σ(´∀`*)
