Introduction

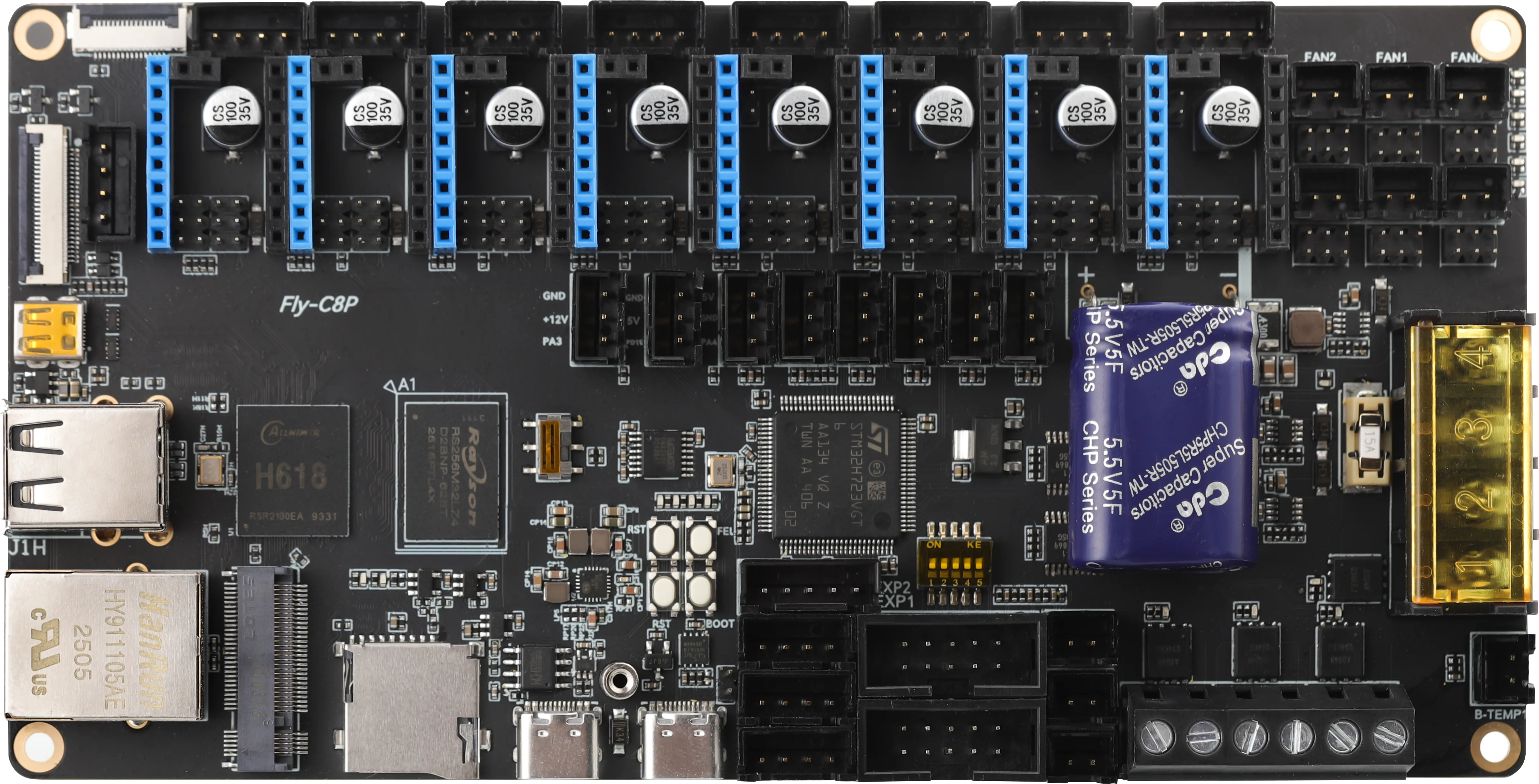

FLY C8P

Product Features

  • Uses the STM32H723VGT6 main control chip from the Arm® Cortex®-M7 series with a 32-bit main frequency of 550MHz
  • Supports SPI and UART operating modes of TMC drivers
  • Onboard DIAG function pin, allows easy use of endless position homing by simply plugging or unplugging a jumper cap
  • CNC fan with selectable 24V, 12V, or 5V voltage options, eliminating the need to purchase a buck module
  • New Flash writing method, firmware can be updated directly via command line
  • Multi-channel power management ensures that short circuits in ports, limit switches, or drivers won't affect the operation of the host computer *预留RGB接口支持(12V,5V)voltage options
  • Supports one-cable connection for TFT and HDMI screens
  • System pre-installed with klipper, moonraker, mainsail, fulidd, klipper-screen, Crowsnest, and resonance compensation plugin numpy, no need to switch sources or perform other complex operations, easier for beginners (requires purchase of TF card or M2WE)

Product Specifications

Host Computer

  • CPU: Allwinner H618, 4-core 64-bit Cortex-A53
  • GPU: Arm Mali-G31
  • RAM: 1GB DDR4
  • ROM: Supports up to 128GB SD card
  • Peripherals:
    • TFT x1
    • USB 2.0 x2
    • Micro HDMI x1
    • Ethernet port (Eth) x1 (100M)
    • FPC-HDMI x1
    • UART x1
    • RS232 x2
  • Interfaces: Onboard M.2 for expansion of WIFI, eMMC, etc. (private protocol, do not connect non-FLY dedicated M.2 devices)
  • Supports: One-cable connection for TFT screen and HDMI screen via FPC
  • Pre-installed system: klipper, moonraker, mainsail, fulidd, klipper-screen, Crowsnest, resonance compensation plugin numpy, no need to switch sources, easy to use (requires purchase of TF card or M2WE)

Microcontroller Unit (MCU)

  • MCU: STM32H723VGT6
  • Firmware: KLIPPER/RRF/Marlin
  • Supports 12-24V DC power supply, providing more stable power and eliminating the need for a buck module
  • Maximum output current for heated bed port: 15A
  • Maximum output current for heater port: 6A
  • Maximum output current for fan port: 1A
  • Driver operation modes supported: SPI, UART, STEP/DIR
  • Supported drivers: Supports external TMC5160Pro, TMC5160, TMC2209, TMC2225, TMC2226, TMC2208, TMC2130, A4988, etc.
  • Expansion interfaces: BLTouch (Servos, Probe), RGB x2, UART x1, 12864 x1, CAN x1
  • Fans: 6 two-wire CNC fans (supporting 24V, 12V, 5V) with selectable options
  • Temperature sensors: 4 channels of NTC 100K
  • Supported machine structures: Cartesian, Delta, Kossel, Ultimaker, CoreXY

Notes

Output PortMaximum Current at 24VMaximum Current at 12V
Heated Bed Port15A7.5A
Heater Port6A3A
Fan Port1A0.5A
