Screen Wiring and Configuration

Screen Wiring

TFT Resistive Screen Wiring

tip
  • The TFT screen package includes two FPC cables: one is 14P (narrow) and the other is 16P (wide)
  • Please use the 14P (narrow) for resistive screens!!!

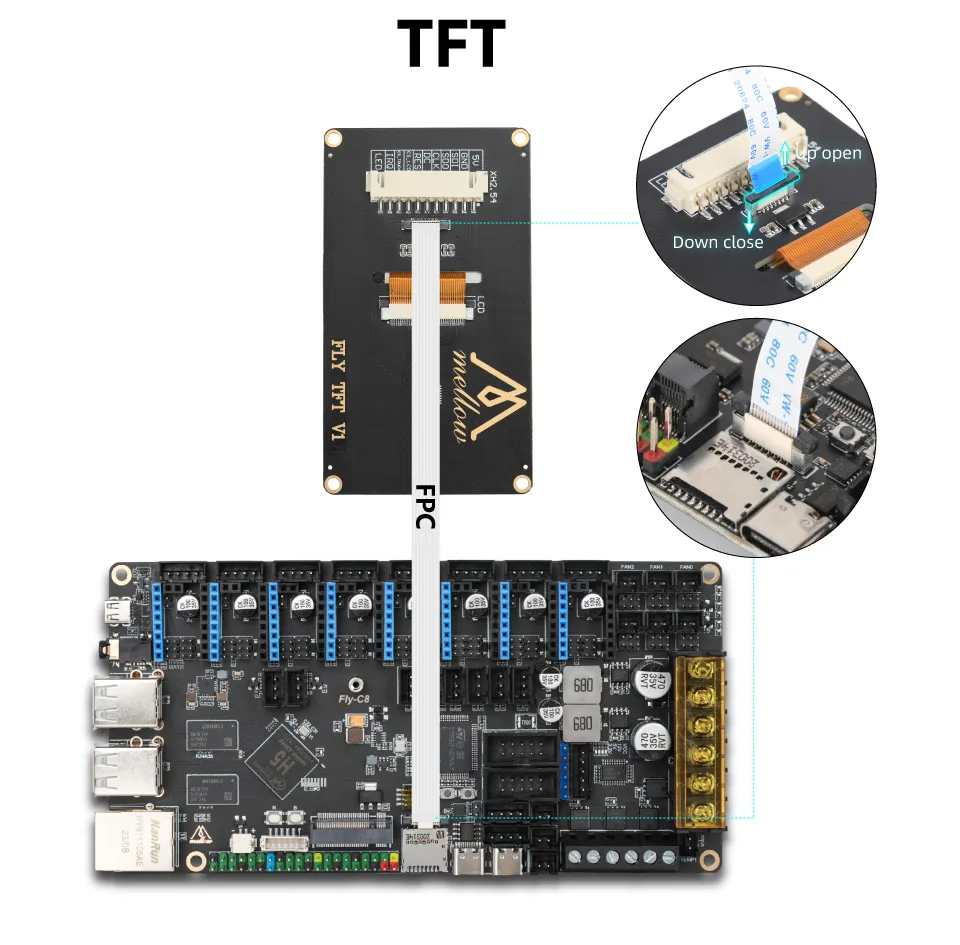

  1. FLY-C8 TFT Resistive Screen Wiring

Screen Configuration

FLYOS-Armbian System - Screen Configuration

info
  • Connect the host computer to WiFi and obtain its IP address. Enter IP+:9999 in the browser to access FLY TOOLS and configure the screen
  • For example, if your host computer's IP address is 192.168.6.110, you need to enter 192.168.6.110:9999 in the browser
  1. Open FLY TOOLS. As shown in the image below, enable Klipper Screen, select the screen model, click the pink button at the bottom right Save Configuration, then restart the host computer to apply changes!
warning

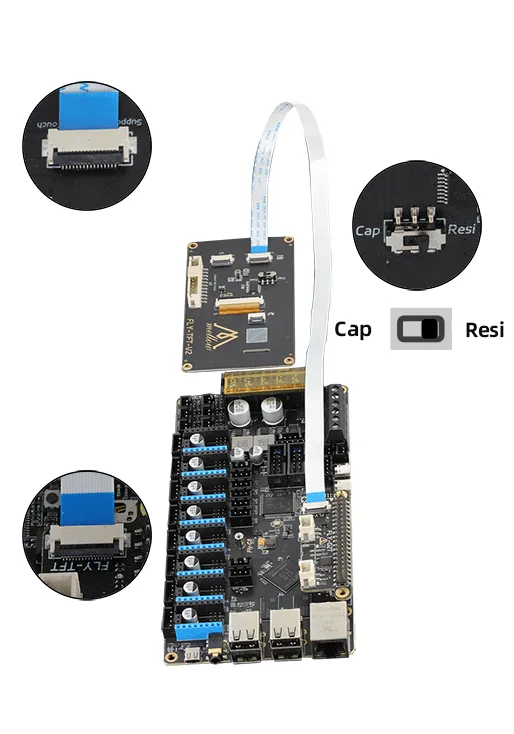

  • Resistive Screen select: fly-tft-v1 or fly-tft-v2-r, ensure the switch on the back of the screen is set to Resi

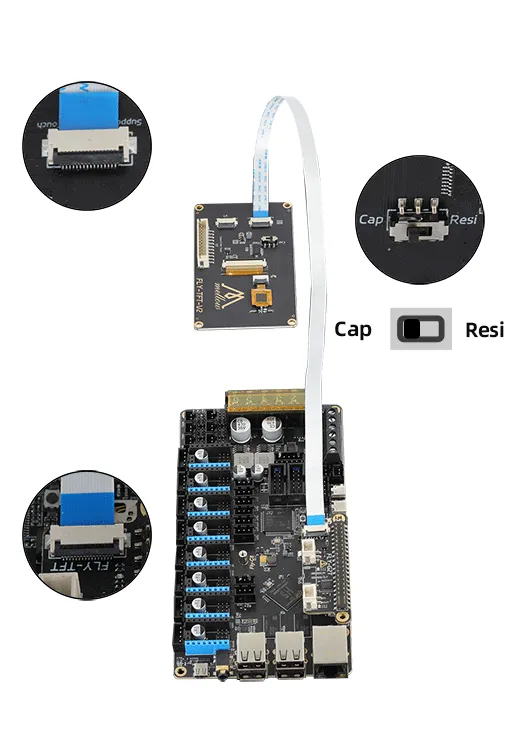

  • Capacitive Screen select: fly-tft-v2-c, ensure the switch on the back of the screen is set to Cap

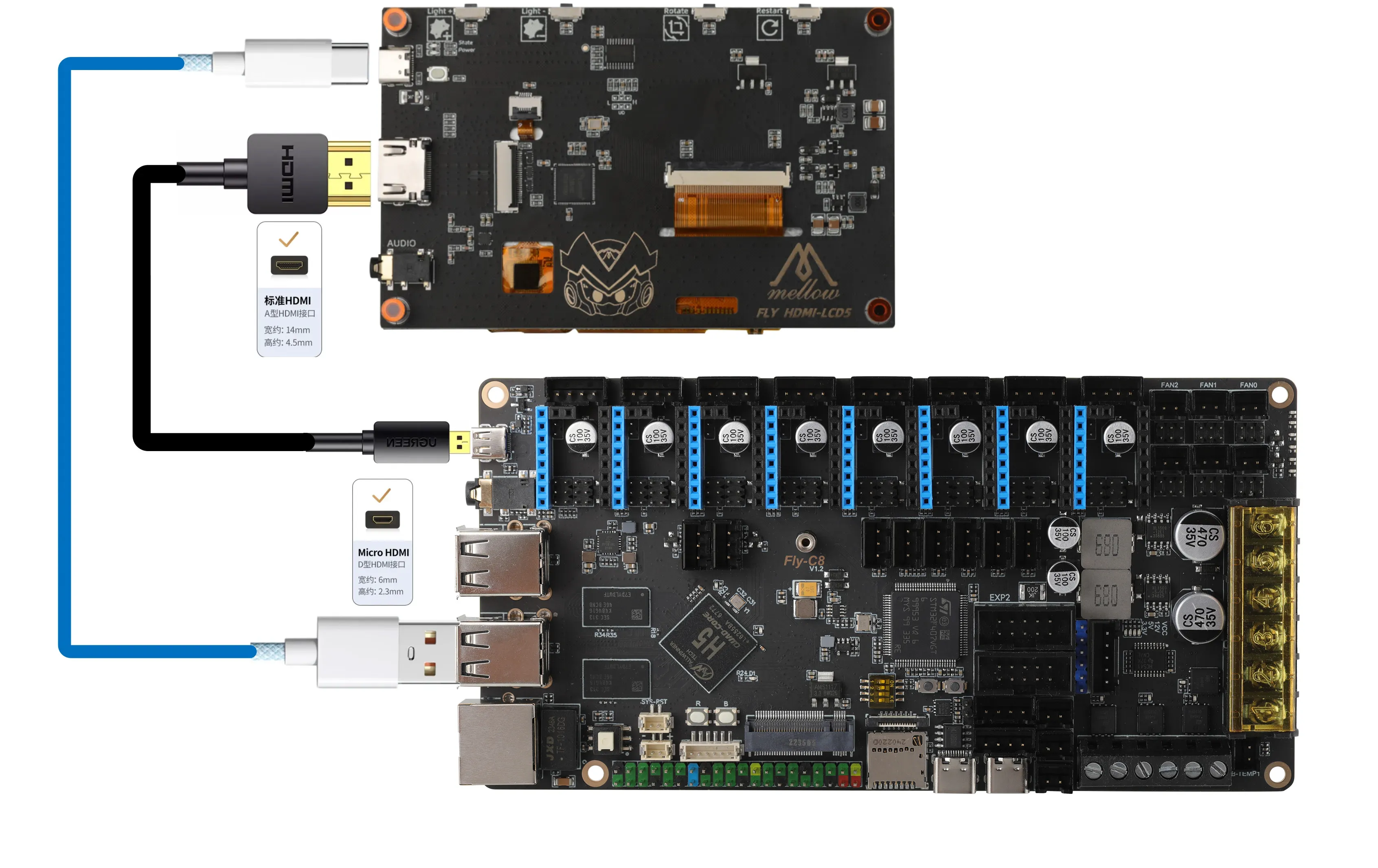

  • HDMI Screen select: hdmi
  • Resistive Screen:
  • Capacitive Screen, requires G2T:
  • HDMI Screen:
  1. After saving the configuration, restart the host computer to apply changes!
