Wiring Reference

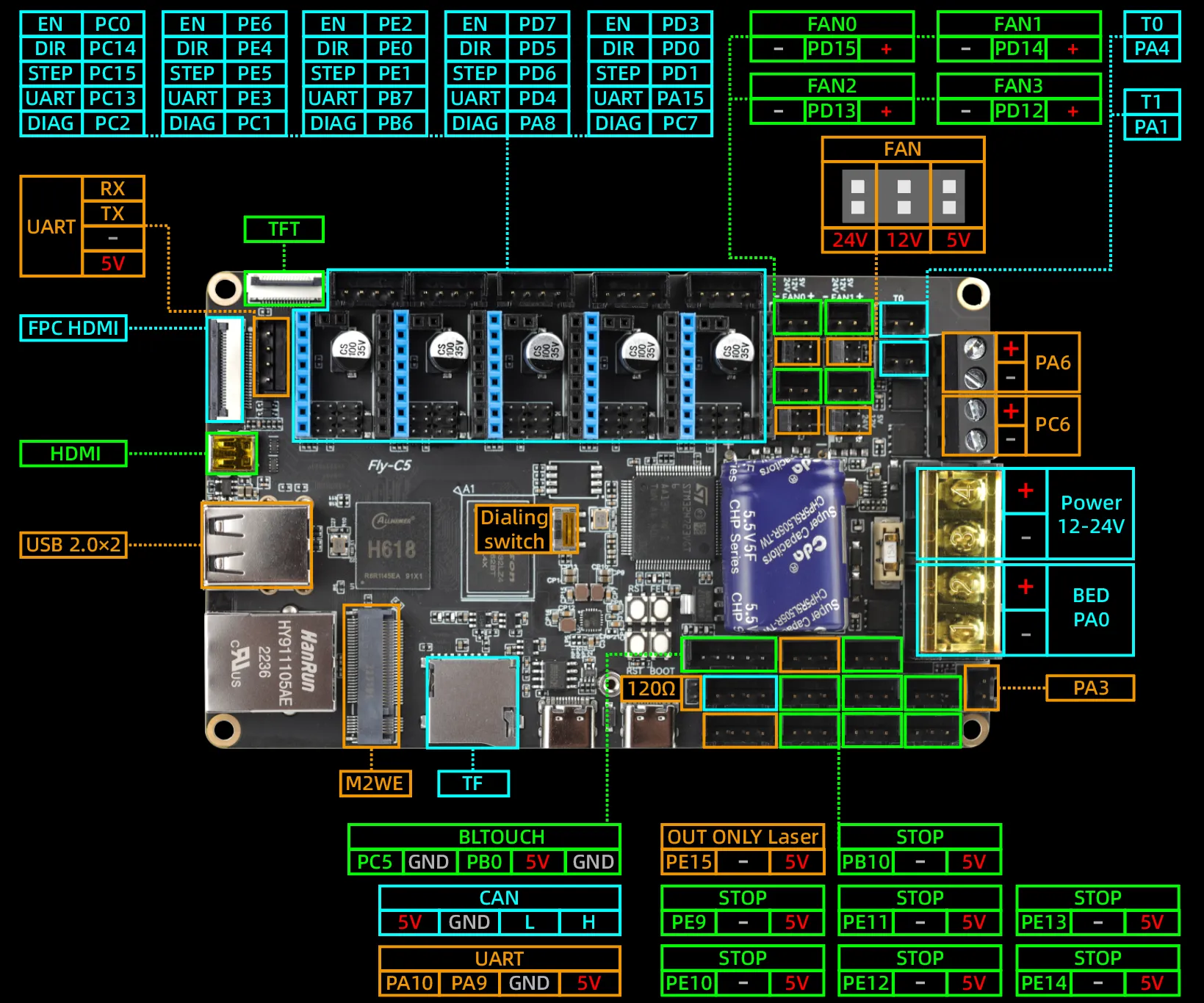

PIN Pinout

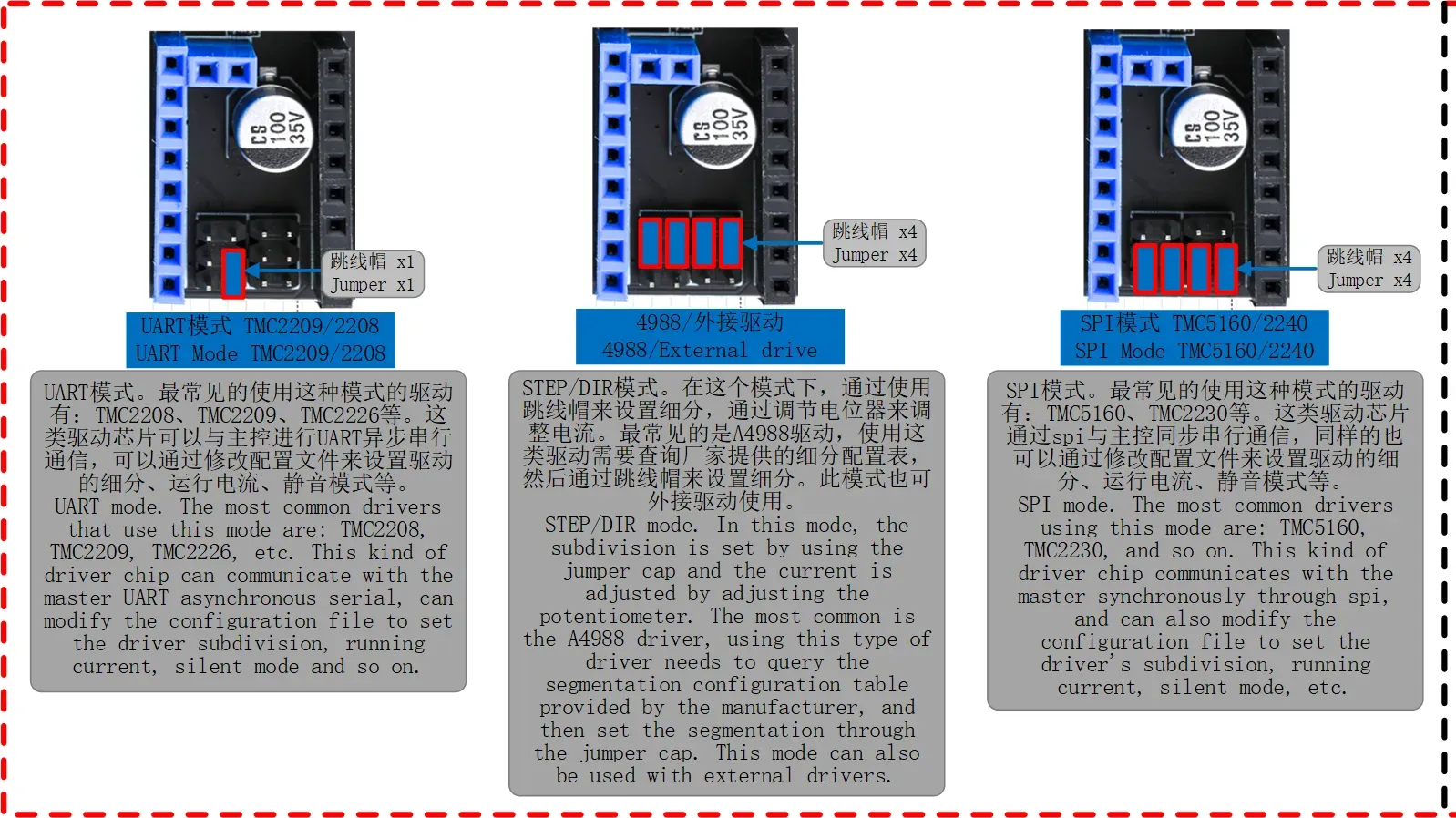

Motherboard Driver Jumper

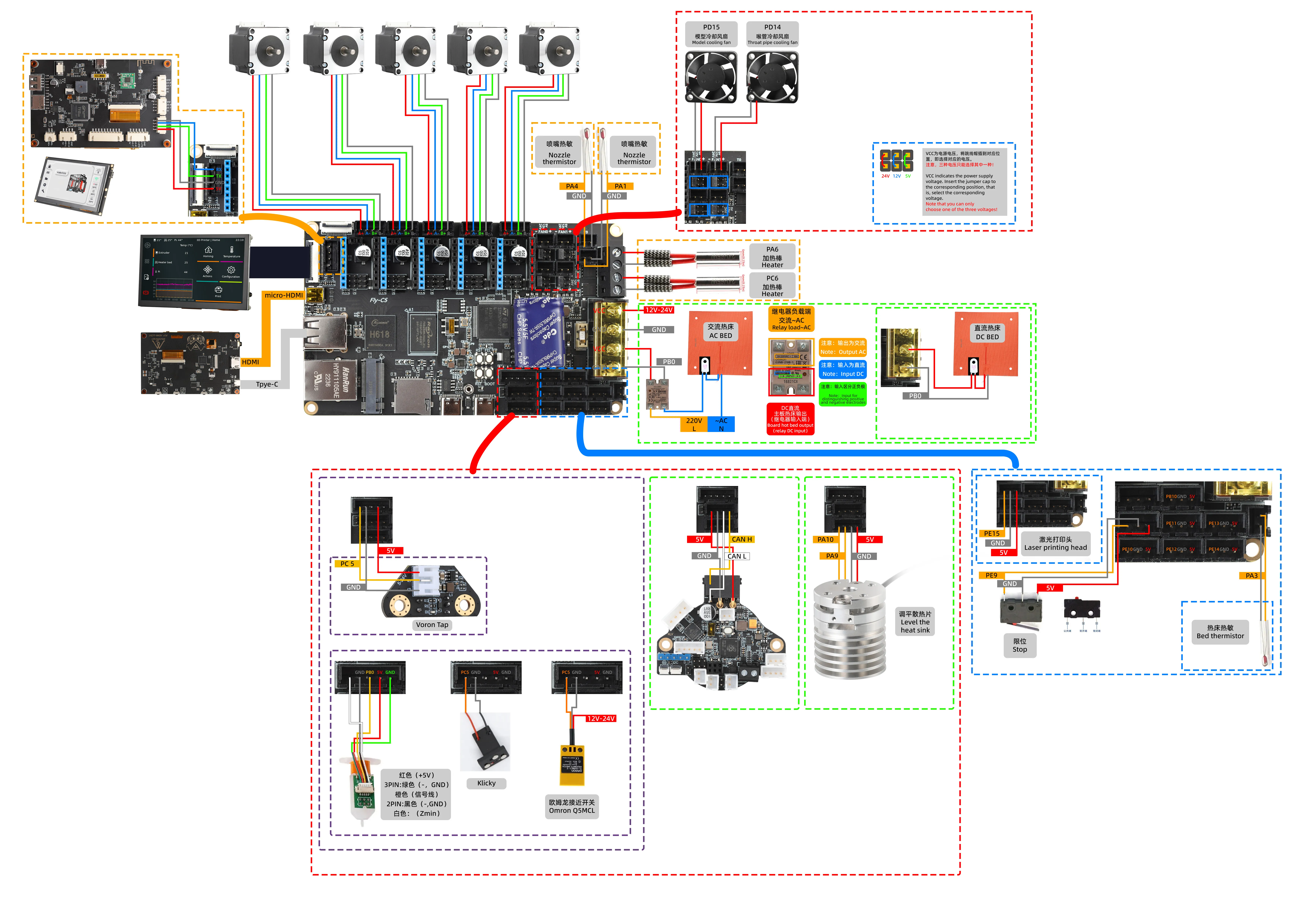

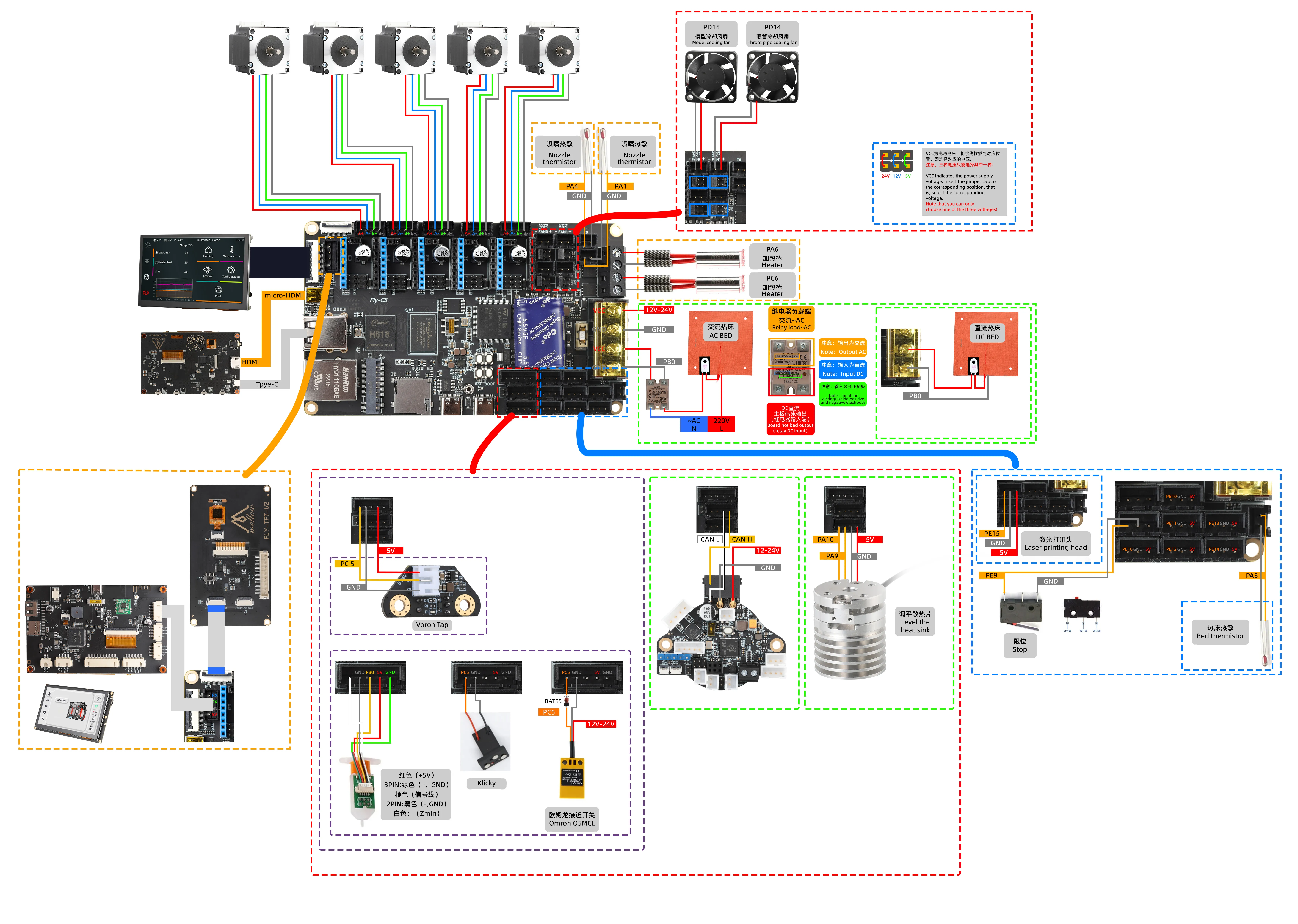

Main Board Wiring

Warning

Do not use purchased pre-made three-wire limit switches, as these types of limit switches may cause a short circuit on the main board, potentially damaging the motherboard! Please strictly follow the wiring method shown in the wiring diagram!

Tip
  • Due to the high resolution of the wiring diagram, users with slower internet connections may experience delays in loading. Please wait patiently ~~~ (≧∀≦)ゞ
  • It is recommended to place the mouse cursor over the wiring diagram, then right-click -> Save image as, saving the image to your desktop for easier viewing ~~~ σ(´∀`*)

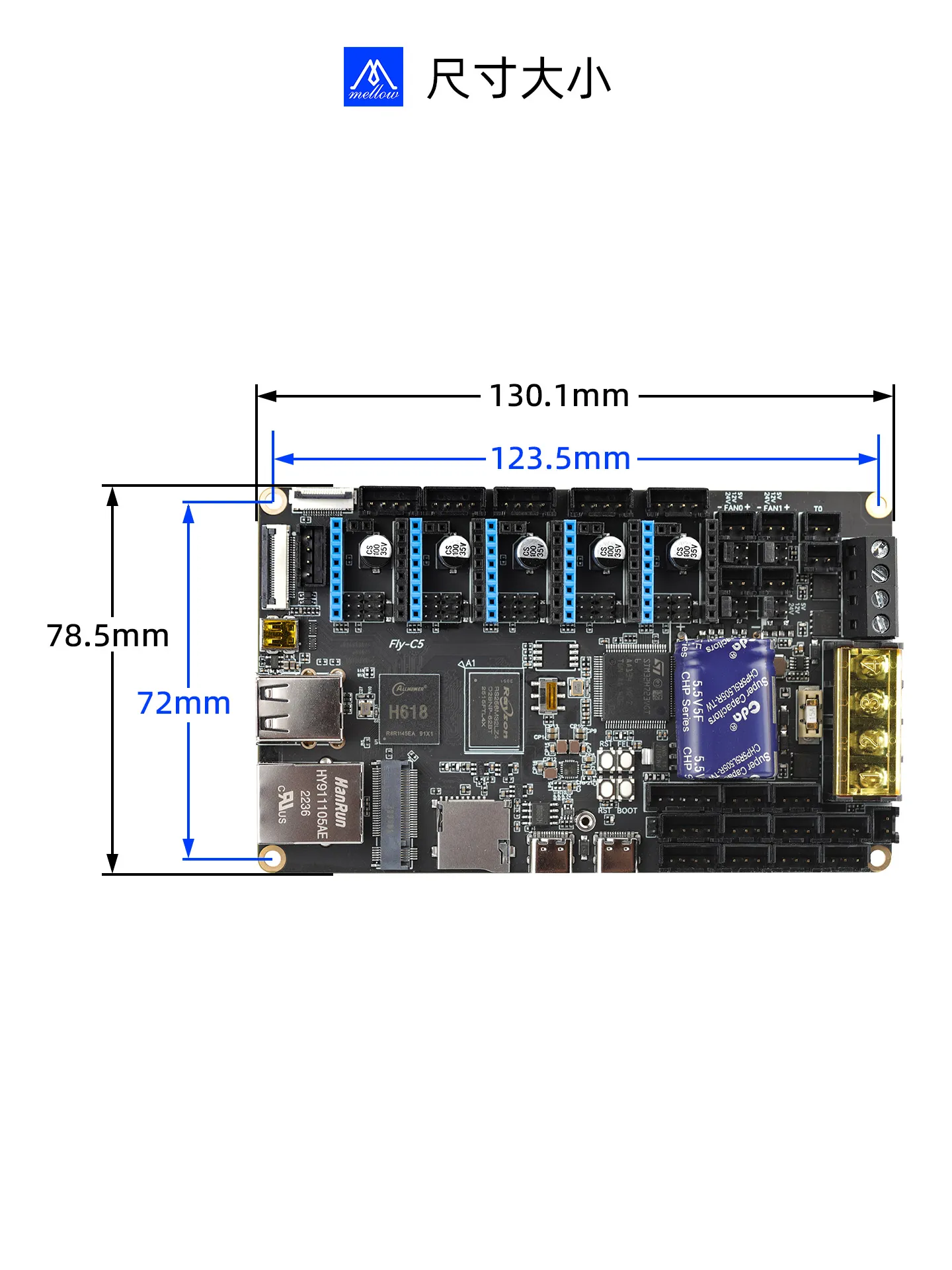

Dimension Diagram
