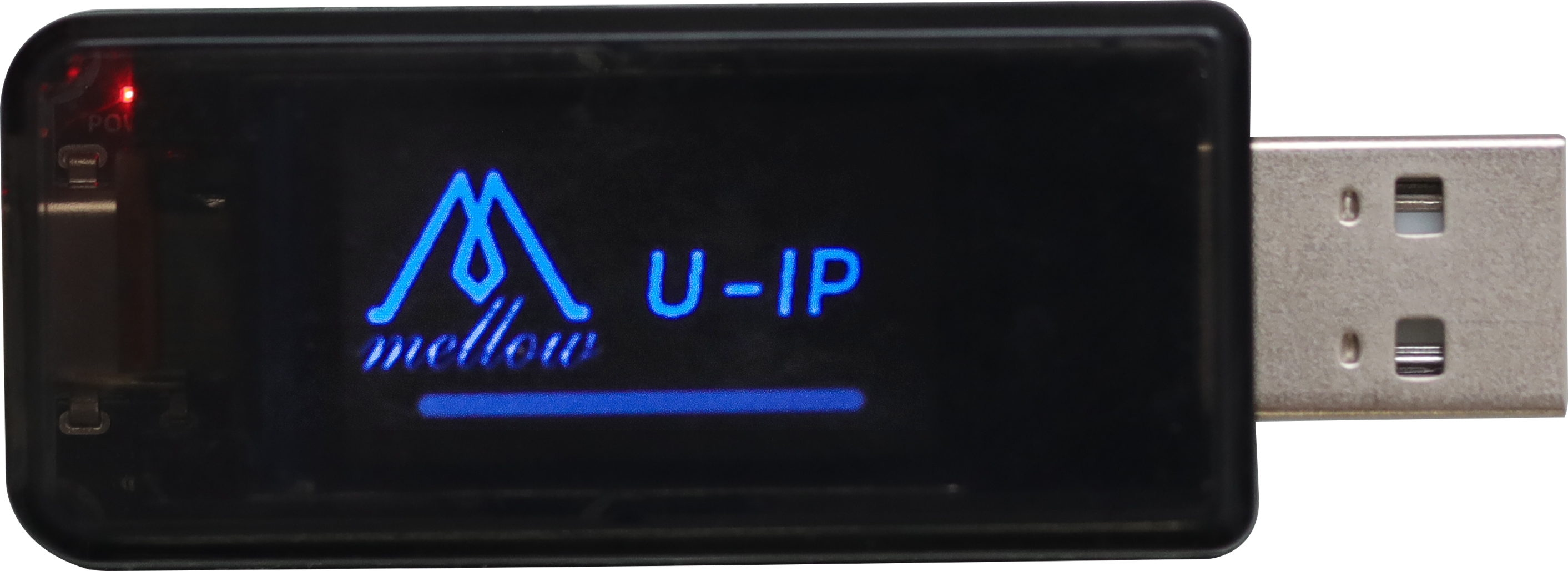

Boot Screen

First Screen

Notice
  • The system needs to support ECM or Rndis, otherwise it cannot be used normally
  • This product is designed specifically for Klipper and requires the Moonraker service to display the IP and resources; otherwise, you need to open the background and configure SSH mode to use it

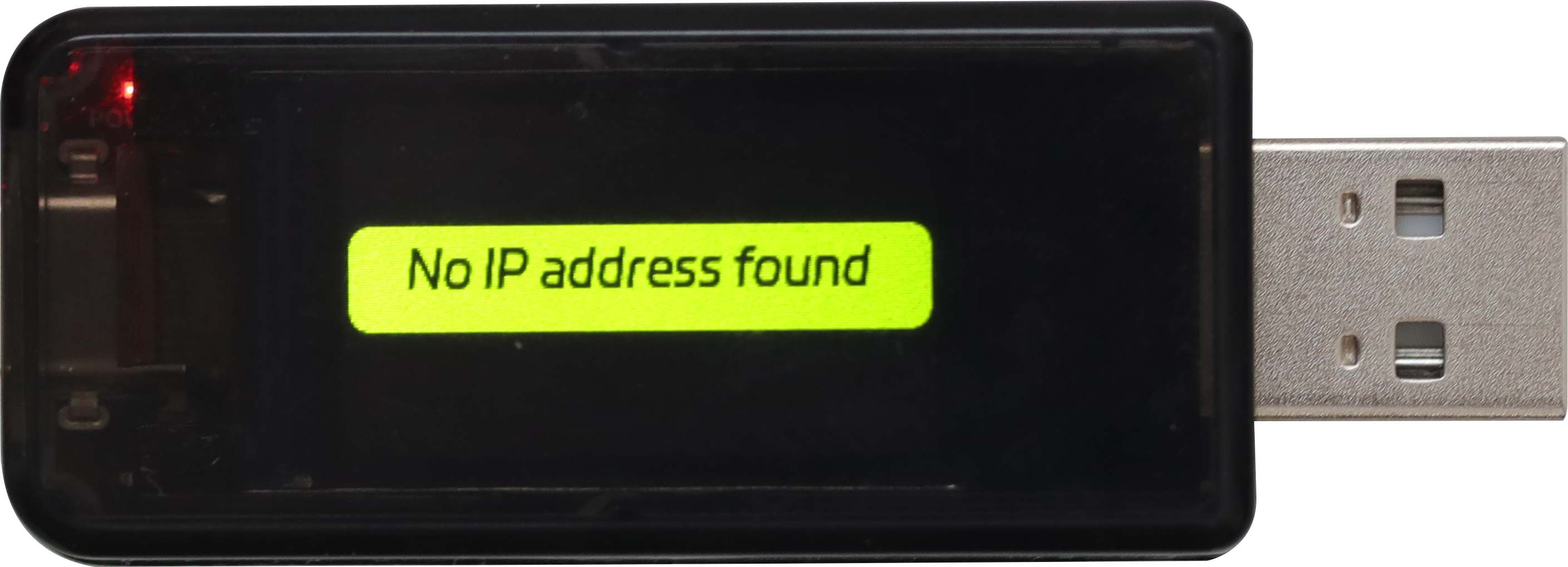

  • The IP display will show the information read from the connected machine; if the IP cannot be read or is not read, a prompt will appear

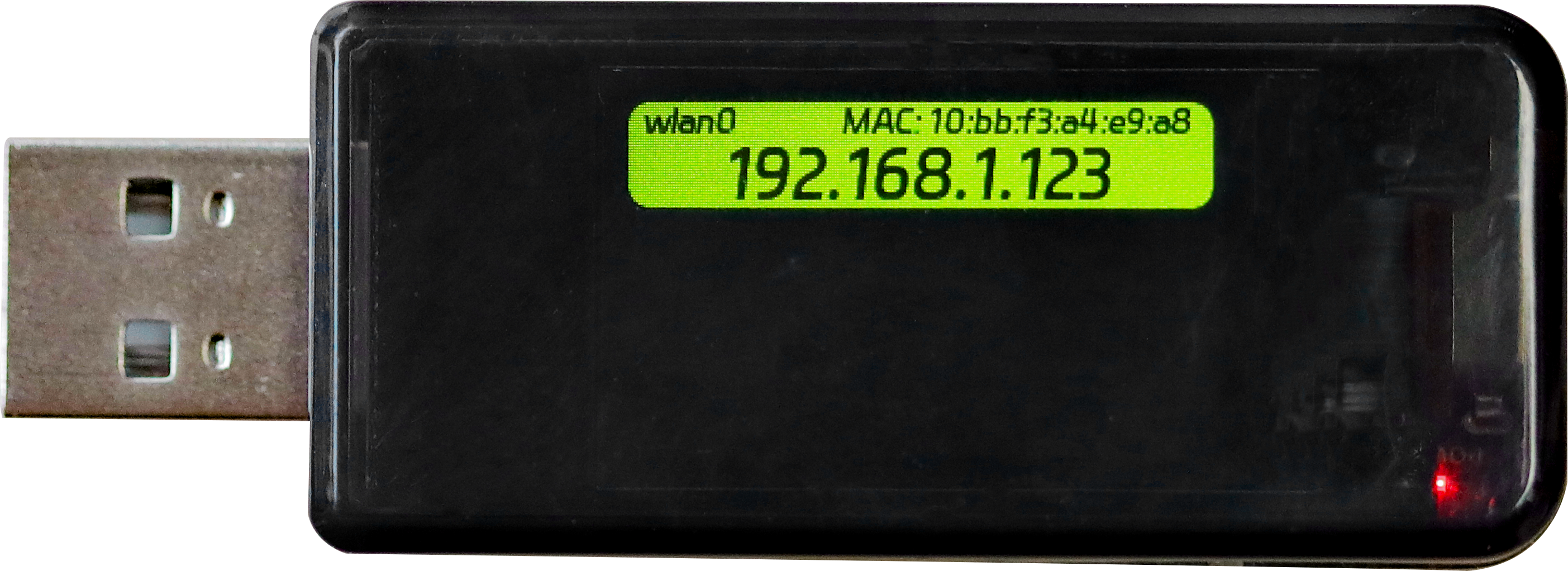

  • If read successfully, the following screen will appear (the IP is displayed according to the host machine)

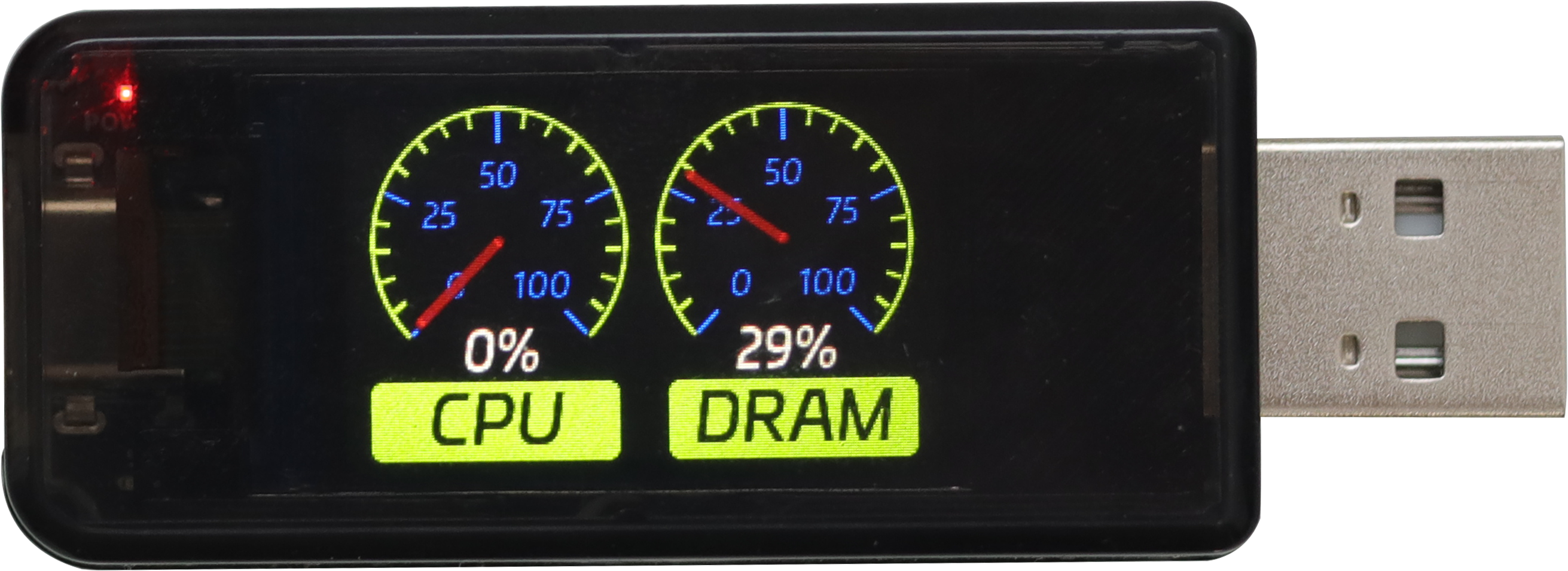

Second Screen

  • Displays the CPU and memory usage of the connected machine

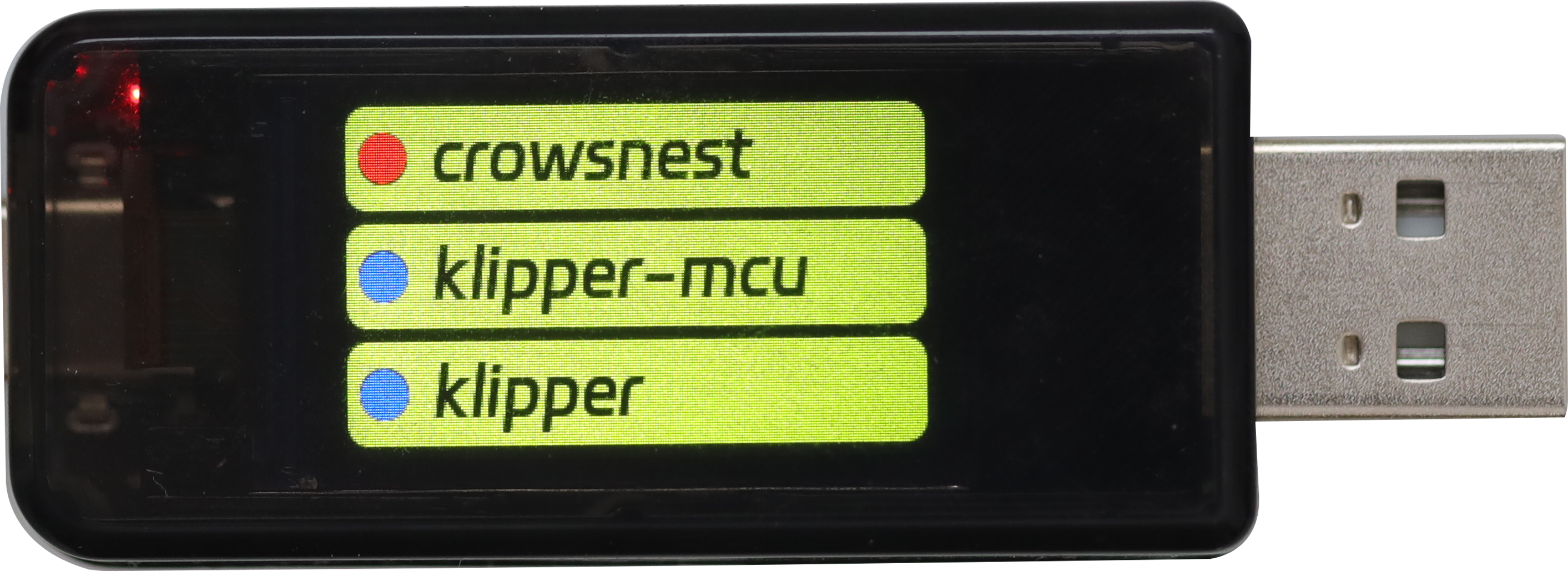

Third Screen

  • Displays the services started on the host machine; note that only services related to Klipper are shown
  • If not started, a red dot will appear before the service
  • If started, a blue dot will appear before the service
