RRF Configuration

info

• The following RRF configurations are provided in this document

Download RRF Configuration

• Loading...

Modify Configuration File

• Add

Pin Configuration

• Please note that the OUT_PIN and EN_PIN pins need to be modified according to the actual hardware setup

M558 P9 H1 F120 T8000 C"OUT_PIN"  A3 S0.02
G31 P500 X0 Y0 Z-0.1                         ; set Z probe trigger value, offset and trigger height
M557 X10:110 Y0:100 S20                      ; define mesh grid

M950 F2 C"EN_PIN" Q1000                      ; create fan 2 on pin fan2 and set its frequency
M106 P2 S0 H-1                               ; set fan 2 value. Thermostatic control is turned off

• Reference

Homing Configuration

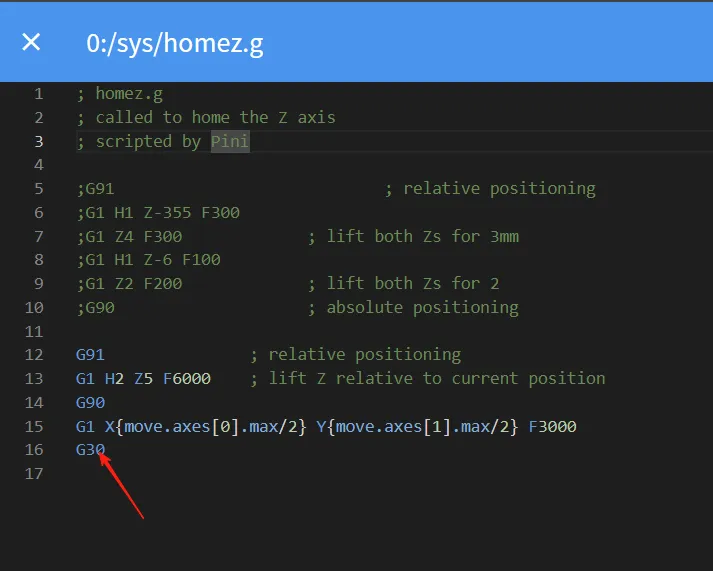

• Open homez.g and add the following at the bottom

  G30
