Marlin Configuration

info
  • This document provides the following
  • Marlin Configuration

Pin Configuration

  • Reference pin configuration
  • Please note that the following configuration methods can only be selected one at a time

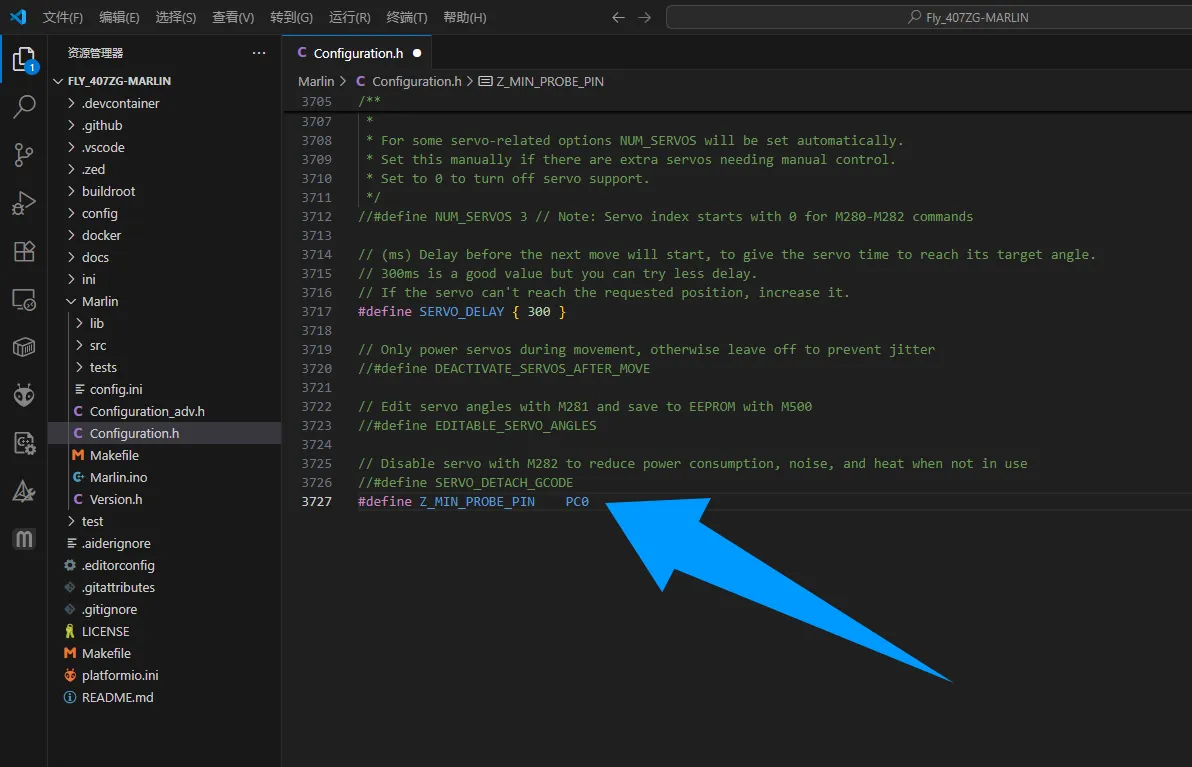

#define Z_MIN_PROBE_PIN    PC0
  • Add to the bottom or a place that does not affect other configurations in Configuration.h
  • Only one can be selected

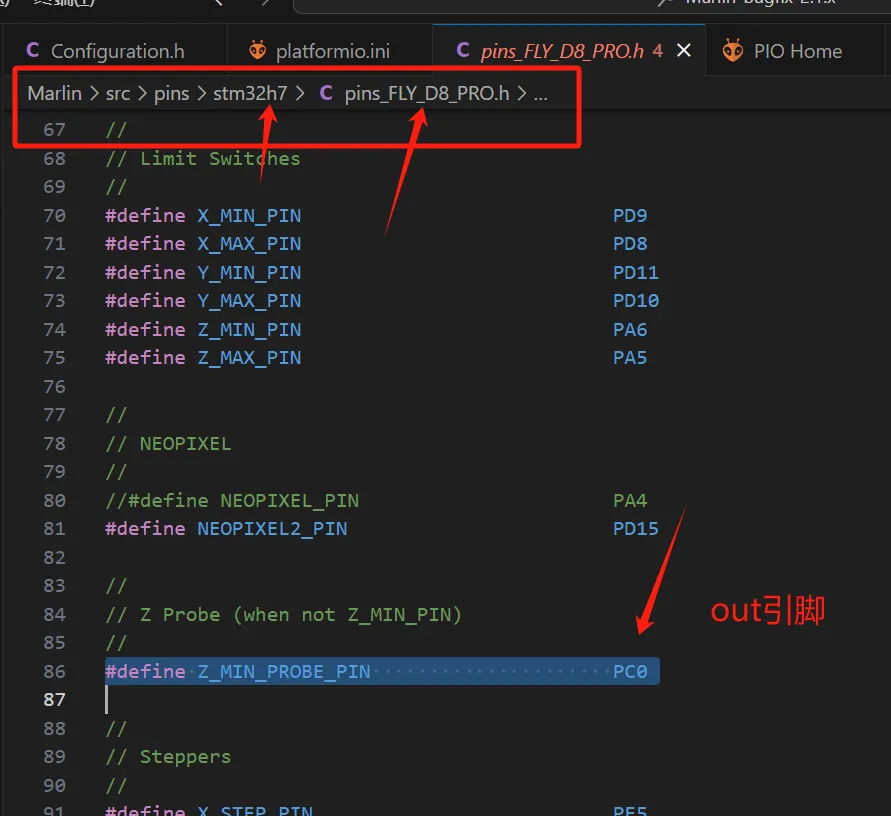

  • Main board pin configuration method
  • Only one can be selected

Setting Probe Pin

#define SOL1_PIN PA5

Probe Offset

  • Set probe offset
#define NOZZLE_TO_PROBE_OFFSET { 0, 0, 0 }

Safe Probing Margin

#define PROBING_MARGIN 10

Disable Software Endstops

// #define MIN_SOFTWARE_ENDSTOP_Z

Set Default Logic Level for Endstops

#define Z_MIN_ENDSTOP_HIT_STATE HIGH

Number of Probing Points

  • Set number of probing points
#define GRID_MAX_POINTS_X 3
#define GRID_MAX_POINTS_Y 3

Use Z_MIN Endstop Pin for Probe Signal

#define Z_MIN_PROBE_USES_Z_MIN_ENDSTOP_PIN

Use Probe for Z Homing

#define USE_PROBE_FOR_Z_HOMING

Enable Safe Homing to Center

#define Z_SAFE_HOMING

Set Bed Leveling Type (Grid)

#define AUTO_BED_LEVELING_BILINEAR

Enable EEPROM Settings

#define EEPROM_SETTINGS

Enable Solenoid Probe

#define SOLENOID_PROBE

Automatically Apply Leveling Data After Homing

#defne RESTORE LEVELING AFTER G28

Slicer Software Settings

  • If you need to re-level before each print job, add the following commands to the start Gcode in your slicer software:
G28;
G29;
