Endstop Related

Microswitch Endstop

Three-Wire Microswitch Notes

Note
  • FLY Motherboard Users Please Note: Three-wire microswitch endstop switches cannot be directly connected to the FLY motherboard, as the endstop interface on the motherboard already provides a 5V power supply. Direct connection will cause a 5V short circuit, potentially damaging the motherboard, host computer, drivers, and other equipment!
  • Solution
    • Cut the 5V wire: Cut the 5V wire (usually red, but please confirm by actual color) in the XH2.54 terminal of the three-wire endstop switch, and wrap it with insulating tape to prevent short circuits.

Microswitch Wiring Method

Notes
  • Strongly Recommended: Use the normally closed (NC) contact (to prevent crashes in case of disconnection)
  • Wiring Requirements:
Motherboard TerminalFunctionConnection Requirement
5VPower🔌 Leave unconnected
GNDGround✅ Must be connected
SSignal✅ Must be connected
  • Testing Steps:
  1. Set multimeter to continuity test mode (beep icon)

  2. Test microswitch:

    • Not Pressed: Continuity between NC and common terminal (beeper sounds)
    • Pressed: Open circuit between NC and common terminal (no sound)
  3. If results are reversed:

    • Check if normally open (NO) contact was mistakenly used
    • Check for poor contact

Configuration Instructions

  • Pull-up Resistor Requirement:

    • Most printers require enabling the pull-up resistor, which requires adding the ^ symbol before the pin name
  • Normally Closed (NC) Endstop Configuration:

    • When using a normally closed (NC) endstop, add the ! symbol
  • Below is a sample configuration

    [stepper_x]
    endstop_pin: ^!PD9

TAP

Wiring Instructions

Note
  • This tutorial demonstrates using the BL-Touch interface on the SHT36-V2
  • Some TAP devices support 12V or 24V, but it is recommended to use 5V for safety
  • The center signal pin of the BL-Touch cannot be used as an endstop pin!!!
Motherboard TerminalFunctionConnection Requirement
5VPower✅ Must be connected
GNDGround✅ Must be connected
SSignal✅ Must be connected

Sample Configuration

  • Pull-up Resistor Requirement:
  • Most printers require enabling the pull-up resistor, which requires adding the ^ symbol before the pin name
[stepper_z]
endstop_pin: probe:z_virtual_endstop
# position_endstop: -0.5

[probe]
pin: ^sht36:PC15 # Signal interface
x_offset: 0 # X-axis - Offset from nozzle
y_offset: 0 # Y-axis - Offset from nozzle
#z_offset: 0 # Z-axis - Offset from nozzle
speed: 3.0 # Leveling speed
lift_speed: 5 # Probe lifting speed
samples: 3 # Number of samples
samples_result: median # Value selection method (median by default)
sample_retract_dist: 3.0 # Retract distance during leveling
samples_tolerance: 0.075 # Sampling tolerance (Note: too small a value may increase sampling count)
samples_tolerance_retries: 3 # Retries when exceeding tolerance
activate_gcode:
{% set PROBE_TEMP = 150 %}
{% set MAX_TEMP = PROBE_TEMP + 5 %}
{% set ACTUAL_TEMP = printer.extruder.temperature %}
{% set TARGET_TEMP = printer.extruder.target %}

{% if TARGET_TEMP > PROBE_TEMP %}
{ action_respond_info('Extruder temperature target of %.1fC is too high, lowering to %.1fC' % (TARGET_TEMP, PROBE_TEMP)) }
M106 S255
M109 S{ PROBE_TEMP }
M106 S26
{% else %}
# Temperature target is already low enough, but nozzle may still be too hot.
{% if ACTUAL_TEMP > MAX_TEMP %}
{ action_respond_info('Extruder temperature %.1fC is still too high, waiting until below %.1fC' % (ACTUAL_TEMP, MAX_TEMP)) }
TEMPERATURE_WAIT SENSOR=extruder MAXIMUM={ MAX_TEMP }
{% endif %}
{% endif %}

Optical Endstop

Note
  • This tutorial uses the EE-SX670WR
  • Sensor Type: NPN Normally Closed Switch
  • Power the photoelectric switch with 5V
  • For voltages exceeding 5V, refer to the proximity switch tutorial below for 12V or 24V usage

Wiring Instructions

Motherboard TerminalFunctionConnection Requirement
5VPower✅ Must be connected
GNDGround✅ Must be connected
SSignal✅ Must be connected

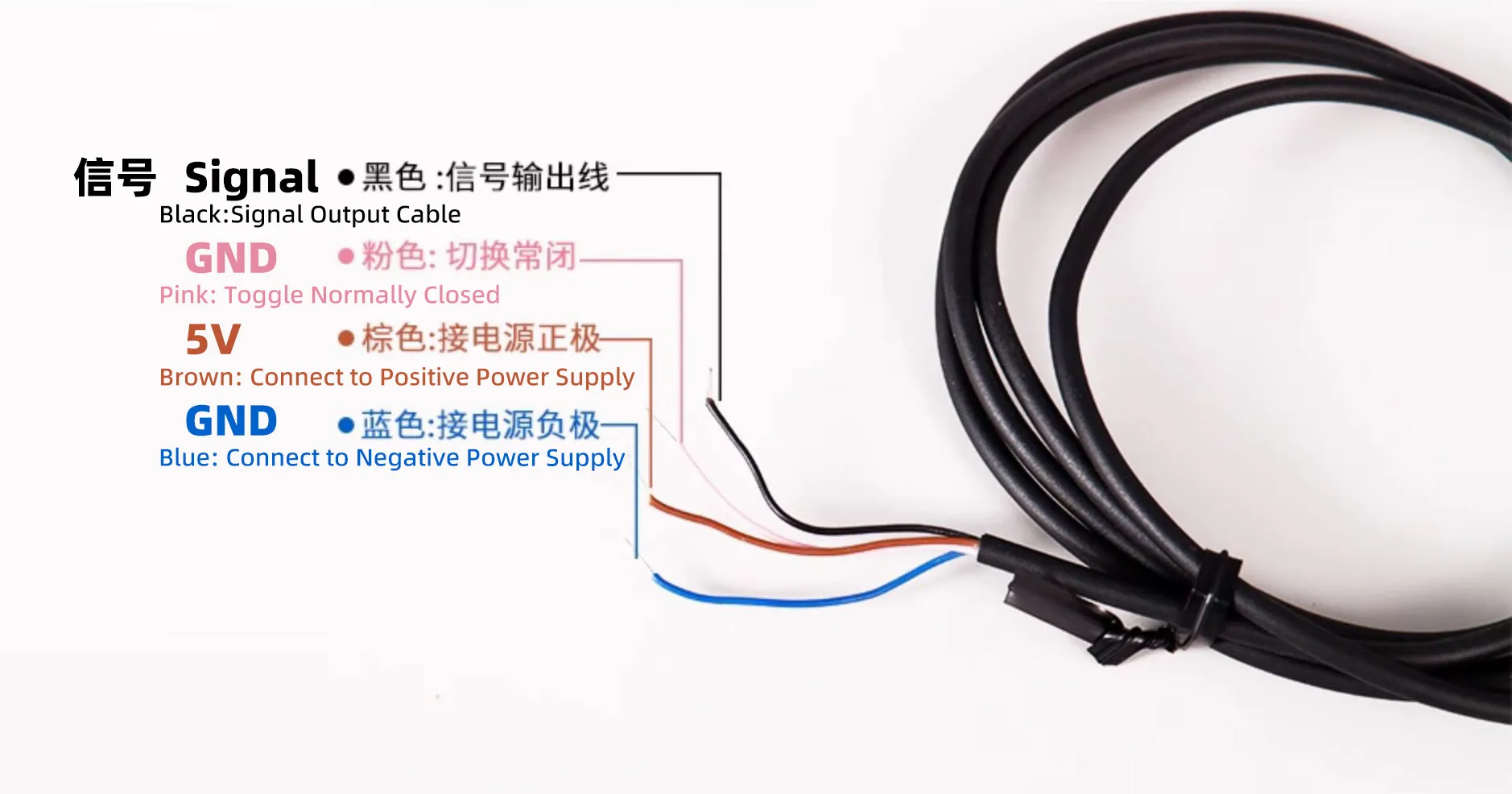

  • EE-SX670WR wiring instructions

  • It is recommended to connect the normally closed terminal to the blue wire (GND)!

    Photoelectric SwitchFunctionConnection Requirement
    BrownPower✅ Must be connected
    BlueGround✅ Must be connected
    BlackSignal✅ Must be connected
    PinkNormally ClosedUse with GND connected

Configuration Instructions

  • Pull-up Resistor Requirement:

  • Most printers require enabling the pull-up resistor, which requires adding the ^ symbol before the pin name

  • Below is a sample configuration

[stepper_x]
endstop_pin: ^PD9

Proximity Switch

Important Note
  • Using Omron proximity switch TL-Q5MC2-Z as an example, please note before operation:
  • Sensor Type: NPN Normally Closed Switch
  • Required Component: You need to purchase a BAT85 diode separately

Wiring Steps

  1. Diode Installation
  • Connect the black end of the diode (cathode) to the sensor signal wire
  • Connect the other end (anode) to the motherboard signal interface
  1. Insulation Treatment
  • It is strongly recommended to cover exposed wire ends with heat shrink tubing or electrical tape to prevent short circuits with other devices

Sample Configuration

  • Pull-up Resistor Requirement:
  • Most printers require enabling the pull-up resistor, which requires adding the ^ symbol before the pin name
  • Below is a sample configuration
[probe]
pin: ^PC0
x_offset: 0
y_offset: 25.0
z_offset: 0

Endstop Status Check

Preparation

  • Prepare and perform initial inspection
  • With the power safely disconnected, manually move the print head to the center of the machine before powering on.
  • Open the web console and enter the following command to verify the endstop status:
QUERY_ENDSTOPS
  • If wiring and configuration are correct, all endstops should show as open status.

Testing

  • Press and hold one of the endstops (do not release), then execute the following command again:
QUERY_ENDSTOPS
  • At this point, the pressed endstop status should change to TRIGGERED (for example, pressing the Y endstop should change its status from OPEN to TRIGGERED).

Result Interpretation

  • Status Unchanged: Check if the wiring and the Pin defined in the configuration are correct.
  • Unresponsive Trigger: Check if the Pin in the configuration has the ^ symbol (e.g., ^PC0), which enables pull-up. Missing it may cause triggering issues.
  • Opposite Status:
    • If such a symbol exists, remove it (e.g., change ^!PD9 to ^PD9).
    • If not, try adding it (e.g., change ^PD9 to ^!PD9).
