Configuration Modification Notes

Error Examples

Not Completely Removing Spaces

• Not completely removing spaces
  Loading...

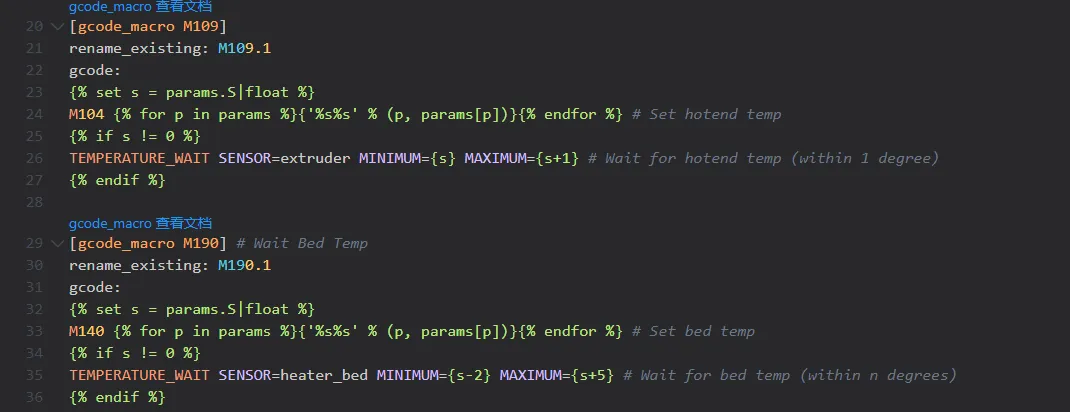

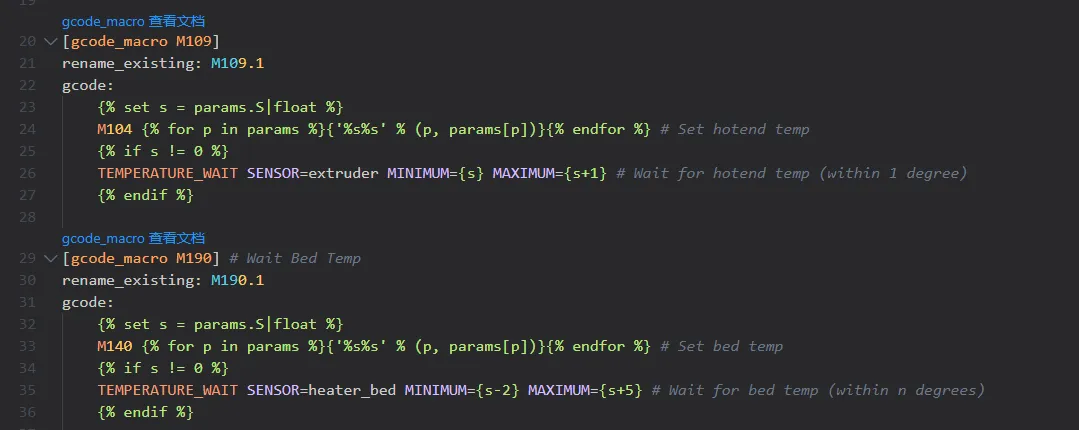

• Note that if it is [gcode_macro XXXX], it is a different case
• Example

  Error Example Loading...

  Correct Example Loading...

Errors in Disabling or Enabling Configuration

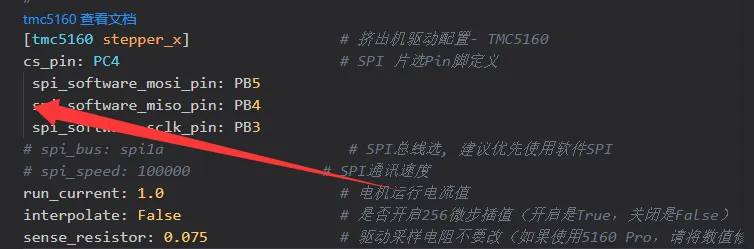

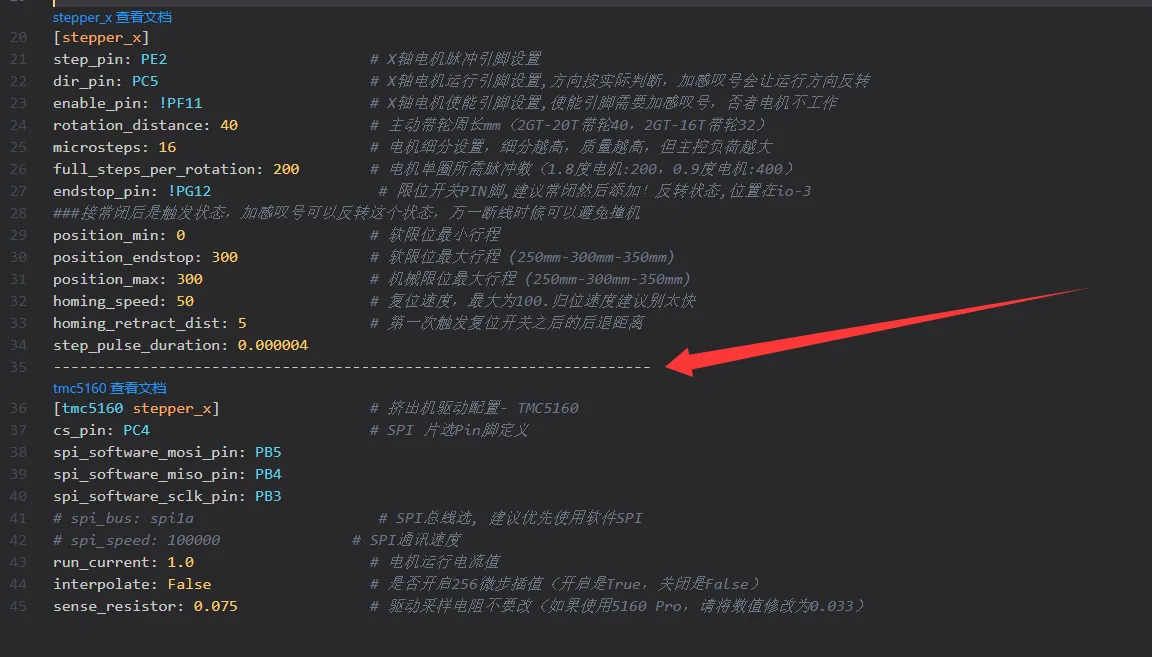

• Error Example 1:
  • There are redundant configurations or configurations that should not exist
  • Solution: Delete the erroneous configuration
    Loading...

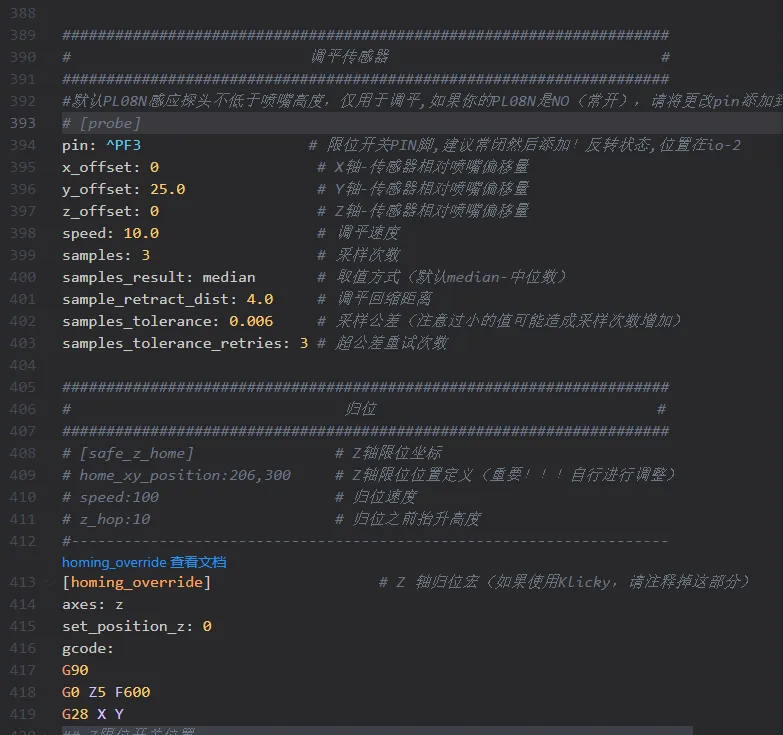

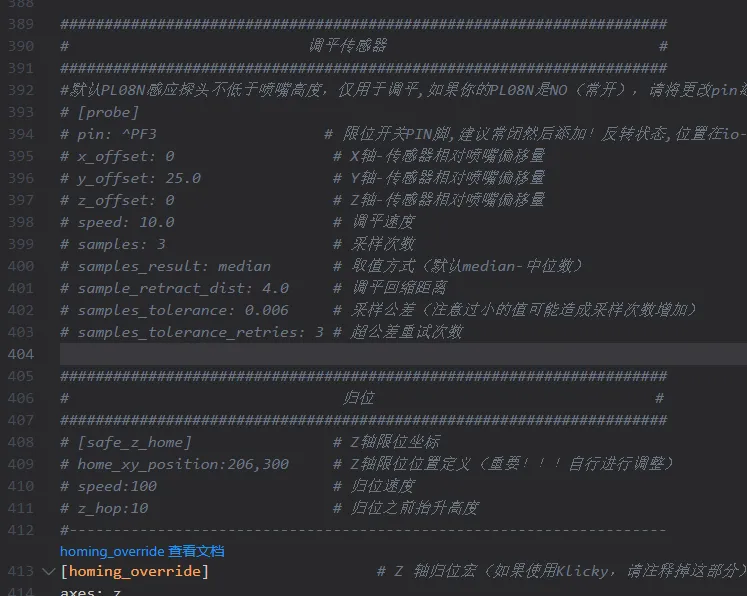

• Error Example 2:
  • The configuration is not completely disabled
  • Simply disabling [probe] is ineffective; all configurations up to the next [xxxx] need to be disabled or deleted
  • The [xxxx] in the image below is [homing_override]

  Error Example Loading...

  Correct Example Loading...
