EDDY Sensor Common Issue Resolution Guide

Issue One: Error Error during homing z: Eddy current sensor error during homing​

If you encounter this error, please try the following methods in order:

Method A: Adjust Drive Current

  1. Open the printer.cfg file.

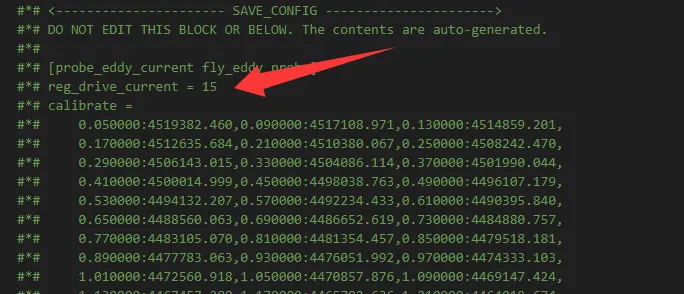

  2. Find the reg_drive_current = parameter near the end of the configuration.
  3. Increase or decrease its current value by 1 (e.g., if it's 15, change it to 16 or 14).
  4. Important: Enter the calculated result directly (e.g., 16), do not enter an expression (e.g., 15+1).
  5. Save the file and restart the printer, then retest homing.
Loading...

Method B: Adjust Probe Offset If Method A is ineffective:

  1. In printer.cfg, find the [probe_eddy_current fly_eddy_probe] configuration section.

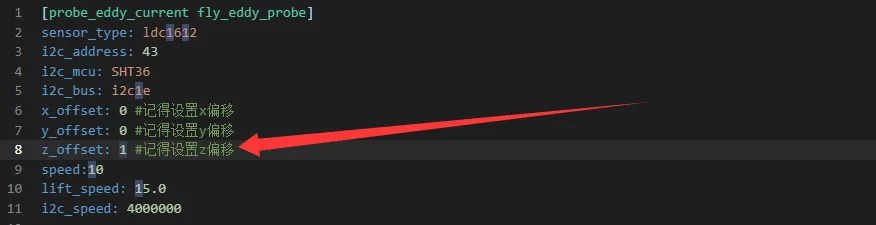

  2. Increase the z_offset: value there (default is 1.0, try 2.0 or 2.5 first).
  3. Crucial Notes:
    • This parameter must only be configured once in this section. Do not configure it elsewhere.
    • It's recommended not to exceed 3.0. The specific value depends on your machine's hardware.
  4. Save and restart the printer, then test.
Loading...

Method C: Reduce I2C Communication Speed If Method B is still ineffective:

  1. In the same [probe_eddy_current fly_eddy_probe] section, find the line i2c_speed: 4000000.

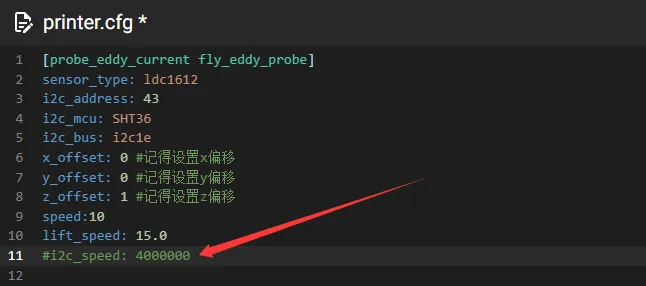

  2. Comment it out by adding a # at the beginning of the line (change it to #i2c_speed: 4000000).
  3. Save and restart. After restarting, it is strongly recommended to perform a probe calibration again.
Loading...
  1. Additional Step: If homing succeeds but your set z_offset value is greater than 2.0, you need to also modify the corresponding parameter in the eddypz.cfg file.
Loading...

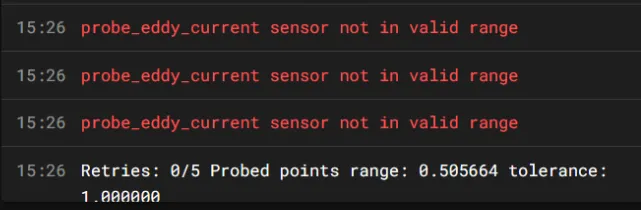

Issue Two: Prompt !! probe_eddy_current sensor not in valid range​

This error indicates the probe reading is outside the valid range.

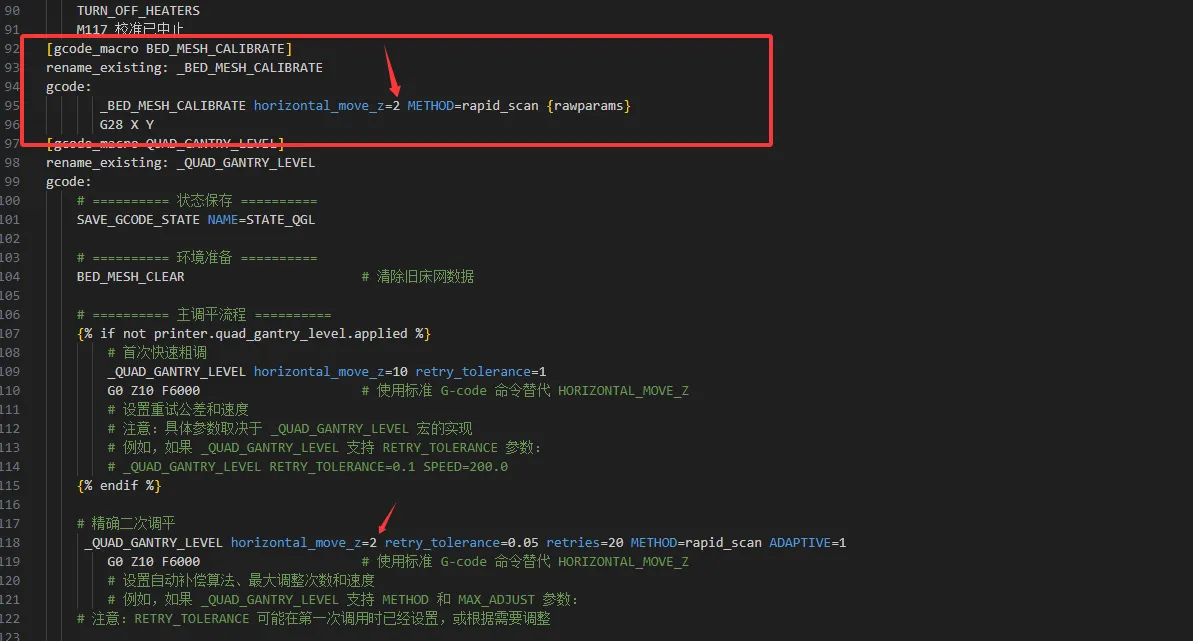

  • Main Cause: After enabling the EDDY probe, the probing heights set elsewhere (e.g., in the [Horizontal_move_Z] or [bed_mesh] modules) might not take effect, causing the probe to move beyond its physical range.
  • Solution: Check and ensure that all configuration heights involving probe deployment are within the sensor's valid range.
Loading...

The final section ("General Configuration Suggestion") has been modified as requested, emphasizing its empirical and non-universal nature, along with the correct operational approach.

Important Reminders​

  • Empirical Reference for z_offset Value: Based on numerous cases we've handled, setting the initial z_offset value in [probe_eddy_current fly_eddy_probe] to 2.5 often allows many EDDY sensors to become operational relatively quickly. You can use this as an efficient debugging starting point.
  • Important Clarification: This is not a universal fixed value nor an official default configuration. The optimal probe offset strictly depends on your specific machine hardware (e.g., probe mounting position).
  • Core Principle: The steps provided in this document are a path to help you troubleshoot and resolve issues. The ultimate goal is to obtain accurate configuration parameters for your own machine through systematic calibration.
