如何调整模块触发值

打开调平模块

Klipper控制台发送SET_PIN PIN=_probe_ready VALUE=1,观察触发指示灯,调整阈值由小到大至指示灯不亮。输入下面命令:

SET_PIN PIN=_probe_ready VALUE=1

调整压力值

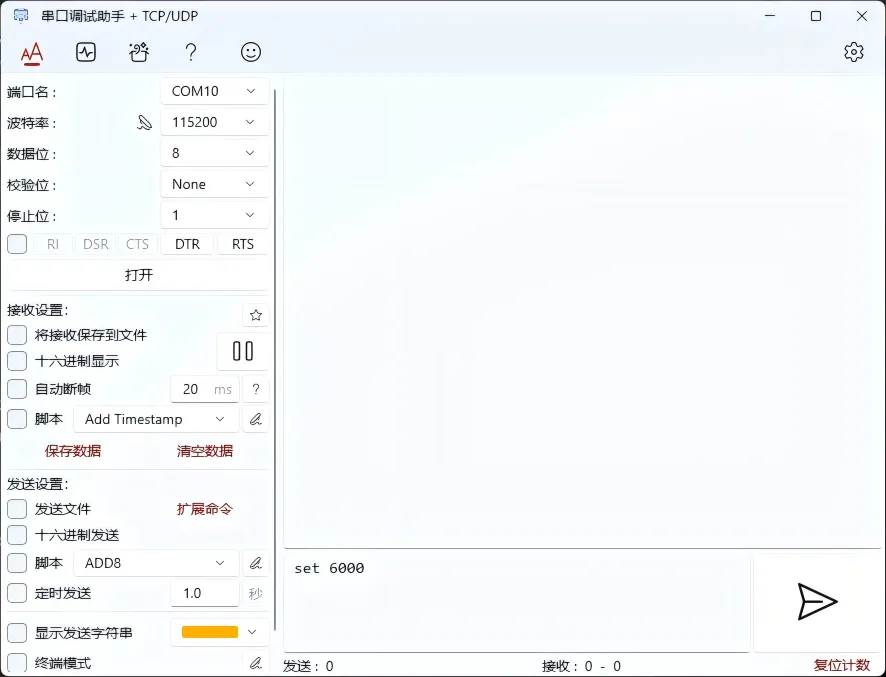

串口工具助手获取

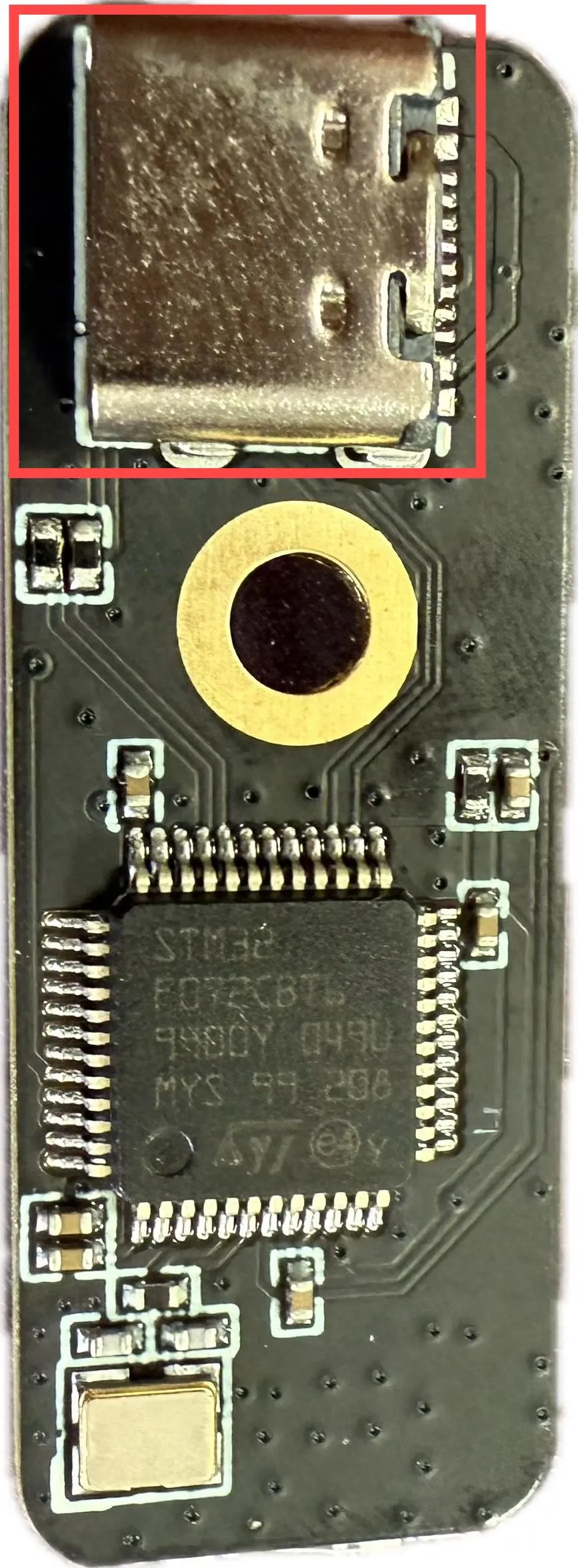

  • 使用usb数据线连接模块跟电脑,打开串口工具助手,选择对应的端口号,波特率115200,点击连接。

串口工具输入下面命令调整触发值:

set 触发值

默认触发值:20000 数值越小越灵敏,数值越大越不灵敏。

  • 例如:set 20000,设置触发值为20000,数值越小越灵敏,数值越大越不灵敏。

  • 串口工具使用命令:

  • 串口发送v,实时输出abc值。a:滤波前;b:滤波后。

  • 串口发送uv,关闭输出。

  • 串口发送 rt,查看当前阈值。
